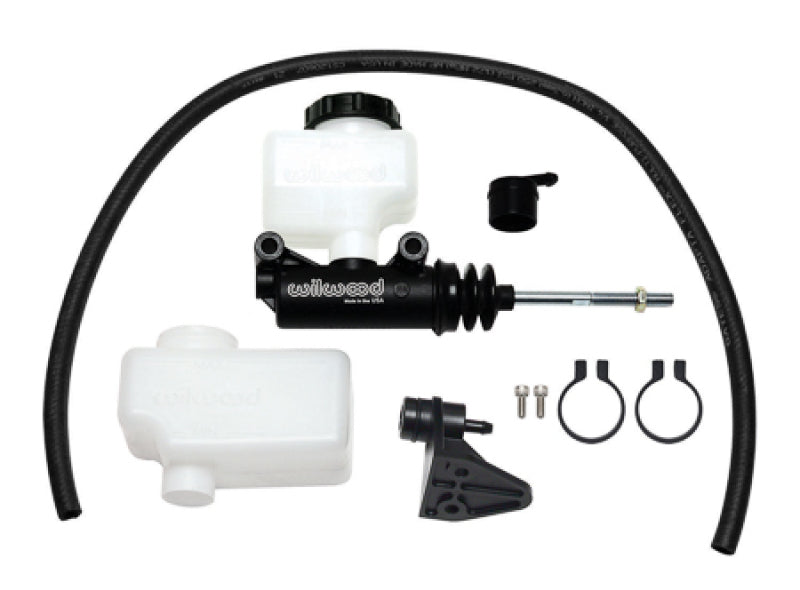

Wilwood 260-14793 COMPACT Remote M/C Kit SIDE MT 15/16in.

Wilwood 260-14793 Wilwood COMPACT Remote M/C Kit SIDE MT 15/16in.

Brand : Wilwood

MPN : 260-14793

AlternatePartNumber : wil260-14793

UPC : 889545082838

Product Department : Brakes, Rotors & Pads

Product Category : Brake Master Cylinder

BoxQuantity : 1

Length : 13.0 inches

Width : 10.56 inches

Height : 3.0 inches

Weight : 1.95 lbs

This new version of Wilwood's Compact Combination (Side Mount) Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3.00” center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
