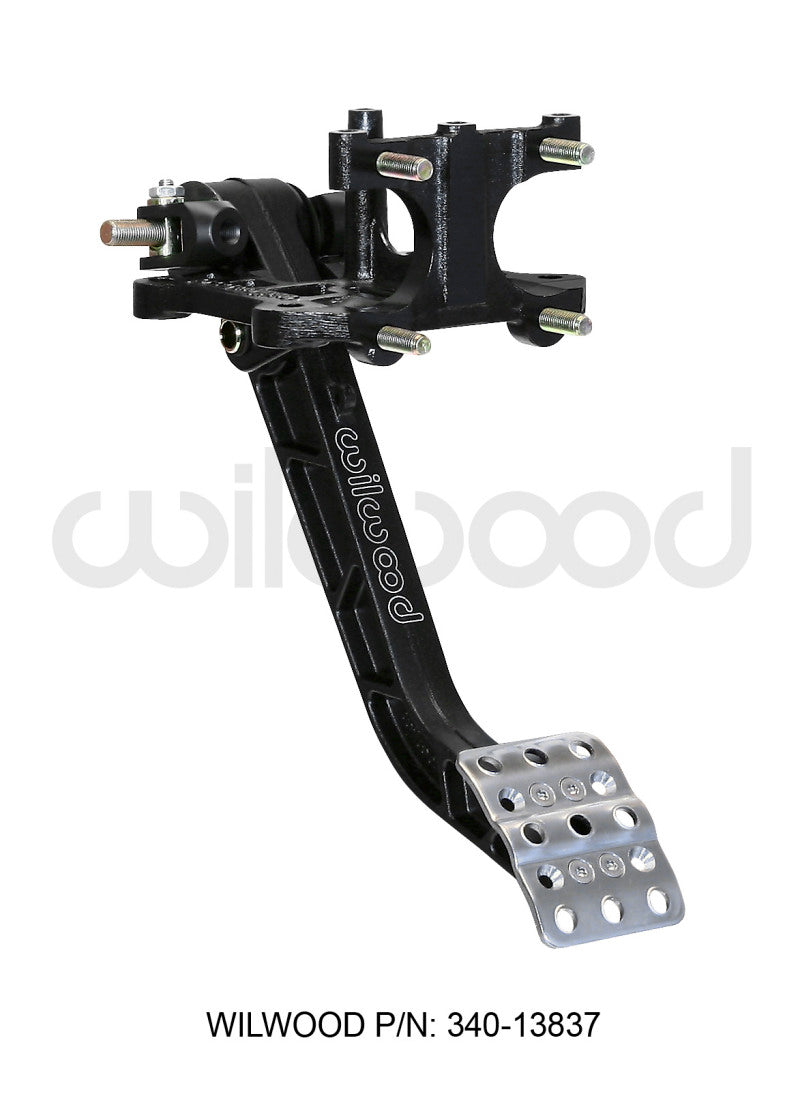

Wilwood 340-13837 Adjustable Brake Pedal - Rev. Swing Mount - 5.1:1

Wilwood 340-13837 Wilwood Adjustable Brake Pedal - Rev. Swing Mount - 5.1:1

Brand : Wilwood

MPN : 340-13837

AlternatePartNumber : wil340-13837

UPC : 889545070569

Product Department : Interior Accessories

Product Category : Pedals

BoxQuantity : 1

Length : 15.5 inches

Width : 9.2 inches

Height : 6.1 inches

Weight : 3.23 lbs

This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 5.1:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
