UMI Performance 90020 Control Arm Roto-Joint End 3/4in 16 Right Hand Thread- fit

UMI Performance 90020 UMI Performance Control Arm Roto-Joint End 3/4in 16 Right Hand Thread- fits GM B-Body

Brand : UMI Performance

MPN : 90020

AlternatePartNumber : umi90020

UPC : 90020

Product Department : Engine Components

Product Category : Bearings

BoxQuantity : 1

Length : 7.0 inches

Width : 4.0 inches

Height : 3.0 inches

Weight : 2.0 lbs

Prop65 : Yes

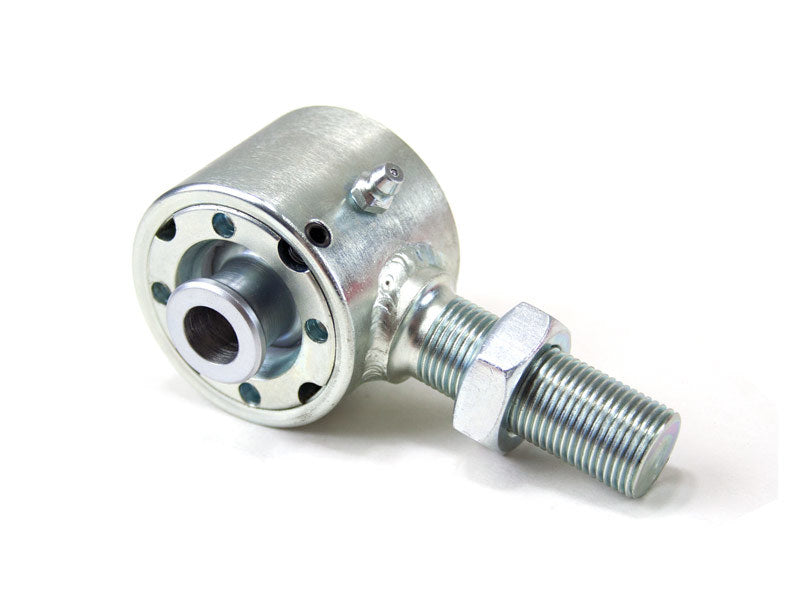

This Bushing end is designed to replace ¾”-16 right hand threaded rod ends by simply removing the rod end and screwing in this Roto-Joint assembly. This item works excellent to replace worn out rod ends or rod ends making unbearable noise. The Roto-Joint is an easy replacement and is supplied fully assembled with grease fitting, new jam nut and a clear zinc finish. Bushing width is 2.600” with 3/4”-16 right hand threads, 2.000” of thread adjustment and accepts a 14mm bolt. Our replacement bushing end features threads CNC machined from 4140 Chrome Moly steel, DOM tubing and TIG welded for superior strength and thread durability.
Installation Instructions
