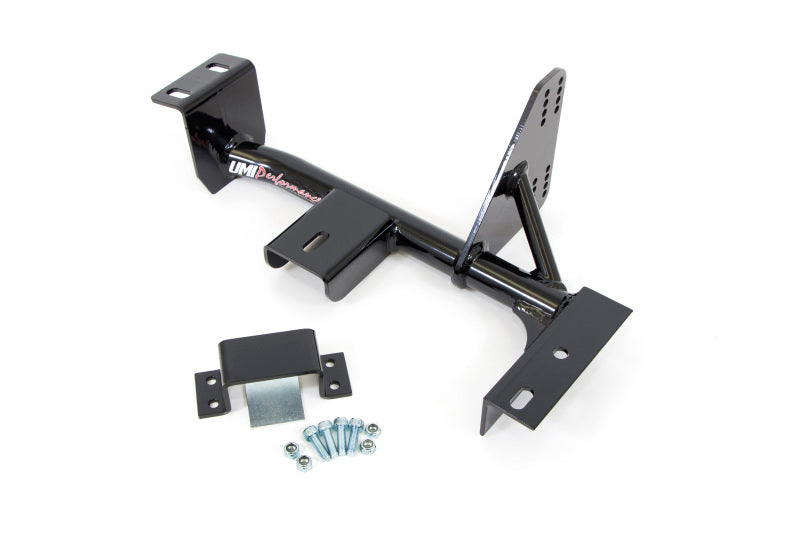

UMI Performance 2226-B 93-97 fits GM F-Body Torque Arm Relocation Kit- TH350

UMI Performance 2226-B UMI Performance 93-97 fits GM F-Body Torque Arm Relocation Kit- TH350

Brand : UMI Performance

MPN : 2226-B

AlternatePartNumber : umi2226-B

UPC : 2226-B

Product Department : Drivetrain

Product Category : Crossmembers

BoxQuantity : 1

Length : 24.0 inches

Width : 12.0 inches

Height : 12.0 inches

Weight : 14.0 lbs

Prop65 : Yes

Installing a TH350 Automatic transmission into your 1993-1997 Camaro or Firebird just got easier. This cross-member with integrated torque arm mount features the correct provisions for mounting the TH350 transmission while still allowing the use of a factory style torque arm. The built in torque arm mount will work with virtually any stock style aftermarket torque arm as well as the factory torque arm and features instant center adjustment by moving the front of the torque arm up or down. This unit is built using DOM mild steel tubing, 0.188” mild steel mounting plates and includes all appropriate hardware needed for the installation. The torque arm mount is machined from 0.250” thick mild steel and features a new clam shell for appropriately attaching the torque arm to the new cross member. There is no need to purchase any other torque arm brackets when using this kit.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1993-1997	Chevrolet	Camaro	Base
1993	Chevrolet	Camaro	Indianapolis 500 Pace Car
1996-1997	Chevrolet	Camaro	RS
1993-1997	Chevrolet	Camaro	Z28
1993-1997	Pontiac	Firebird	Base
1993-1997	Pontiac	Firebird	Formula
1993-1997	Pontiac	Firebird	Trans Am
1994	Pontiac	Firebird	Trans Am GT
