UMI Performance 2314-R 93-02 fits GM F-Body Boxed Lower A-Arms- Competition Rod

UMI Performance 2314-R UMI Performance 93-02 fits GM F-Body Boxed Lower A-Arms- Competition Rod Ends

Brand : UMI Performance

MPN : 2314-R

AlternatePartNumber : umi2314-R

UPC : 2314-R

Product Department : Suspension

Product Category : Control Arms

BoxQuantity : 1

Length : 19.0 inches

Width : 16.0 inches

Height : 8.0 inches

Weight : 25.0 lbs

Prop65 : Yes

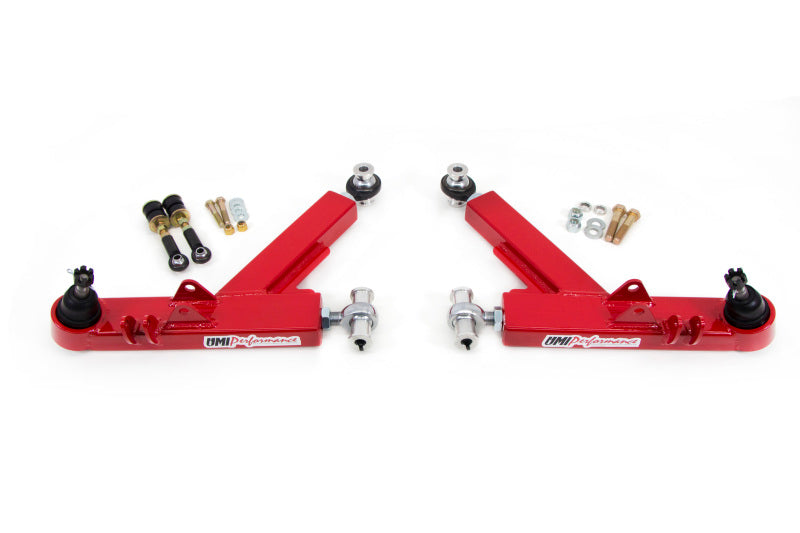

UMI’s heavy duty boxed lower a-arms P/N 2314 with dual rod ends provides a rock-solid foundation for your autocross, road race or corner carving 4th Gen. The a-arms fully gusseted box tubing construction combines strength with a five pound weight savings per set over factory lower a-arms. Shock mounting is double shear with a ½” dia x 1-¼” width racing coilover mount – suitable for most racing coilover systems. Revised ball joint location adds a nominal 2 degrees caster increase. These arms have double shear sway bar mount tabs with endlink set included. P/N 2314 is designed to work with the factory K-member, UMI k-members, and virtually all aftermarket K-members. Crafted with pride in Philipsburg, PA- USA.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1993-2002	Chevrolet	Camaro	Base
1993	Chevrolet	Camaro	Indianapolis 500 Pace Car
1996-1997	Chevrolet	Camaro	RS
1993-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
1993-2002	Pontiac	Firebird	Base
1993-2002	Pontiac	Firebird	Formula
1993-2002	Pontiac	Firebird	Trans Am
1994	Pontiac	Firebird	Trans Am GT
