UMI Performance 4014-R 64-72 fits GM A-Body Tubular Single Adjustable Lower Cont

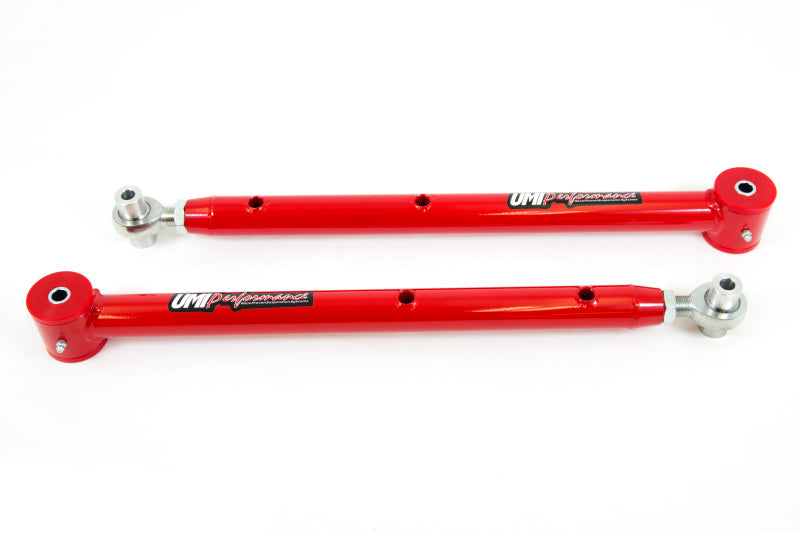

UMI Performance 4014-R UMI Performance 64-72 fits GM A-Body Tubular Single Adjustable Lower Control Arms

Brand : UMI Performance

MPN : 4014-R

AlternatePartNumber : umi4014-R

UPC : 4014-R

Product Department : Suspension

Product Category : Control Arms

BoxQuantity : 1

Length : 26.0 inches

Width : 6.0 inches

Height : 6.0 inches

Weight : 12.0 lbs

Prop65 : Yes

UMI Performance single adjustable lower control arms feature an Energy Suspension polyurethane bushing set-up on one end and a QA1 spherical rod end on the other. This type of set-up allows rear end adjustment when needed while also helping to eliminate and reduce rear end bind. The QA1 rod end allows rear end free movement when high handling, auto cross or road race is a concern, it also allows you to lengthen and shorten the control arms adding additional clearance when trying to squeeze those larger tires under the vehicle. The adjustment of these arms can also be used for custom rear end installs when centering and rear end movement is needed. This type of set-up works excellent as a drag race item, auto cross and street driving. The polyurethane bushings are designed to be bolted to the chassis of the vehicle for a quiet comfortable operation while the QA1 rod end attaches at the rear end. Each control arm features the correct provisions for adding a stock or aftermarket sway bar. Sway bar holes are reinforced with a 0.120" wall thickness steel sleeve TIG welded and sanded into place. Features: - 1.500" x 0.120" DOM Mild Steel Tubing - TIG Welded 4140 Chrome Moly Tube Adaptors - Complete Arm Features TIG Welded Construction - Energy Suspension Fluted Polyurethane grease-able Bushings - Durable Long Lasting Powder Coat finish - QA1 3/4" Hard Chrome Plated, Teflon/Kevlar Self Lubricating Race Rod End Installation: Installs in 1 hour or less using OEM hardware. All installation instructions included.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1965-1967	Buick	Gran Sport	Base
1970-1972	Buick	GS	Base
1968-1969	Buick	GS 350	Base
1968-1969	Buick	GS 400	Base
1970-1972	Buick	GS 455	Base
1970	Buick	GS 455	GSX
1970,1972	Buick	Skylark	350
1964-1972	Buick	Skylark	Base
1968-1972	Buick	Skylark	Custom
1964-1969	Buick	Special	Base
1964-1967	Buick	Special	Deluxe
1964-1972	Buick	Sportwagon	Base
1966,1968-1969	Buick	Sportwagon	Custom
1967-1968	Chevrolet	Chevelle	300
1967-1969	Chevrolet	Chevelle	300 Deluxe
1964-1968,1970-1972	Chevrolet	Chevelle	Base
1967-1972	Chevrolet	Chevelle	Concours
1969-1972	Chevrolet	Chevelle	Concours Estate
1965-1967	Chevrolet	Chevelle	Deluxe
1969-1972	Chevrolet	Chevelle	Greenbrier
1968-1972	Chevrolet	Chevelle	Malibu
1968-1972	Chevrolet	Chevelle	Nomad
1964-1972	Chevrolet	Chevelle	SS
1964-1972	Chevrolet	El Camino	Base
1968-1972	Chevrolet	El Camino	Custom
1968-1972	Chevrolet	El Camino	SS
1964-1967	Chevrolet	Malibu	Base
1970-1972	Chevrolet	Monte Carlo	Base
1971-1972	GMC	Sprint	Base
1972	GMC	Sprint	Custom
1964-1971	Oldsmobile	442	Base
1964-1972	Oldsmobile	Cutlass	Base
1972	Oldsmobile	Cutlass	Cruiser
1964-1967	Oldsmobile	Cutlass	Holiday
1968,1971-1972	Oldsmobile	Cutlass	S
1967	Oldsmobile	Cutlass	Turnpike Cruiser
1964-1972	Oldsmobile	Vista Cruiser	Base
1964-1967	Oldsmobile	Vista Cruiser	Custom
1969-1972	Pontiac	Grand Prix	Base
1964-1972	Pontiac	GTO	Base
1970-1971	Pontiac	GTO	The Judge
1964-1972	Pontiac	LeMans	Base
1972	Pontiac	LeMans	Luxury
1969-1970	Pontiac	LeMans	Safari
1970-1972	Pontiac	LeMans	Sport
1971	Pontiac	LeMans	T37
1964-1970	Pontiac	Tempest	Base
1964-1969	Pontiac	Tempest	Custom
1970	Pontiac	Tempest	GT
1964-1969	Pontiac	Tempest	Safari
