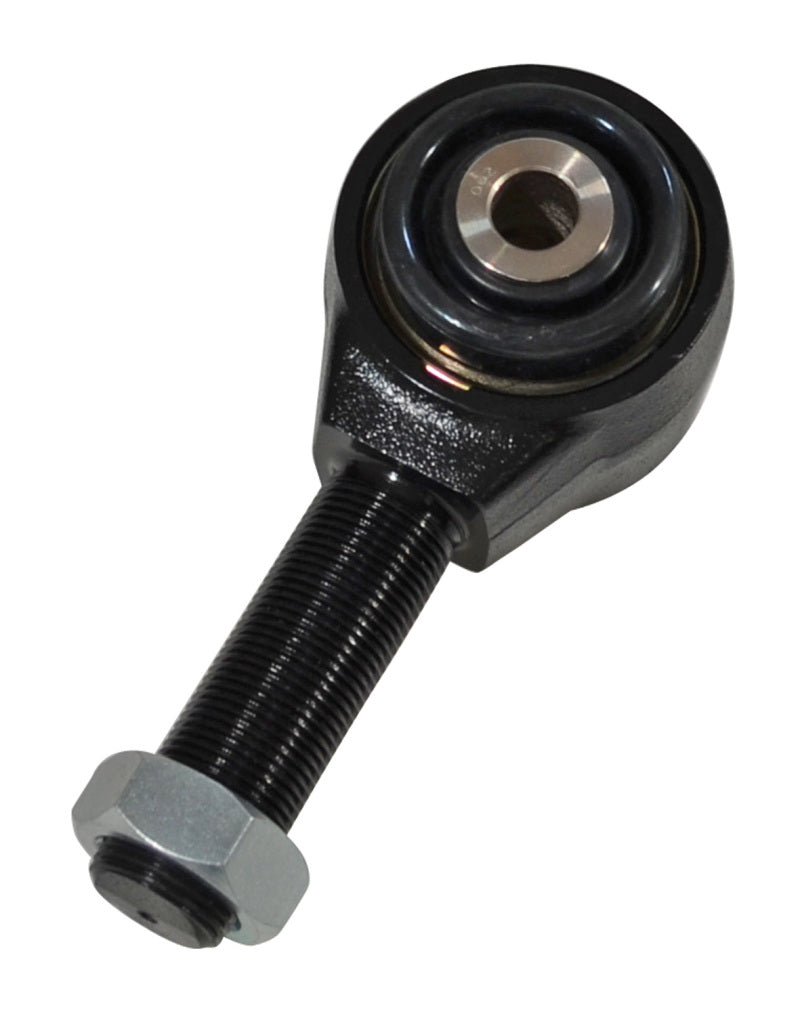

SPC Performance 15783 XAXIS Rod End Ball Joint

SPC Performance 15783 XAXIS Rod End Ball Joint

Brand : SPC Performance

MPN : 15783

AlternatePartNumber : spc15783

UPC : 082642157830

Product Department : Suspension

Product Category : Ball Joints

BoxQuantity : 1

Length : 9.0 inches

Width : 6.0 inches

Height : 2.5 inches

Weight : 4.0 lbs

Prop65 : Yes

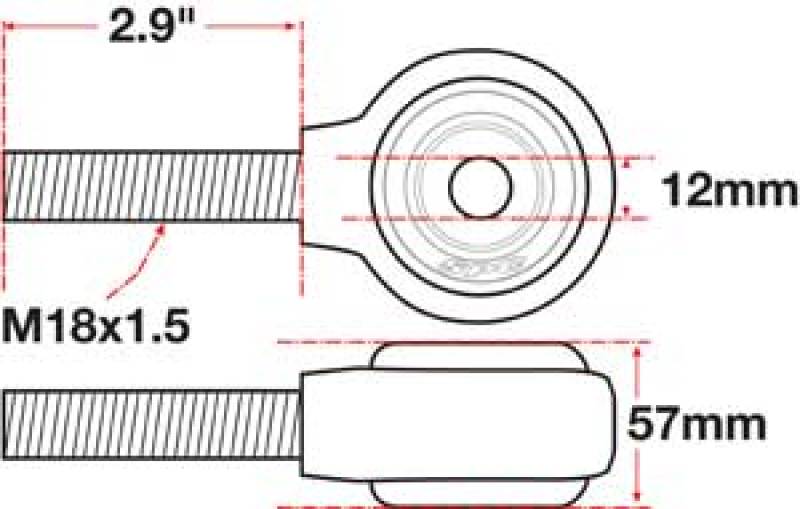

Build your next project with these forged steel alloy threaded receivers and xAxis sealed flex joints from SPC Performance. Get the increased angularity of a mono-ball that has been equipped with high mis-alignment inserts, the reduced compliance of a spherical bearing, and better durability than rubber and urethane bushings with SPC's superior design. This assembly has LH M18-1.5 threads takes a 12mm bolt and is 57mm wide. 36deg of articulation, sealed dust boots, moly grease and a highly polished electroless nickel ball makes this the best joint on the market. These assemblies utilize a snap ring for positive retention and easy replacements. Download a package model into your CAD software and start designing today. California Residents WARNING
Installation Instructions
