Snow Performance SNO-320-BRD Stg 3 Boost Cooler DI 2D MAP Prog. Water Injection

Snow Performance SNO-320-BRD Snow Performance Stg 3 Boost Cooler DI 2D MAP Prog. Water Injection Kit (SS Braided Line & 4AN)

Brand : Snow Performance

MPN : SNO-320-BRD

AlternatePartNumber : snoSNO-320-BRD

UPC : 653374500296

Product Department : Forced Induction

Product Category : Water Meth Kits

BoxQuantity : 1

Length : 12.4 inches

Width : 10.8 inches

Height : 10.3 inches

Weight : 8.4 lbs

Prop65 : Yes

Not CARB Legal

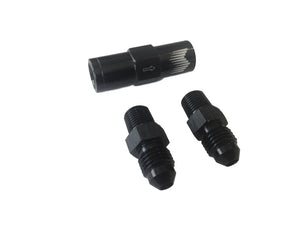

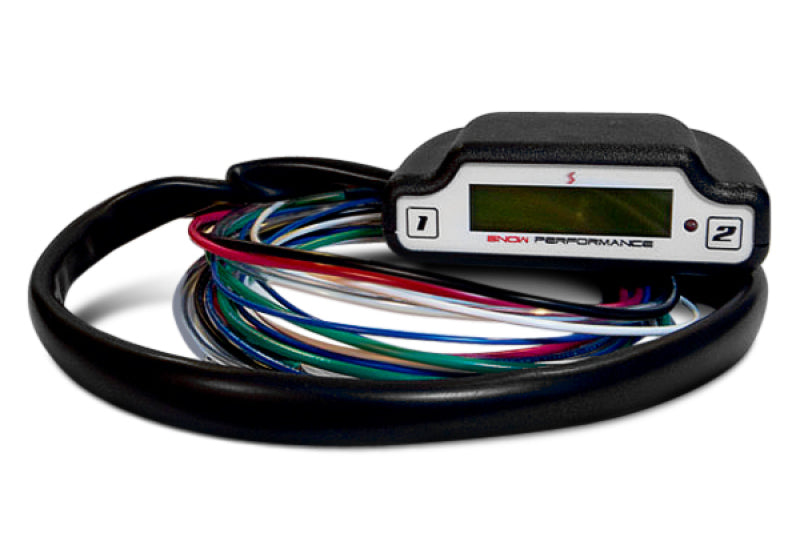

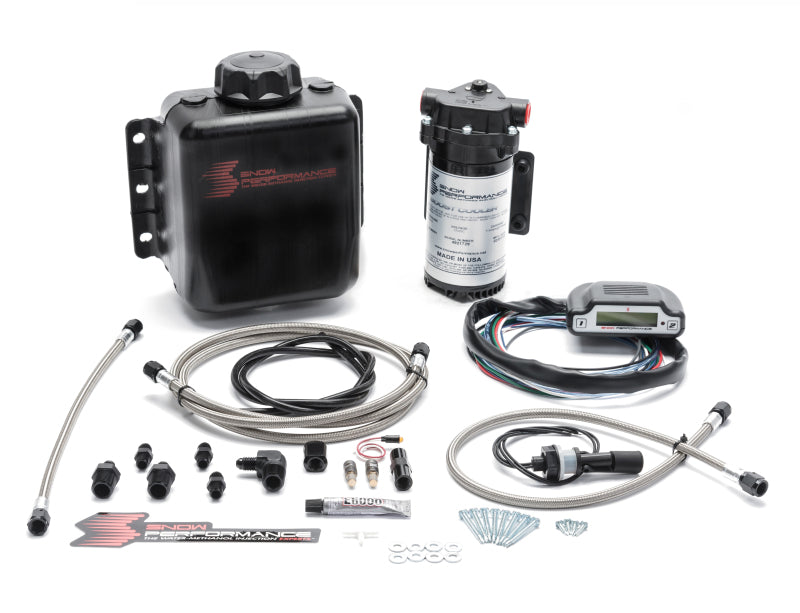

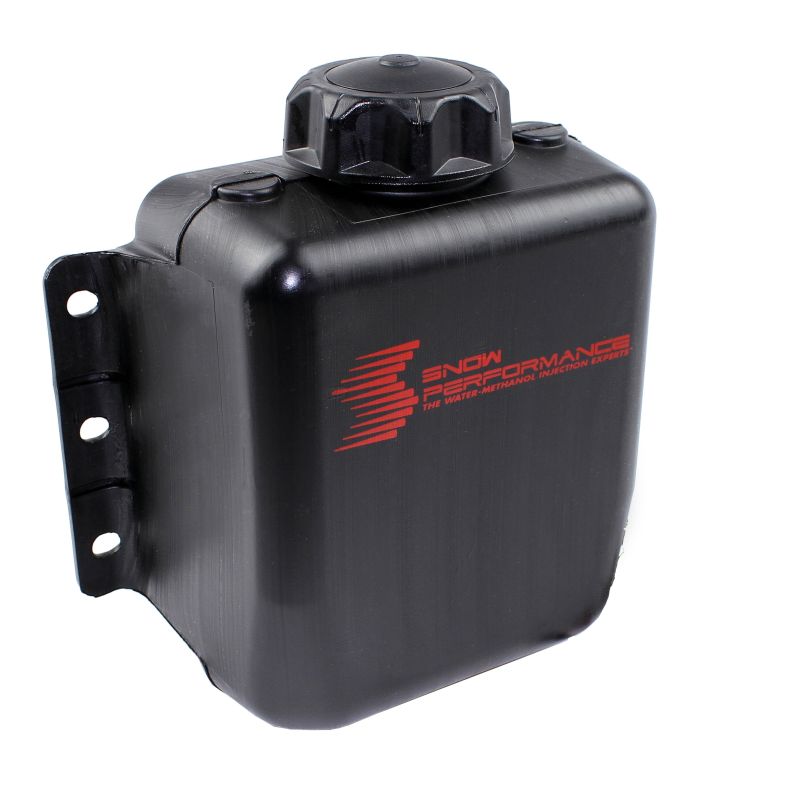

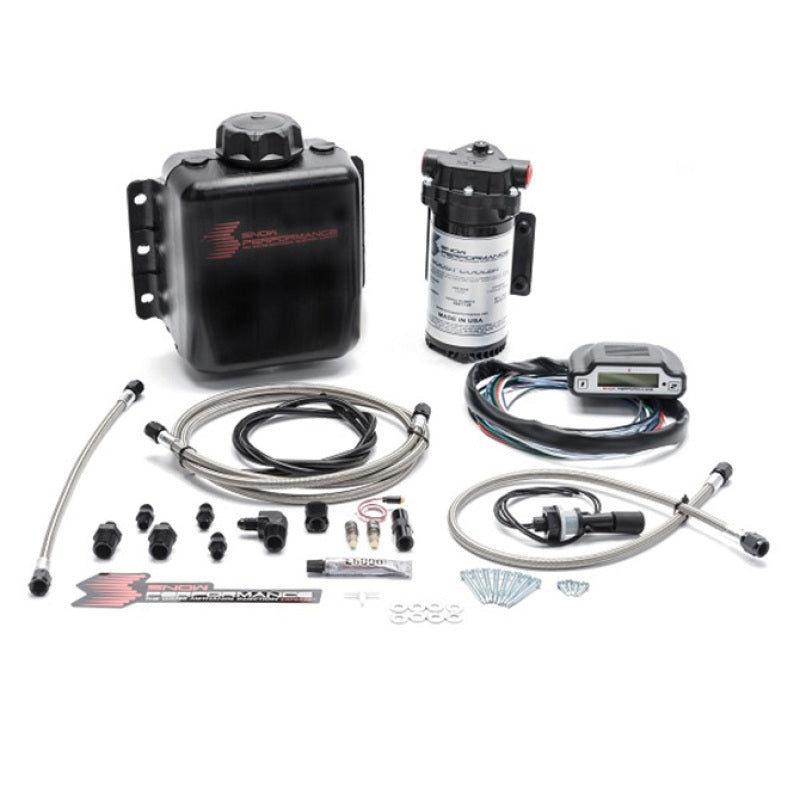

The Snow Performance Stage 3 Boost Cooler brings true 2D mapped water-methanol injection delivery to your DI (direct fuel injected) and forced induction (turbocharged/supercharged) vehicle. The Stage 3 creates a 2D injection map based off boost and fuel pressure sensor input to deliver a extremely accurate amount of water-methanol when the engine needs it most. Bringing fuel pressure into the mix allows the injection curve to be extended past specific boost points for greater range/control. None invasive, the Stage 3 Boost Cooler controller is designed to mount on the steering column or the dash so no additional gauge pods need to be purchased and functions as a boost gauge, water-meth controller and fuel system monitor all in one! Proven to reduce the air inlet temperature by up to 100 degrees and increase octane by 25 points for maximum HP and cooling. Comes with adjustable Stage 3 water-meth controller, 4AN fittings, and stainless steel braided line to mount pump/tank in engine bay of vehicle. For trunk mount options see Part# SNO-40014-BRD, SNO-40012-BRD.
Installation Instructions
