Description

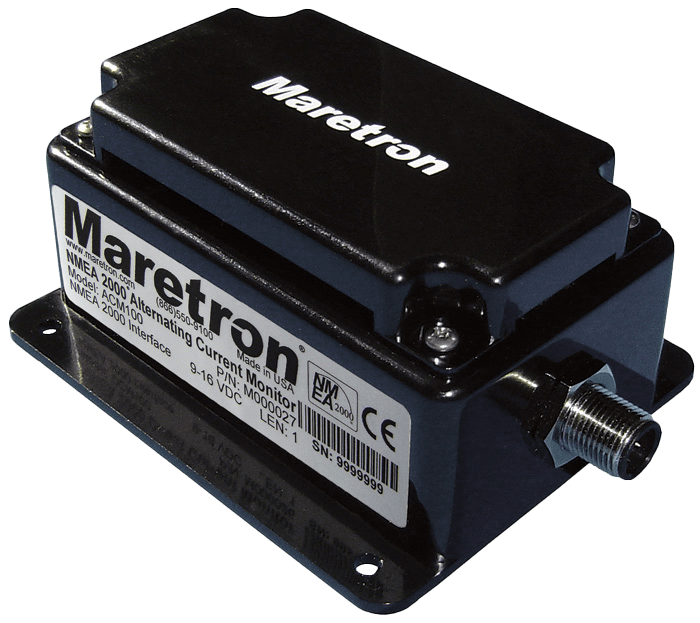

MARETRON ACM100-01 Monitors Voltage/ Current/ Frequency/ Real Power/ Reactive Power/ Apparent Power/ Power Factor/ Total Energy Imported/ Total Energy Exported; 9 To 32 Volt DC Operating Voltage; 50 Milliampere Power Consumption; +/- 1 Percent Voltage And Current Accuracy; 3-1/2 Inch Depth x 2.03 inch Height; IP64 Protected: Reverse Battery Protection/ Load Dump Protection; -25 To 55 Degree Celsius Operating Temperature/ -40 To 70 Degree Celsius Storage Temperature; Approvals: NMEA 2000 ® Approved/ IEC 60945/ FCC Certified/ CE Certified; With 100 Ampere AC Current Transducer(With 1.5 Meter Cable)/ Four Stainless Steel Mounting Screws/ User Manual
Brand : MARETRON
ManufacturerPart : ACM100-01
UPC : 873804000176
Length : 10 inches
Width : 7 inches
Height : 5 inches
Weight : 2 lbs
Case Quantity : 1
Prop65 Toxicity : C
Monitors Voltage/ Current/ Frequency/ Real Power/ Reactive Power/ Apparent Power/ Power Factor/ Total Energy Imported/ Total Energy Exported; 9 To 32 Volt DC Operating Voltage; 50 Milliampere Power Consumption; +/- 1 Percent Voltage And Current Accuracy; 3-1/2 Inch Depth x 2.03 inch Height; IP64 Protected: Reverse Battery Protection/ Load Dump Protection; -25 To 55 Degree Celsius Operating Temperature/ -40 To 70 Degree Celsius Storage Temperature; Approvals: NMEA 2000 ® Approved/ IEC 60945/ FCC Certified/ CE Certified; With 100 Ampere AC Current Transducer(With 1.5 Meter Cable)/ Four Stainless Steel Mounting Screws/ User Manual
