Go Fast Bits 7002 GFB 44mm V-Band External Style Wastegate

Go Fast Bits 7002 GFB 44mm V-Band External Style Wastegate

Brand : Go Fast Bits

MPN : 7002

AlternatePartNumber : gfb7002

UPC : 9328022007083

Product Department : Fabrication

Product Category : Flanges

BoxQuantity : 1

Length : 6.4 inches

Width : 6.1 inches

Height : 3.7 inches

Weight : 3.2 lbs

Prop65 : Yes

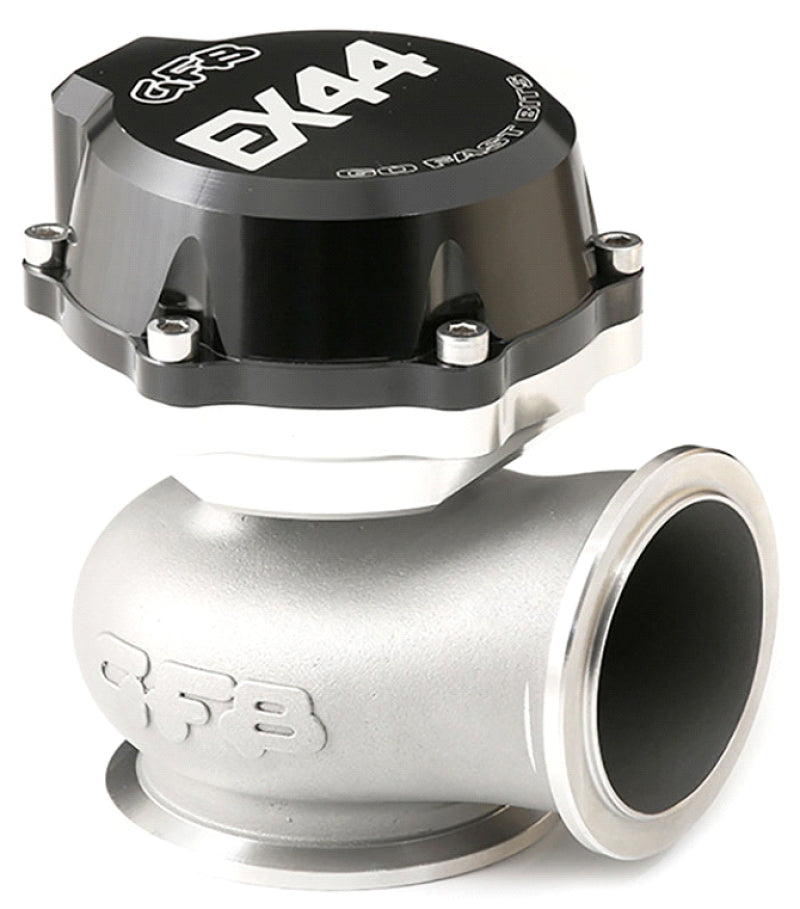

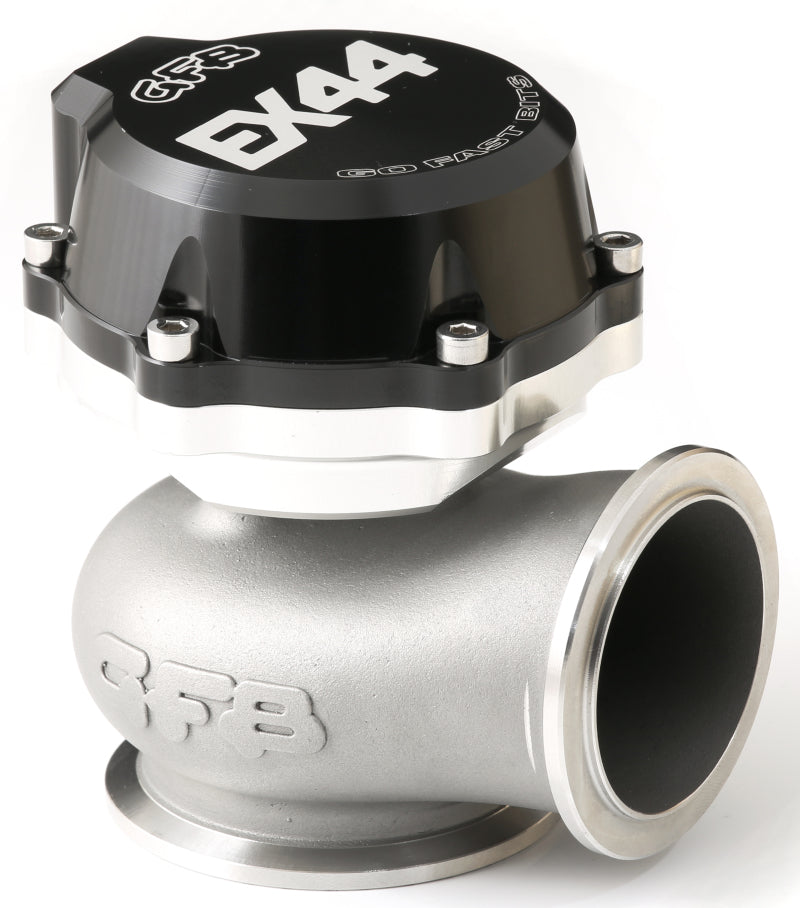

The 7002 wastegate features an investment cast body made from 253MA chromium-nickel stainless steel, a one-piece stainless steel valve, and a nomex reinforced diaphragm to cope with the extreme conditions and harsh environment of high-boost and exhaust temperatures. ? 44MM VALVE, ? V-BAND INLET AND OUTLET (DIRECTLY COMPATIBLE WITH TIAL MV-R FLANGES), ? 100MM OVERALL HEIGHT, ? ADDITIONAL SPRING AVAILABLE SEPARATELY IS 7PSI (MIDDLE), ? SUPPLIED WITH 10PSI (OUTER) SPRING AND 5PSI (INNER) SPRINGS ? USE SEPARATE OR TOGETHER FOR BASE BOOST PRESSURES OF 5, 10, OR 15PSI, ? COMBINE SPRINGS TO ACHIEVE BASE BOOST PRESSURES OF 5, 7, 10, 12, 15, 17 AND 22PSI,
Installation Instructions
