Description

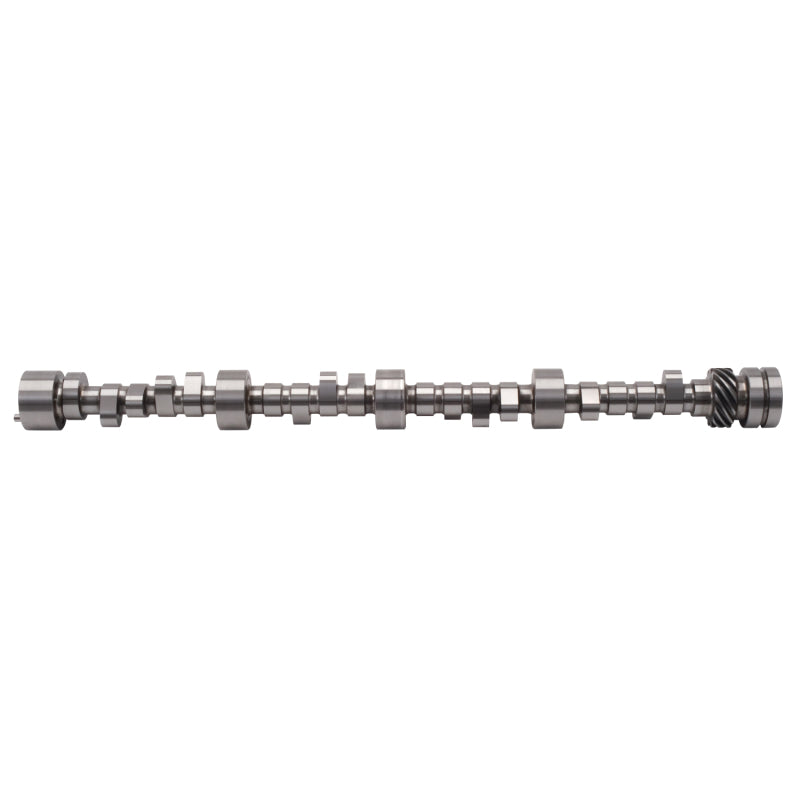

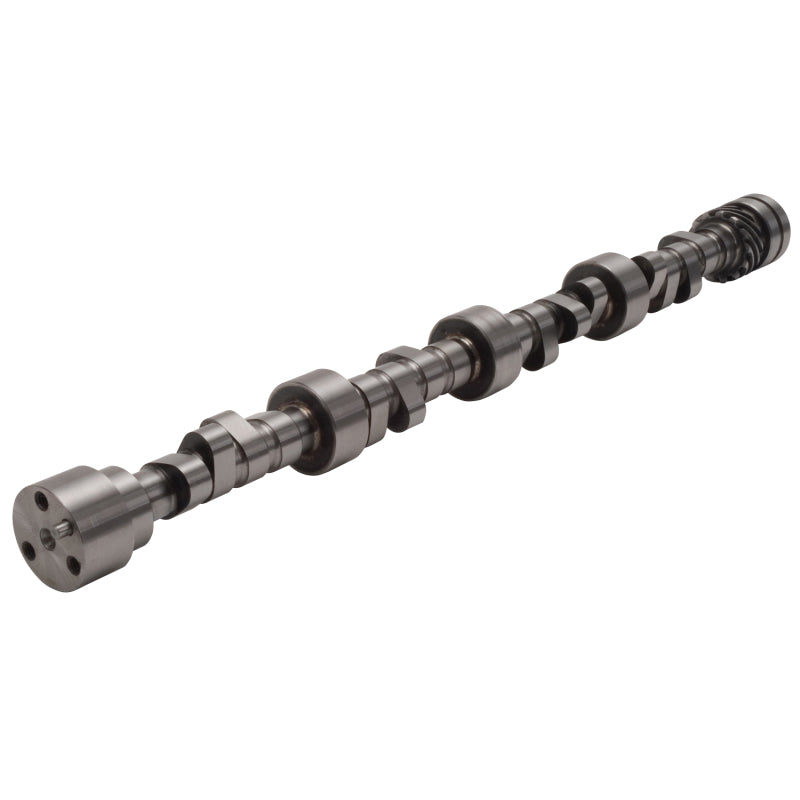

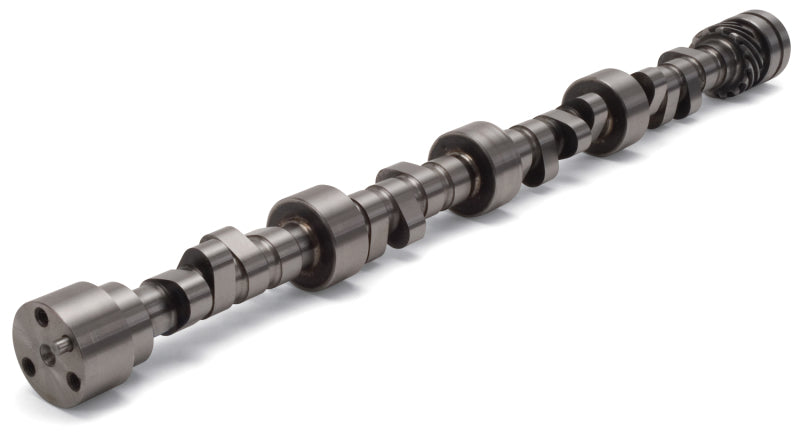

Edelbrock 2268 Rollin Thunder Camshaft Hydraulic Roller for fits Chevy 348/409
Brand : Edelbrock
MPN : 2268
AlternatePartNumber : ede2268
UPC : 85347022687
Product Department : Engine Components
Product Category : Camshafts
BoxQuantity : 1
Length : 25.0 inches
Width : 3.5 inches
Height : 3.5 inches
Weight : 10.3 lbs
Prop65 : Yes
Not CARB Legal
Edelbrock Rollin' Thunder Camshaft #2268 is designed for 348/409 (W Series) engines from 1958-65 and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 451HP and 470 Ft Lbs of Torque when paired with Performer RPM intake manifold #7159, Performer Series Carbs #1412, Performer RPM cylinder heads #60815 and Edelbrock roller tappet lifter set #97423. Must use a high stall torque converter. Camshaft specifications: - Intake duration: 230 Degrees - Exhaust duration: 234 Degrees - Intake lift: .616" - Exhaust lift: .628" - Lobe separation: 112 Degree - Intake Center Line: 107 - Vacuum: 10"Installation Instructions
Technical Bulletin
Installation Instructions
Installation Instructions
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1961-1965 | Chevrolet | Bel Air | Base |
| 1961-1965 | Chevrolet | Biscayne | Base |
| 1961 | Chevrolet | Brookwood | Base |
| 1961 | Chevrolet | C10 Pickup | Base |
| 1961 | Chevrolet | C20 Pickup | Base |
| 1961 | Chevrolet | C30 Pickup | Base |
| 1961-1965 | Chevrolet | Impala | Base |
| 1964-1965 | Chevrolet | Impala | SS |
| 1961 | Chevrolet | K10 Pickup | Base |
| 1961 | Chevrolet | K20 Pickup | Base |
| 1961 | Chevrolet | Kingswood | Base |
| 1961 | Chevrolet | Nomad | Base |
| 1961 | Chevrolet | Parkwood | Base |
| 1961 | Chevrolet | Suburban | Base |
Edelbrock 2268 Rollin Thunder Camshaft Hydraulic Roller for fits Chevy 348/409
Price:
Sale price$677.95
