Description
Edelbrock 3714 Perf Plus Cam Only fits Chevy 4 3 Before 1992
Brand : Edelbrock
MPN : 3714
AlternatePartNumber : ede3714
UPC : 85347037148
Product Department : Engine Components
Product Category : Camshafts
BoxQuantity : 1
Length : 25.63 inches
Width : 7.38 inches
Height : 3.38 inches
Weight : 8.56 lbs
Prop65 : Yes
Not CARB Legal

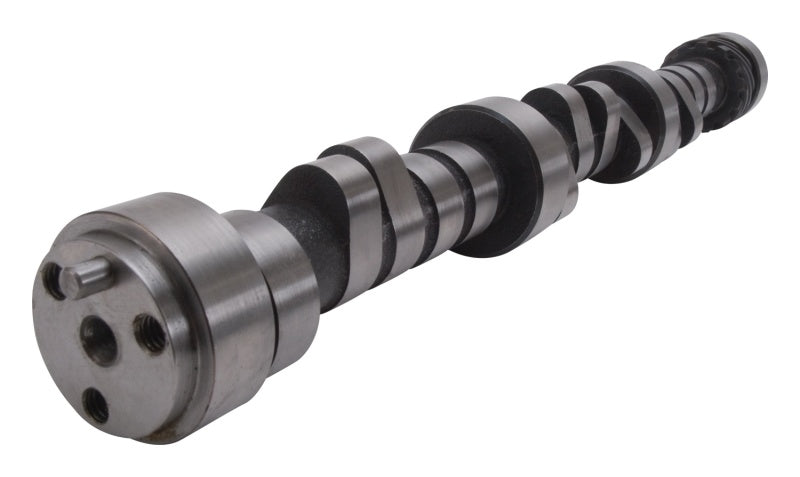

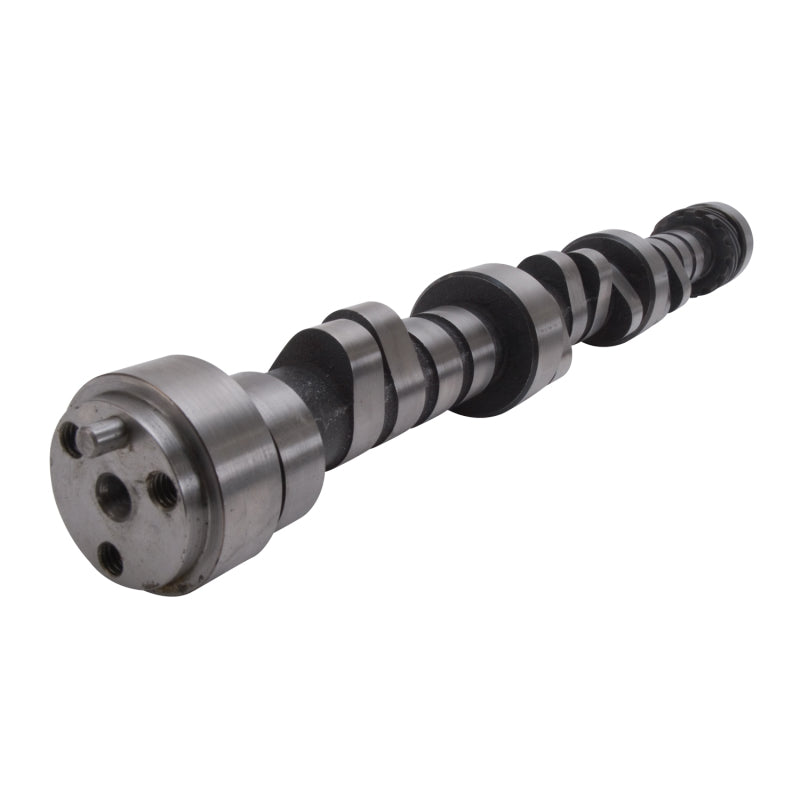

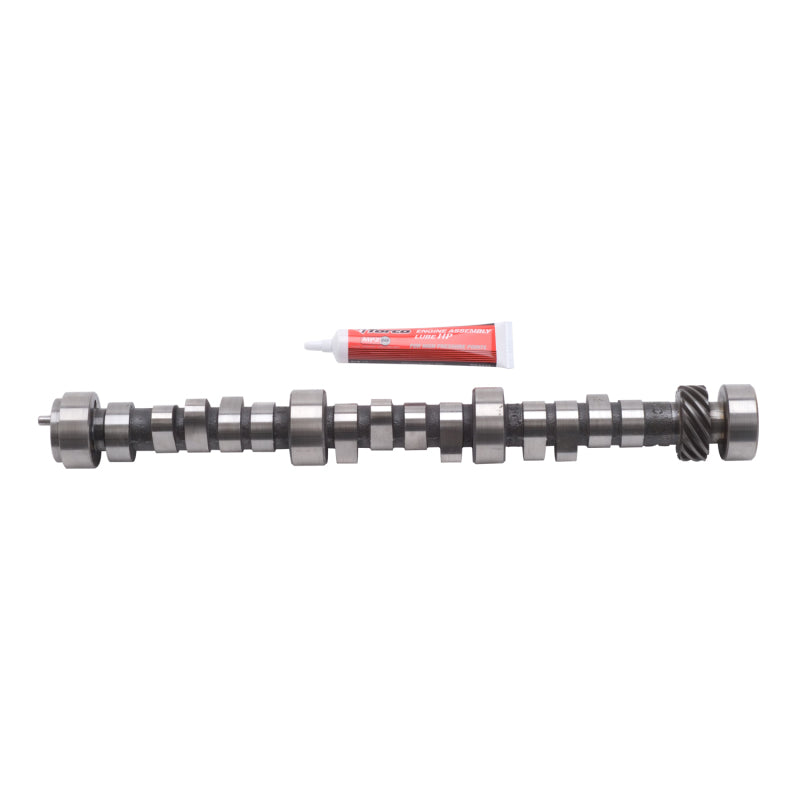

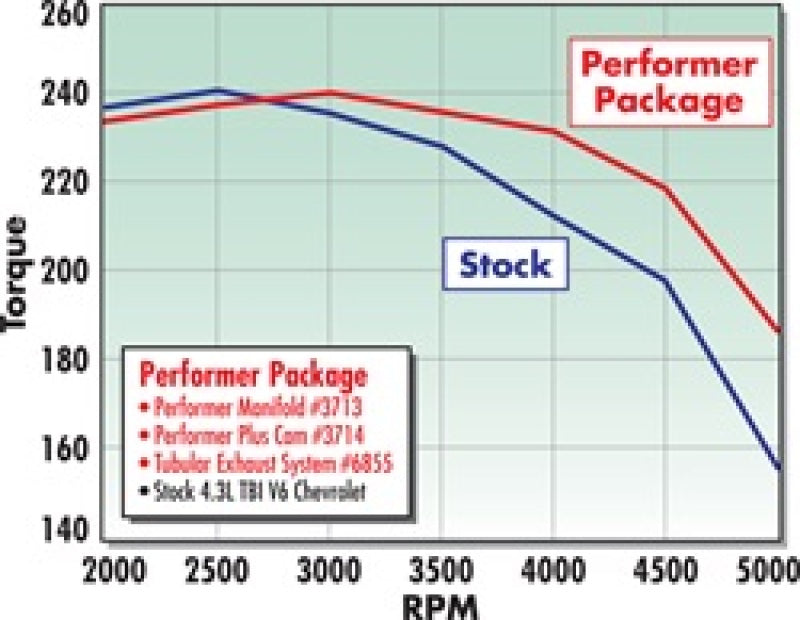

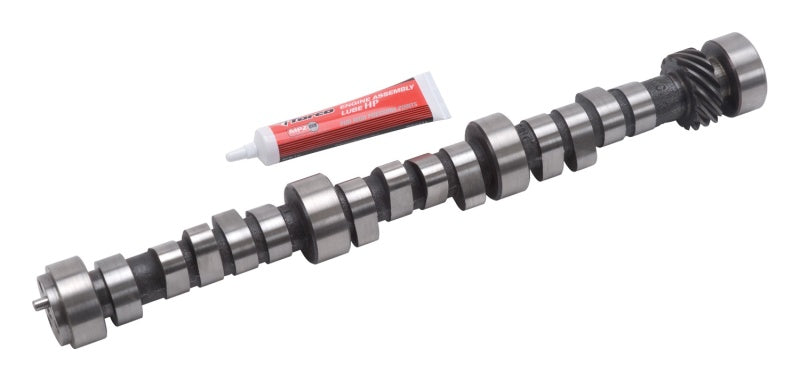

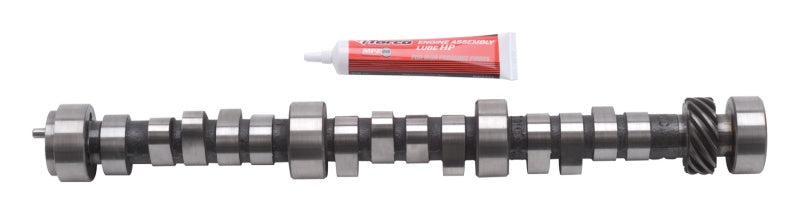

Edelbrock Rollin' Thunder Camshaft #3714 is designed for 4.3L 90 Degree V6 Chevy engines and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. For use with OEM hydraulic roller lifters (use original lifters). Not for 1992-Later 4.3L balanced shaft engines. Requires aftermarket computer chip (not available from Edelbrock) for use with intake manifold #3713. Call Edelbrock Tech 800-416-8628 for info. Camshaft specifications: - Intake duration: 210 Degrees - Exhaust duration: 214 Degrees - Intake lift: .479" - Exhaust lift: .488" - Lobe separation: 112 Degree - Intake Center Line: 107 - Vacuum: 17"Installation Instructions
Technical Bulletin
Installation Instructions
Installation Instructions
Installation Instructions
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992-1994 | Chevrolet | Astro | Base |
| 1992-1994 | Chevrolet | Astro | CL |
| 1992-1994 | Chevrolet | Astro | CS |
| 1992-1994 | Chevrolet | Astro | LT |
| 1994-1995 | Chevrolet | C1500 | Base |
| 1992-1995 | Chevrolet | C1500 | Cheyenne |
| 1992 | Chevrolet | C1500 | Scottsdale |
| 1992-1995 | Chevrolet | C1500 | Silverado |
| 1992-1995 | Chevrolet | C1500 | WT |
| 1994-1995 | Chevrolet | C2500 | Base |
| 1992-1995 | Chevrolet | C2500 | Cheyenne |
| 1992 | Chevrolet | C2500 | Scottsdale |
| 1992-1995 | Chevrolet | C2500 | Silverado |
| 1994-1995 | Chevrolet | C2500 | WT |
| 1992 | Chevrolet | Caprice | Base |
| 1993 | Chevrolet | Caprice | Classic |
| 1992 | Chevrolet | Commercial Chassis | Base |
| 1992-1995 | Chevrolet | G10 | Beauville |
| 1992-1995 | Chevrolet | G10 | Chevy Van |
| 1992-1995 | Chevrolet | G10 | Sportvan |
| 1992-1995 | Chevrolet | G20 | Beauville |
| 1992-1995 | Chevrolet | G20 | Chevy Van |
| 1992-1995 | Chevrolet | G20 | Sportvan |
| 1992-1993 | Chevrolet | G30 | Beauville |
| 1992-1996 | Chevrolet | G30 | Chevy Van |
| 1992-1995 | Chevrolet | G30 | Hi-Cube |
| 1994-1995 | Chevrolet | K1500 | Base |
| 1992-1995 | Chevrolet | K1500 | Cheyenne |
| 1992 | Chevrolet | K1500 | Scottsdale |
| 1992-1995 | Chevrolet | K1500 | Silverado |
| 1992-1995 | Chevrolet | K1500 | WT |
| 1994-1995 | Chevrolet | K2500 | Base |
| 1992-1995 | Chevrolet | K2500 | Cheyenne |
| 1992 | Chevrolet | K2500 | Scottsdale |
| 1992-1995 | Chevrolet | K2500 | Silverado |
| 1994-1995 | Chevrolet | K2500 | WT |
| 1992-1995 | Chevrolet | P30 | Base |
| 1992-1995 | Chevrolet | S10 | Base |
| 1992-1993 | Chevrolet | S10 | EL |
| 1994-1995 | Chevrolet | S10 | LS |
| 1992 | Chevrolet | S10 | Tahoe |
| 1994-1995 | Chevrolet | S10 | ZR2 |
| 1992-1994 | Chevrolet | S10 Blazer | Base |
| 1994 | Chevrolet | S10 Blazer | LT |
| 1992 | Chevrolet | S10 Blazer | Sport |
| 1992-1994 | Chevrolet | S10 Blazer | Tahoe |
| 1992-1994 | Chevrolet | S10 Blazer | Tahoe LT |
| 1992-1993 | GMC | C1500 | Sierra |
| 1994-1995 | GMC | C1500 | Sierra SL |
| 1992-1995 | GMC | C1500 | Sierra SLE |
| 1994-1995 | GMC | C1500 | Sierra SLT |
| 1992-1993 | GMC | C1500 | Sierra SLX |
| 1994-1995 | GMC | C1500 | Sierra Special |
| 1992-1993 | GMC | C2500 | Sierra |
| 1994-1995 | GMC | C2500 | Sierra SL |
| 1992-1995 | GMC | C2500 | Sierra SLE |
| 1992-1993 | GMC | C2500 | Sierra SLX |
| 1992-1993 | GMC | G1500 | Rally |
| 1992-1993 | GMC | G1500 | Rally STX |
| 1992-1995 | GMC | G1500 | Vandura |
| 1992-1995 | GMC | G2500 | Rally |
| 1992-1995 | GMC | G2500 | Rally STX |
| 1992-1995 | GMC | G2500 | Vandura |
| 1992-1995 | GMC | G3500 | Vandura |
| 1992-1995 | GMC | G3500 | Vandura Special |
| 1992-1994 | GMC | Jimmy | Base |
| 1992-1994 | GMC | Jimmy | SLE |
| 1993-1994 | GMC | Jimmy | SLS |
| 1992-1994 | GMC | Jimmy | SLT |
| 1992-1993 | GMC | K1500 | Sierra |
| 1994-1995 | GMC | K1500 | Sierra SL |
| 1992-1995 | GMC | K1500 | Sierra SLE |
| 1995 | GMC | K1500 | Sierra SLS |
| 1994-1995 | GMC | K1500 | Sierra SLT |
| 1992-1993 | GMC | K1500 | Sierra SLX |
| 1994-1995 | GMC | K1500 | Sierra Special |
| 1993 | GMC | K1500 | Sierra Sport |
| 1992-1993 | GMC | K2500 | Sierra |
| 1994-1995 | GMC | K2500 | Sierra SL |
| 1992-1995 | GMC | K2500 | Sierra SLE |
| 1992-1993 | GMC | K2500 | Sierra SLX |
| 1992-1995 | GMC | P3500 | Base |
| 1992-1994 | GMC | Safari | Base |
| 1993 | GMC | Safari | GT |
| 1992-1994 | GMC | Safari | SLE |
| 1992-1994 | GMC | Safari | SLT |
| 1994 | GMC | Safari | SLX |
| 1992-1993 | GMC | Sonoma | Base |
| 1994-1995 | GMC | Sonoma | SL |
| 1992-1995 | GMC | Sonoma | SLE |
| 1993-1995 | GMC | Sonoma | SLS |
| 1992-1993 | GMC | Typhoon | Base |
| 1992 | Oldsmobile | Bravada | Base |
Edelbrock 3714 Perf Plus Cam Only fits Chevy 4 3 Before 1992
Price:
Sale price$528.95
