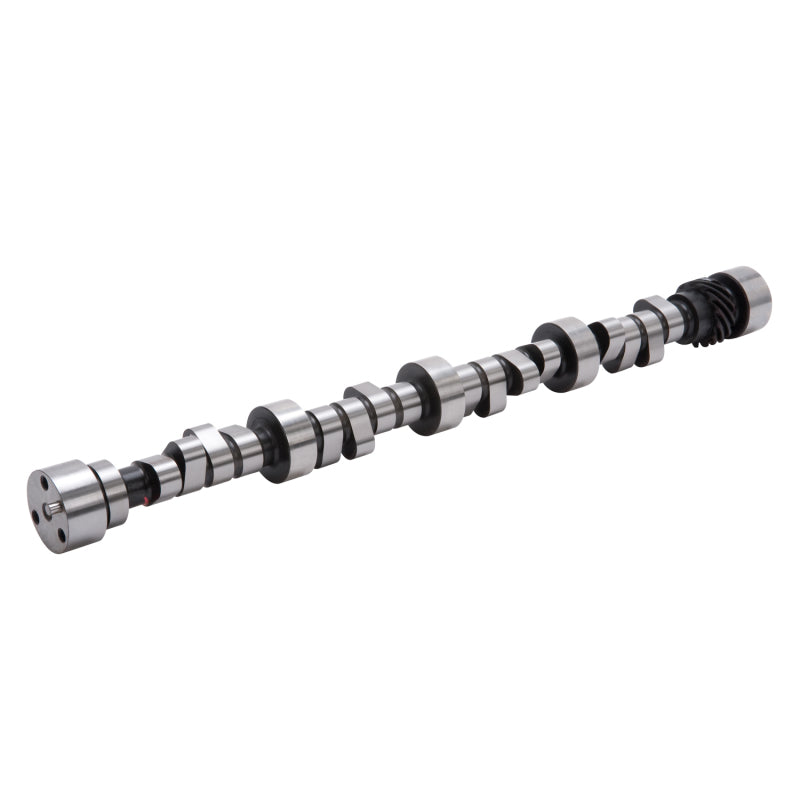

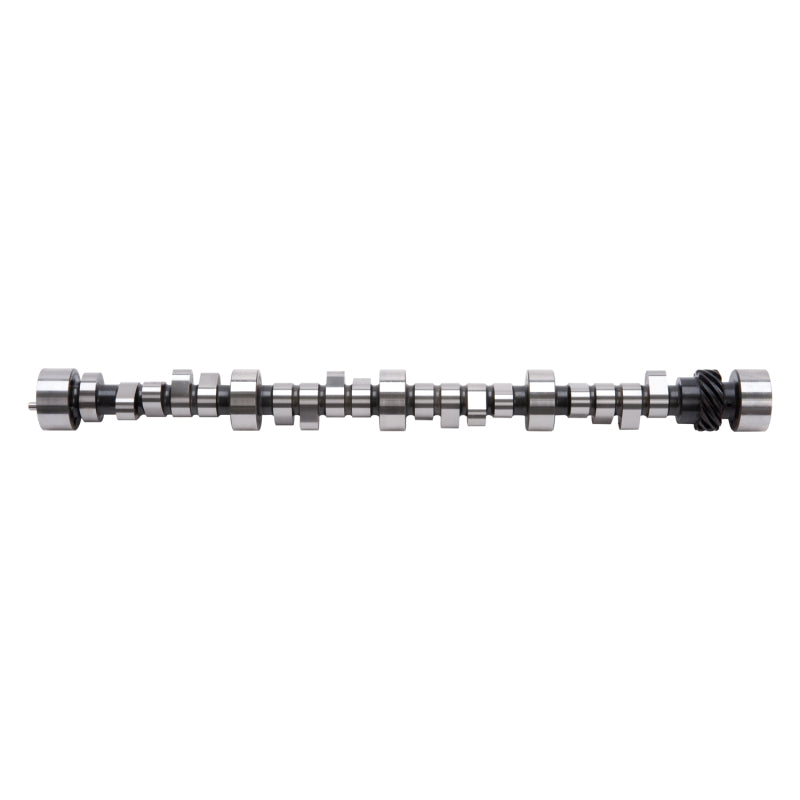

Edelbrock 2231 Camshaft Rollin Thunder 57-86 fits SBC V8 242-Deg /240-Deg Duration 594In/ 594In Lift

Edelbrock 2231 Camshaft Rollin Thunder 57-86 fits SBC V8 242-Deg /240-Deg Duration 594In/ 594In Lift

Brand : Edelbrock

MPN : 2231

AlternatePartNumber : ede2231

UPC : 85347022311

Product Department : Engine Components

Product Category : Camshafts

BoxQuantity : 1

Length : 24.5 inches

Width : 2.9 inches

Height : 2.75 inches

Weight : 9.05 lbs

Prop65 : Yes

Not CARB Legal

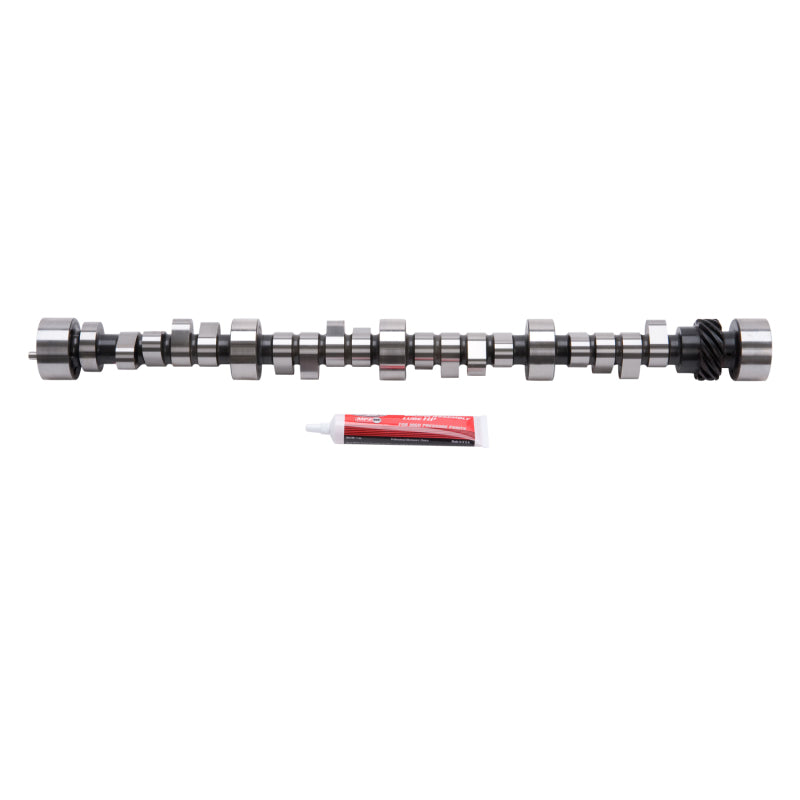

Edelbrock Rollin' Thunder Camshaft #2231 is designed for 283-400 Chevy V8 engines and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 460HP and 460 Ft Lbs of Torque when paired with Performer RPM Air-Gap intake manifold #7516, Thunder Series AVS Carb #1813 and Performer RPM E-Tec cylinder heads #60985 on a 383 c.i.d. Small block Chevy engine. Must be used with a thrust button, high stall torque converter, and stock ratio rocker arms only. Camshaft specifications: - Intake duration: 242 Degrees - Exhaust duration: 240 Degrees - Intake lift: .594" - Exhaust lift: .594" - Lobe separation: 112 Degree - Intake Center Line: 107 Degree - Vacuum: 11"
