Description

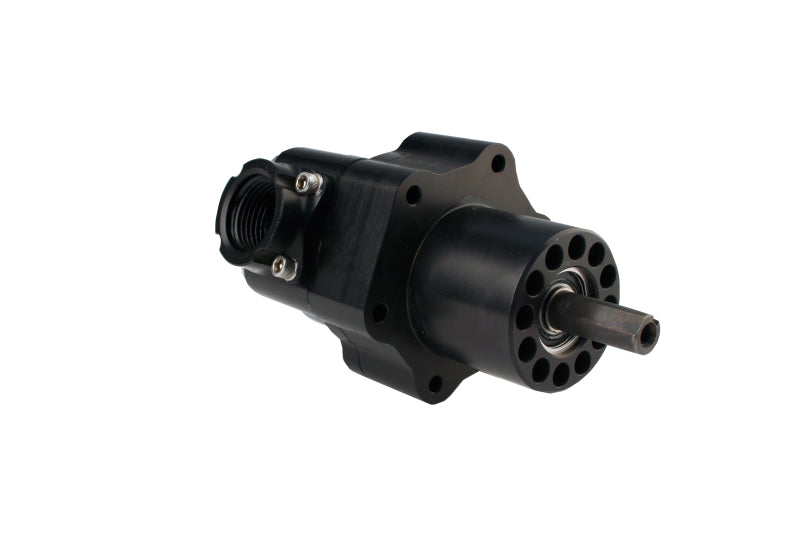

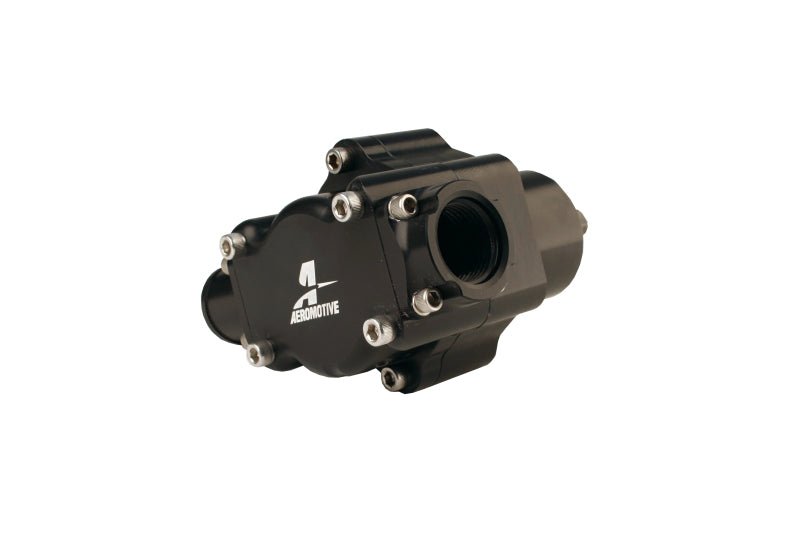

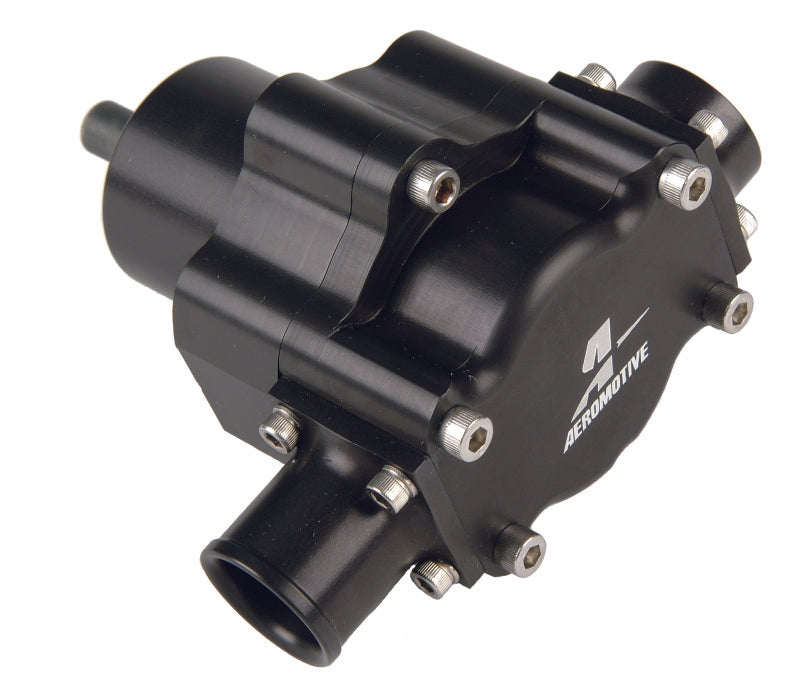

Aeromotive 11115 Atomic Belt Drive Fuel Pump
Brand : Aeromotive
ManufacturerPart : 11115
UPC : 684980002355
Length : 8.3 inches
Width : 7.3 inches
Height : 6.3 inches
Weight : 4.5 lbs
Box Quantity : 1
Prop65 : Y

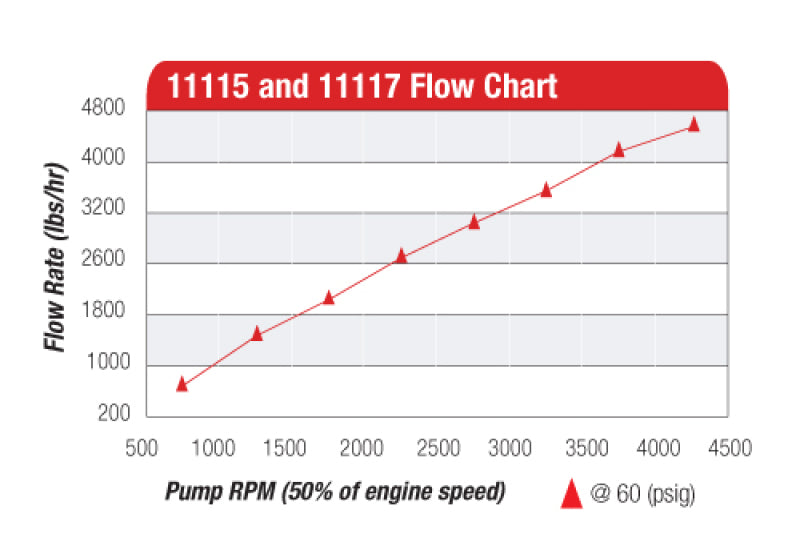

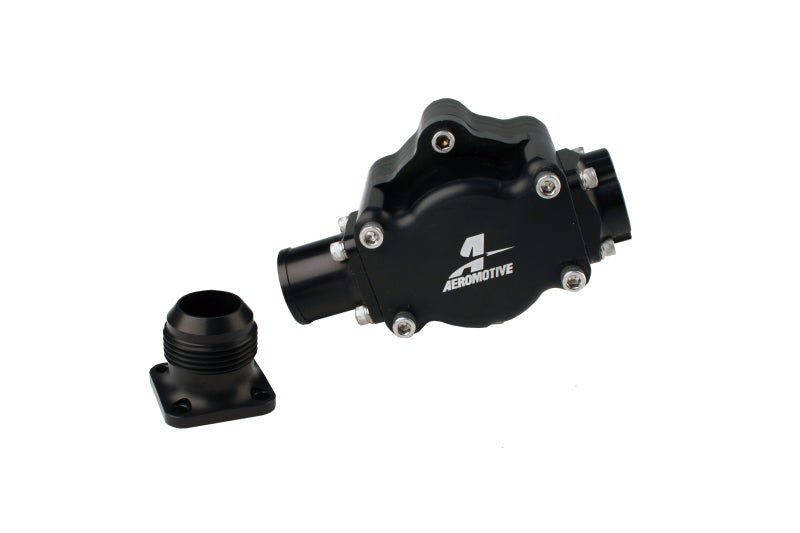

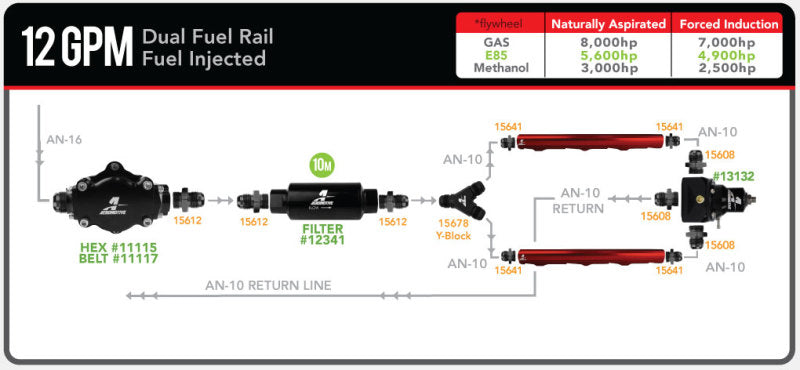

12 GPM Belt Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol, or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low-pressure applications. Flows up to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators. Sold Separately: Mounting Bracket (P/N 11706).
Installation Instructions
Installation Instructions
