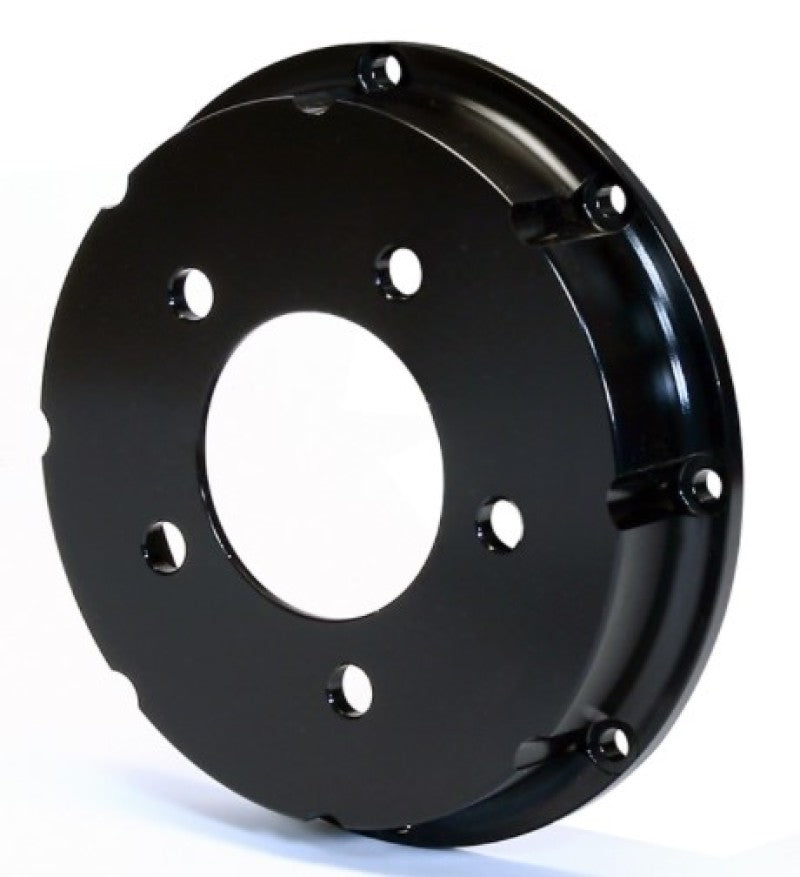

Wilwood 170-0635 Hat-Pantera-Std 1.38in Offset 5 x 4.50 - 8 on 7.62in

Wilwood 170-0635 Wilwood Hat-Pantera-Std 1.38in Offset 5 x 4.50 - 8 on 7.62in

Brand : Wilwood

MPN : 170-0635

AlternatePartNumber : wil170-0635

UPC : 889545041279

Product Department : Brakes, Rotors & Pads

Product Category : Brake Rotors - 2 Piece

BoxQuantity : 1

Length : 9.1 inches

Width : 8.8 inches

Height : 2.6 inches

Weight : 1.8 lbs

Wilwood's Pro Street Series Fixed Mount Rotor Hats have a long standing reputation for fit, performance, and durability. HD Series hats are manufactured from premium grade aluminum alloys offering high strength, low weight, and show quality appeal. HD hats have not only been a mainstay in many of Wilwood's racing disc brake conversion kits, but they can cover a range of applications from an OE four lug axle shaft to a Grand-National stock car racing hub. Pro Street hats feature a straight bell construction with a flanged rotor mount ring, with through holes for use with threaded-hole, 8 x 7.62 mount rotors. These features combine to provide maximum radial clearance between the caliper body and the hat. This can be a critical factor when trying to squeeze a large caliper inside a small wheel. Many hats offer multi-lug wheel patterns for added versatility. Some hats can be ordered blank for custom axle building and other unique applications.
