Wilwood 120-8373 Caliper-PS 1-RH 1.12in Pistons .190in Disc

Wilwood 120-8373 Wilwood Caliper-PS 1-RH 1.12in Pistons .190in Disc

Brand : Wilwood

MPN : 120-8373

AlternatePartNumber : wil120-8373

UPC : 889545006155

Product Department : Brakes, Rotors & Pads

Product Category : Brake Calipers - Perf

BoxQuantity : 1

Length : 6.0 inches

Width : 4.5 inches

Height : 3.4 inches

Weight : 1.2 lbs

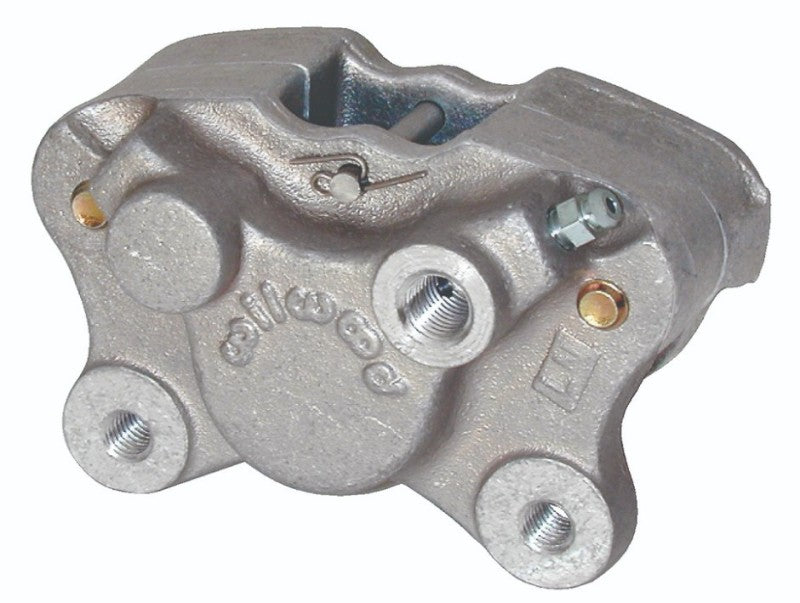

The PS-1 Caliper is compact, lightweight (.93 pounds) and combines the strength of cast aluminum construction with a sleek low profile design. This caliper utilizes two stainless steel deep cup pistons to minimize heat transfer from the .30” thick pad to the brake fluid while employing high temperature square piston seals to control piston retraction. Internal crossover brake fluid passages eliminate the use of external crossover tubes. The PS-1 fits rotors with diameters ranging from 6.00” to 9.00”, thickness sizes from .15” to .20”.
