Wilwood 120-13946 fits Caliper-GN6R-R/H-Black Ano (.80 Thk Pad) 1.75/1.38/1.38i

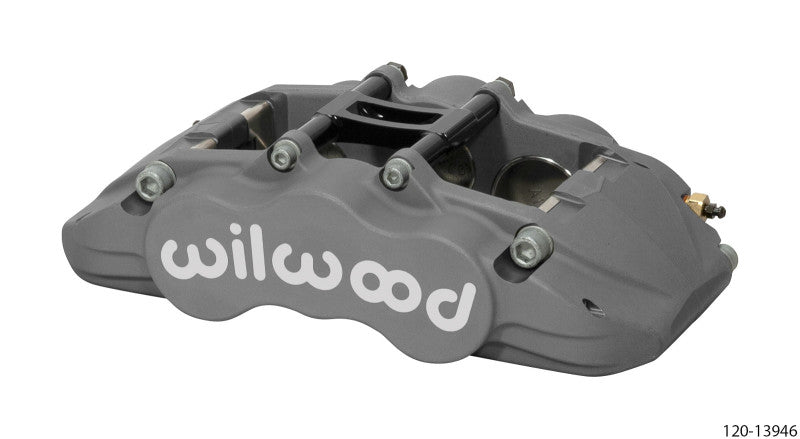

Wilwood 120-13946 Wilwood Caliper-GN6R-R/H-Black Ano (.80 Thk Pad) 1.75/1.38/1.38in Pistons 1.38in Disc

Brand : Wilwood

MPN : 120-13946

AlternatePartNumber : wil120-13946

UPC : 889545071092

Product Department : Brakes, Rotors & Pads

Product Category : Brake Calipers - Perf

BoxQuantity : 1

Length : 12.5 inches

Width : 7.2 inches

Height : 3.3 inches

Weight : 8.1 lbs

Grand National GN6R forged aluminum six-piston radial mount calipers bring current state-of-the-art design, materials, and manufacturing technology to this long standing icon in the Wilwood caliper line. With a High-strength forged aluminum body in either hard-anodized or Quick-Silver nickel plate finish and Compatible with rotors from 1.25” to 1.38” thickness and diameters from 12.19” to 13.06”. Two body widths are available for use with .80” (20,3) or .99” (25,0) thick pads. Stainless steel pistons are included base model GN6R anodized calipers and Thermlock® pistons in the GN6R/ST models. Uses 3.5” or 6.0” center mount bracket kits to replace all previous Grand National caliper models.
