Wilwood 120-3277 Caliper-Dynalite Single Floater 1.75in Piston .38in Disc

Name: Wilwood 120-3277 Caliper-Dynalite Single Floater 1.75in Piston .38in Disc
Brand: Wilwood
SKU: WIL120-3277
Price: 158.82 USD
Availability: InStock

Save $12.71

Wilwood

Manufacturing Part Number (MPN)

120-3277

Price:

$158.82 $171.53

Stock:

Re-stocking soon

Quantity:

Economy delivery - on or before 7 business days - 17th

Standard delivery - on or before 5 business days

Expedited - on or before 3 day

Second Day - on or before 2 days

Next Day -on or before 1 day

Wilwood 120-3277 Wilwood Caliper-Dynalite Single Floater 1.75in Piston .38in Disc

Brand : Wilwood

MPN : 120-3277

AlternatePartNumber : wil120-3277

UPC : 889545003864

Product Department : Brakes, Rotors & Pads

Product Category : Brake Calipers - Perf

BoxQuantity : 1

Length : 5.0 inches

Width : 4.6 inches

Height : 3.3 inches

Weight : 1.6 lbs

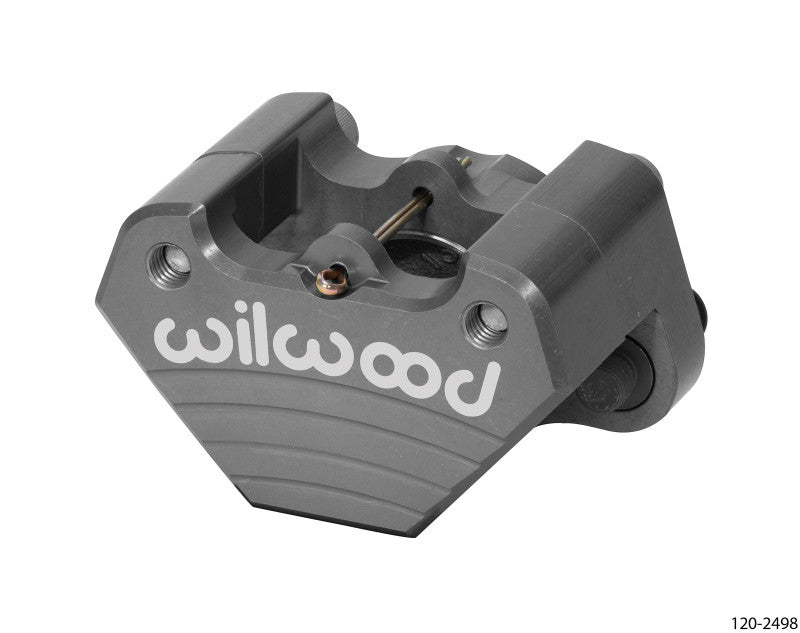

Wilwood’s Dynalite Single Floater is a single piston billet caliper designed for Open Wheel, Drag Race, Karting and Motorcycle applications. The rigid outboard anvil half’s low profile design allows it to fit in tight clearance situations where opposed piston designs will not. Weighing just 1.40 pounds, the caliper uses the same .49” thick, 1.1 cubic inch Dynalite Single quick change pads. Multiple 1/8-27 NPT inlet and bleed screw locations allow for versatile mounting positions. It comes with precision machined dry lubricated slide pins for bind-free operation. The Dynalite Single Floater is black anodized to resist corrosion and fits rotors from .25” to .38” wide and diameters from 6.00” to 13.00”.
