Whiteline KTA301 Caster Correction Fixed Offset Front UCA Set

Whiteline KTA301 Caster Correction Fixed Offset Front UCA Set

Brand: Whiteline

MPN: KTA301

UPC: 9319924469512

Product Department: Suspension

Product Category: Caster Kits

Box Quantity: 1

Weight: 16.1 lbs

Height: 6.7 Inches

Width: 13.4 Inches

Length: 16.7 Inches

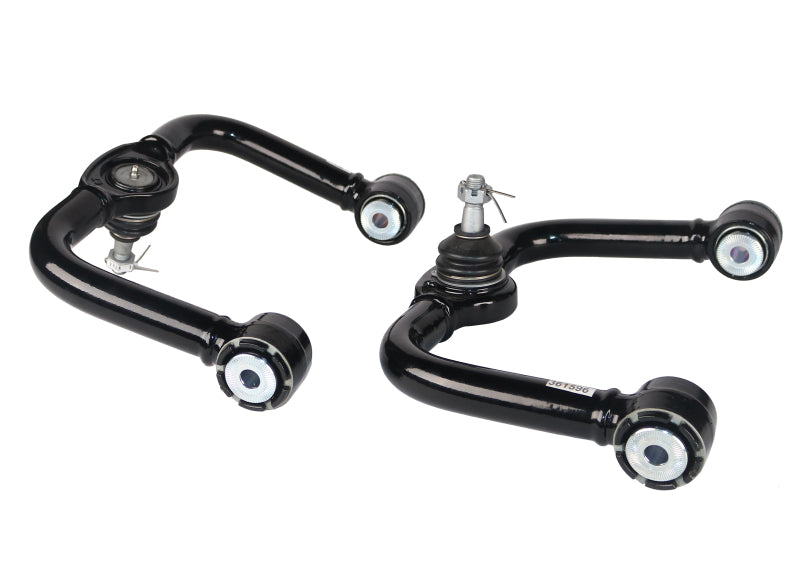

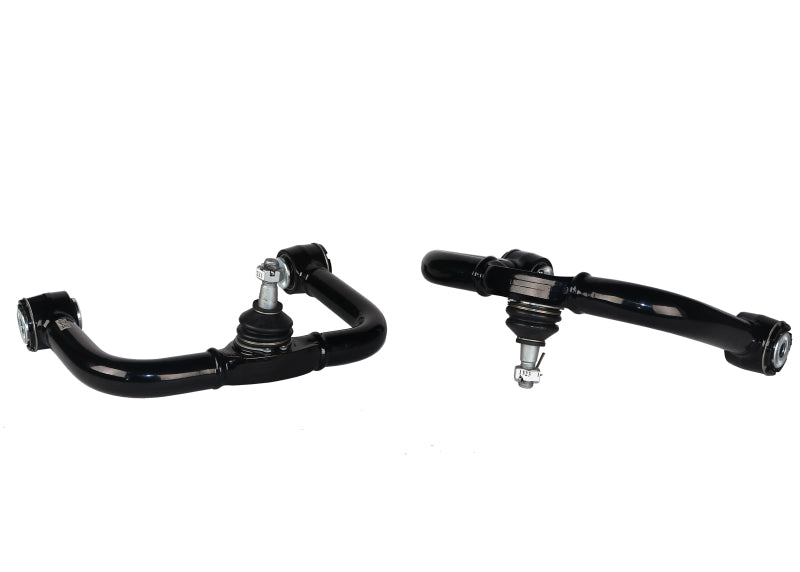

A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2013-2019	Nissan	Frontier	Desert Runner
2005-2010	Nissan	Frontier	LE
2005-2008	Nissan	Frontier	Nismo Off-Road
2009-2021	Nissan	Frontier	PRO-4X
2011-2021	Nissan	Frontier	S
2005-2010	Nissan	Frontier	SE
2011-2019	Nissan	Frontier	SL
2011-2021	Nissan	Frontier	SV
2005-2010	Nissan	Frontier	XE
