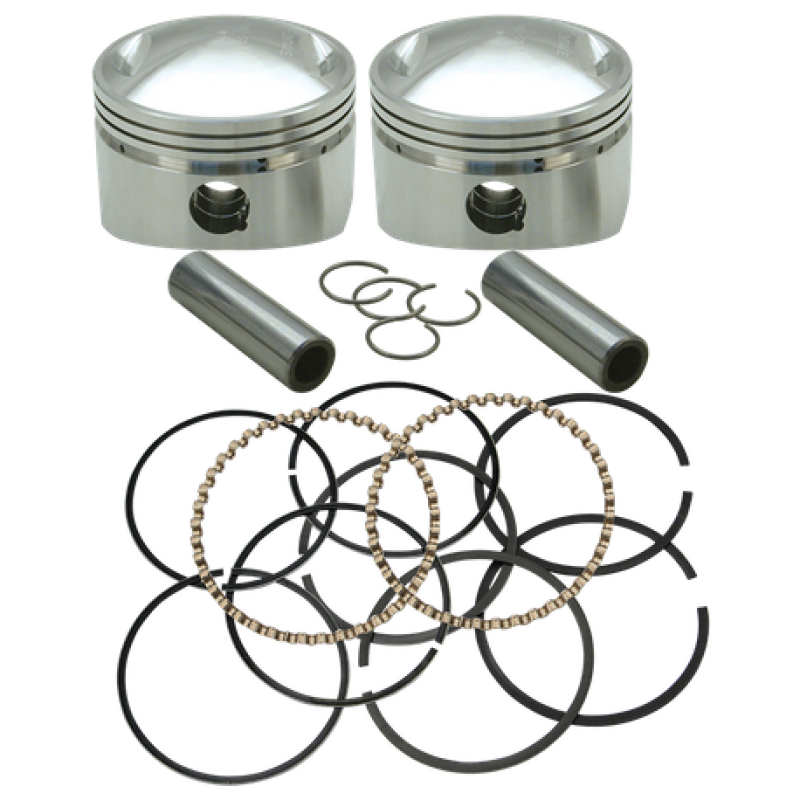

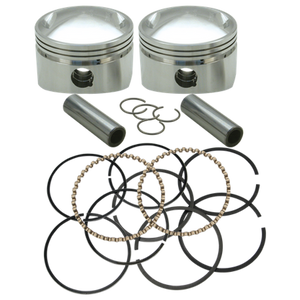

S&S 106-5789 Cycle 36-84 BT 3-5/8in Piston Set - .060in

S&S 106-5789 Cycle 36-84 BT 3-5/8in Piston Set - .060in

Brand: S&S Cycle

MPN: 106-5789

Product Department: Engine Components

Product Category: Piston Sets - Powersports

Box Quantity: 1

Weight: 3.05 lbs

Height: 5 Inches

Width: 5 Inches

Length: 9 Inches

CARB Status: Yes

These forged 3 5/8" bore stroker piston replaces several cast and forged big bore pistons that S&S® previously offered. Applications for this piston include 88" (4 1/4" stroke), 93" (4 1/2" stroke), and 96" (4 5/8" stroke) engines with stock 8 1/2" diameter flywheels, and 98" (4 3/4" stroke) and 103" (5" stroke) engines with 8 1/4" small diameter flywheels. As with the new stock bore stroker piston, the modern metallurgy and advanced skirt profiles allow a relatively close piston fit for low engine noise and long engine life. S&S® will fit these pistons to your existing cylinders (when purchasing new cylinders, pistons can be fit to them as an option.

This Part Fits:

Year	Make	Model	Submodel
1980-1984	Harley-Davidson	FLHS Electra Glide Sport	Base
1980-1983	Harley-Davidson	FLT Tour Glide	Base
