Hotchkis 4012 70-73 fits Camaro/fits Firebird Subframe Connector Kit

Hotchkis 4012 Hotchkis 70-73 fits Camaro/fits Firebird Subframe Connector Kit

Brand : Hotchkis

MPN : 4012

AlternatePartNumber : hot4012

UPC : 00810361037542

Product Department : Suspension

Product Category : Chassis Bracing

BoxQuantity : 1

Length : 43.7 inches

Width : 9.8 inches

Height : 4.6 inches

Weight : 23.6 lbs

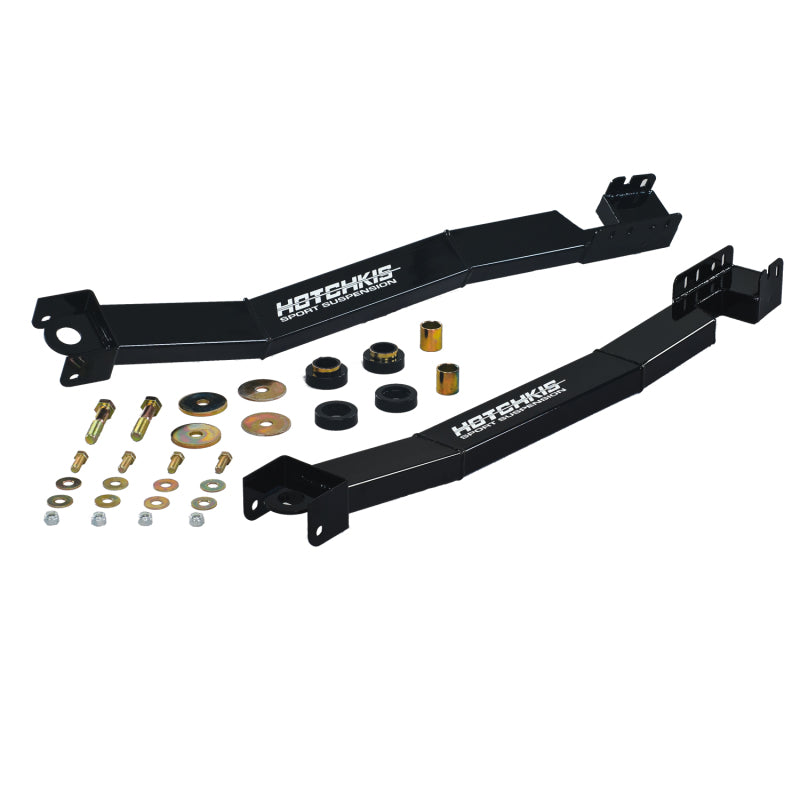

Hotchkis Sport Suspension 4012 1970-1973 Camaro/Firebird Sub Frame Connectors. The Hotchkis Performance sub-frame connectors for 70-73 F-Body cars are designed to add rigidity to the chassis to improve vehicle performance by reducing chassis flex. Fabricated from 1.5 in. x 3 in. .120 wall rectangular steel these TIG-welded connectors are powder coated gloss black. Installation of these connectors does not require modifications or cutting of the floor boards. The rear mount is a weld in while the front mount is a bolt in with the option to weld. This is a must have finishing touch for any F-Body restoration. Features: Powder Coated Gloss Black Finish TIG-welded Fabricated from 1.5 in. x 3 in. .120 wall rectangular steel. Rigidly connects the front subframe to rear chassis frame rail which dramatically reduces chassis flex during hard cornering and acceleration. Does not require cutting or modifying the floor. Front is optional weld or bolt-on. Allows for front subframe removal if needed. Tucked-in design gives excellent ground clearance. Benefits: Improves vehicle handling. Improves vehicle traction. Reduced chassis flex.
Installation Instructions
Certificate of Origin
Warranty


This Part Fits:

Year	Make	Model	Submodel
1970-1973,1975	Chevrolet	Camaro	Base
1973	Chevrolet	Camaro	LT
1970-1973	Chevrolet	Camaro	RS
1970-1972	Chevrolet	Camaro	SS
1970-1973	Chevrolet	Camaro	Z28
1970-1973	Pontiac	Firebird	Base
1970-1973	Pontiac	Firebird	Esprit
1970-1973	Pontiac	Firebird	Formula
1970-1973	Pontiac	Firebird	Trans Am
