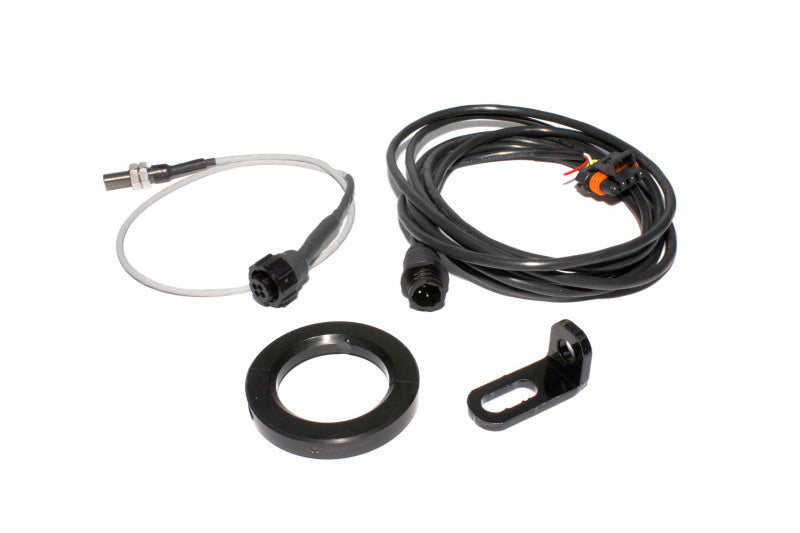

FAST 301437 Sensor Kit Driveshaft Speed-1

FAST 301437 Sensor Kit Driveshaft Speed-1

Brand : FAST

MPN : 301437

AlternatePartNumber : fst301437

UPC : 036584171096

Product Department : Data Acquisition

Product Category : Data Acquisition

BoxQuantity : 1

Length : 12.0 inches

Width : 6.5 inches

Height : 2.75 inches

Weight : 1.0 lb

Prop65 : Yes

Not CARB Legal

The XFI Driveshaft Speed Sensor Kit from FAST accurately measures driveshaft speed to provide better data for the traction control unit. Two magnets are fitted to the collar around the pinion yoke, which attaches to the driveshaft. When the magnet passes the pickup, it sends a signal to the XFI unit. The XFI uses that signal to calculate driveshaft RPM and also driveshaft acceleration. As a result, the XFI Driveshaft Speed Sensor Kit provides a much more accurate data reading than attempting to determine driveshaft speed solely through engine RPM. Perfect for drag race applications, this unit also provides a MPH reading, and, if the user enters tire size, miles per gallon.
