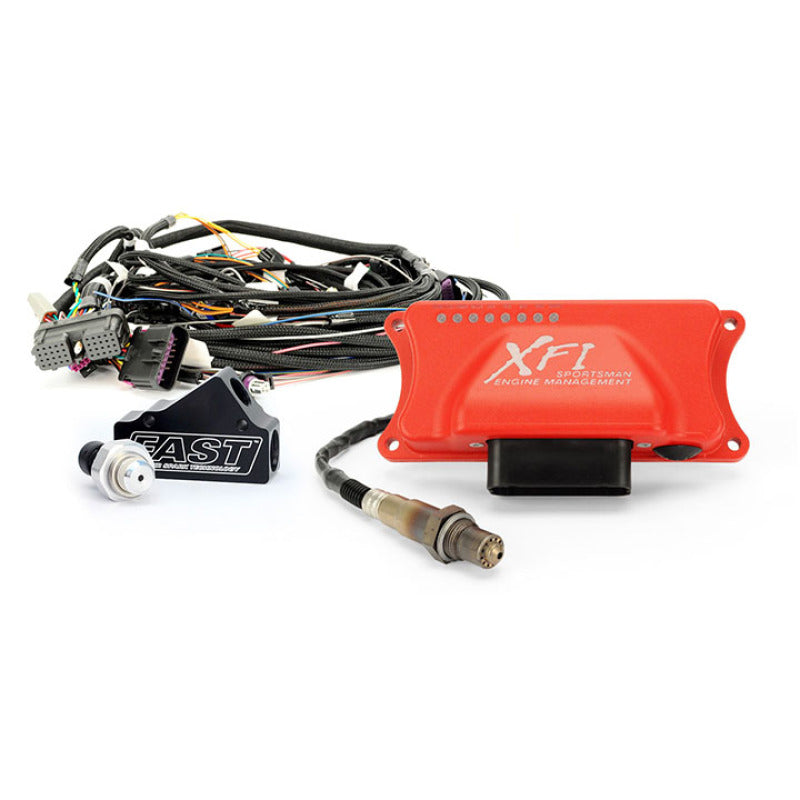

FAST 303000 Engine Control System XFI

FAST 303000 Engine Control System XFI

Brand : FAST

MPN : 303000

AlternatePartNumber : fst303000

UPC : 036584276852

Product Department : Ignition

Product Category : Ignition Controllers

BoxQuantity : 1

Length : 40.0 inches

Width : 28.0 inches

Height : 22.5 inches

Weight : 55.0 lbs

Prop65 : Yes

Not CARB Legal

most users will use Speed Density but the Alpha-N option is specifically added to serve sportsman drag racers looking for absolute consistency. The FAST XFI Sportsman System features full tables to monitor fueling, acceleration fuel, timing and air/fuel targets, while full function data logging is also included. It supports both naturally aspirated and boosted applications up to 5 BAR, is compatible with wet nitrous and has nitrous timing retard control. Built-in CAN network support for the EZ-TCU, EZ-LS and XIM means users can easily plug-and-play those components with the included CAN wire. The FAST XFI Sportsman Engine Management System also features a Bosch wide-band 02 sensor, utilizes built-in diagnostic LEDs, a waterproof ECU enclosure and includes a premium, mesh-type, wire loom multi-port harness. Compatible with return-style and returnless fuel systems, XFI Sportsman is designed for use with high-impedance injectors and works with a variety of multi-port systems or either generation of the FAST EZ-EFI throttle body. XFI Sportsman is conveniently configurable to work with FAST distributors, FAST crank triggers, EZ-LS, XIM or the RPM/tach signal from an aftermarket CD ignition box, HEI big cap distributor or included tach adapter.
