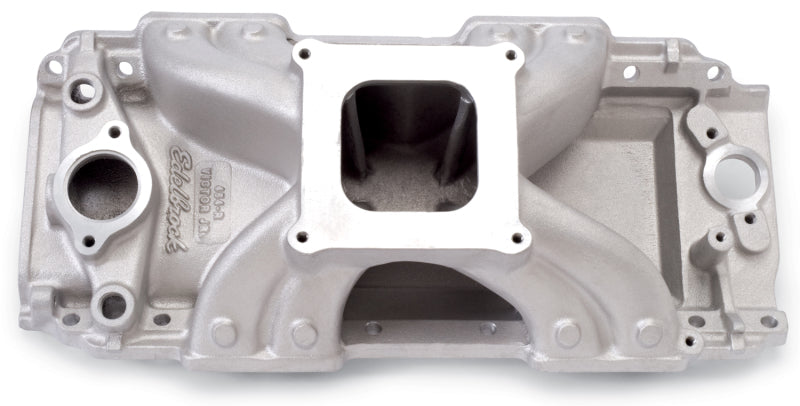

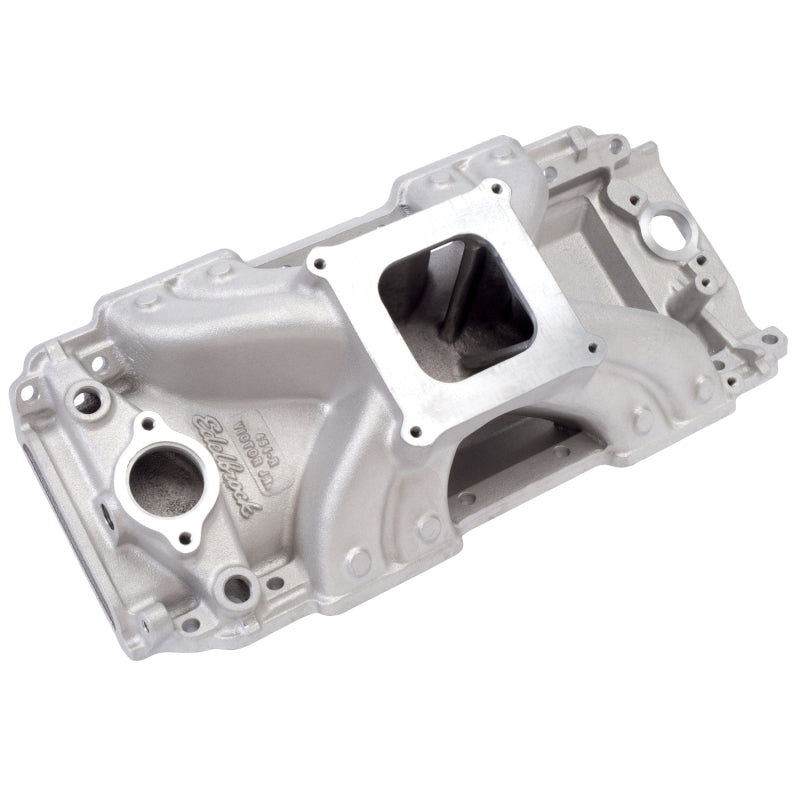

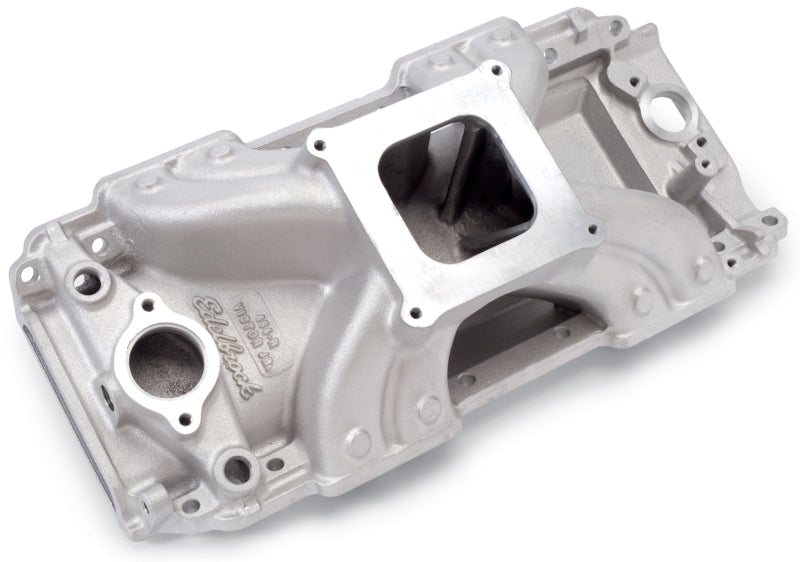

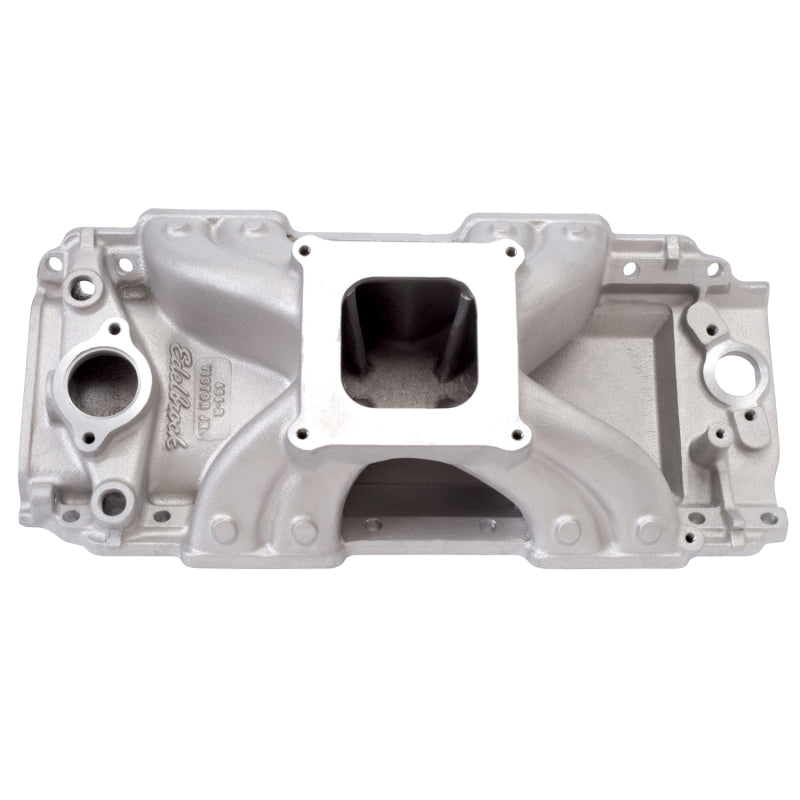

Edelbrock 2902 Victor 454-R 850 Manifold

Edelbrock 2902 Victor 454-R 850 Manifold

Brand : Edelbrock

MPN : 2902

AlternatePartNumber : ede2902

UPC : 85347029020

Product Department : Engine Components

Product Category : Intake Manifolds

BoxQuantity : 1

Length : 23.63 inches

Width : 14.75 inches

Height : 7.5 inches

Weight : 22.55 lbs

Prop65 : Yes

Not CARB Legal

Edelbrock part #2902 Victor Jr. 454-R intake manifold is designed for competition 396-502 big-block Chevys with rectangular-port heads. This intake is designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. The Victor Jr. 454-R will fit Edelbrock Victor race heads #77609 and Victor 24-degree #77409, #77459, #77429, #77479 and #77485.
