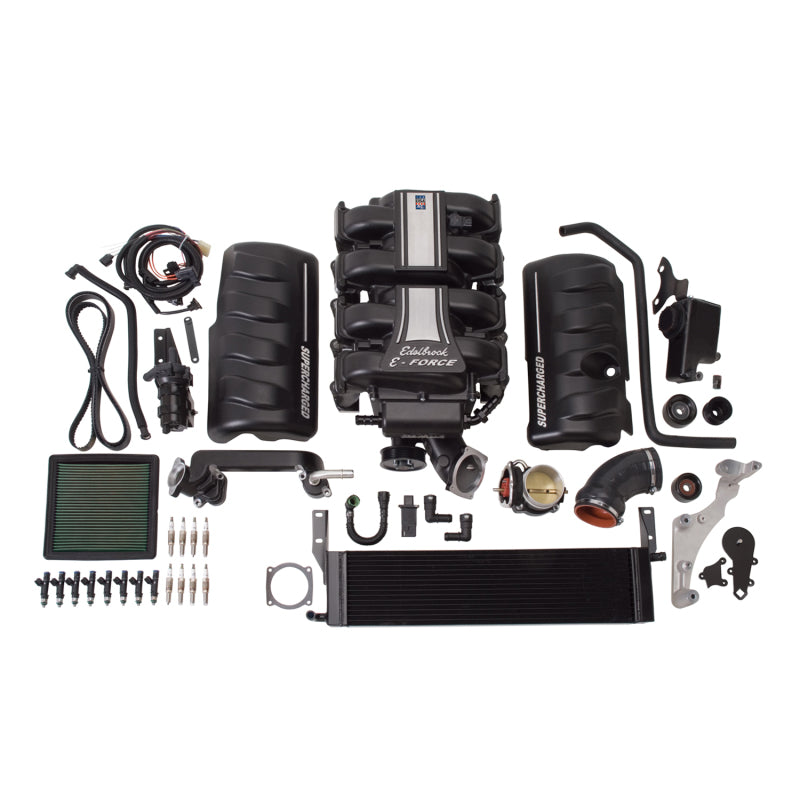

Edelbrock 15800 Supercharger Stage 1 - Street Kit 2005-2009 fits Ford Mustang 4 6L 3V w/ o Tuner

Edelbrock 15800 Supercharger Stage 1 - Street Kit 2005-2009 fits Ford Mustang 4 6L 3V w/ o Tuner

Brand : Edelbrock

MPN : 15800

AlternatePartNumber : ede15800

UPC : 85347158003

Product Department : Forced Induction

Product Category : Superchargers

BoxQuantity : 1

Length : 50.0 inches

Width : 40.0 inches

Height : 26.0 inches

Weight : 174.0 lbs

Prop65 : Yes

CARB Legal : YES

EO Number : D-215-89

EPA Status : Compliant

The Edelbrock supercharger Stage 1 Street system part #15800 for 2005-09 Ford Mustangs increases the performance of your 4.6L 3V engine to 466 horsepower and 439 ft-lbs of torque at the crank when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Material Safety Data Sheet


This Part Fits:

Year	Make	Model	Submodel
2008-2009	Ford	Mustang	Bullitt
2005-2009	Ford	Mustang	GT
2007-2008	Ford	Mustang	Shelby GT
