Edelbrock 7516 RPM Air-Gap Vortec Manifold

Edelbrock 7516 RPM Air-Gap Vortec Manifold

Brand : Edelbrock

MPN : 7516

AlternatePartNumber : ede7516

UPC : 85347075164

Product Department : Engine Components

Product Category : Intake Manifolds

BoxQuantity : 1

Length : 23.8 inches

Width : 14.9 inches

Height : 7.4 inches

Weight : 19.3 lbs

Prop65 : Yes

Not CARB Legal

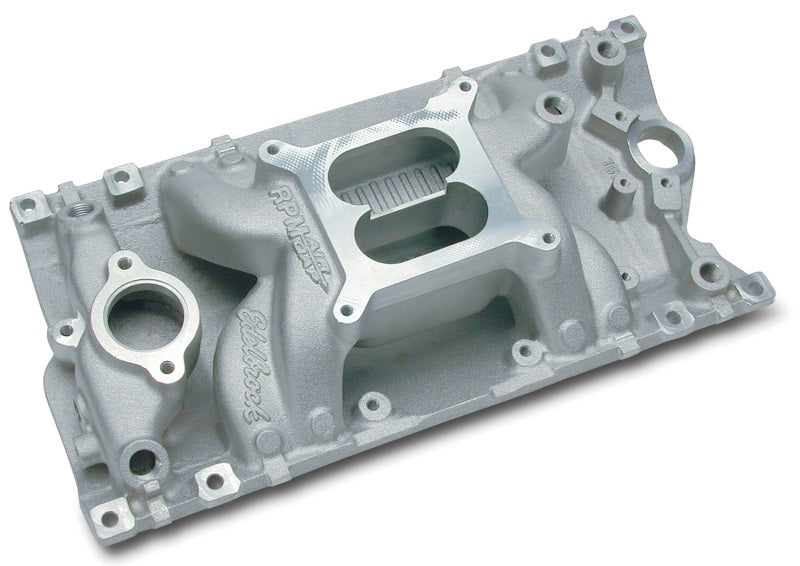

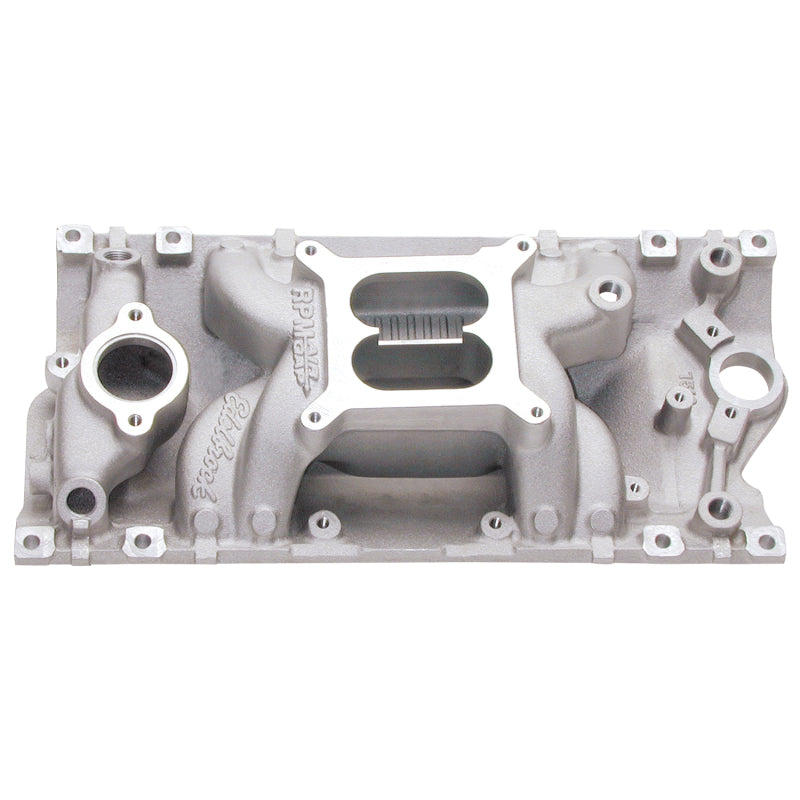

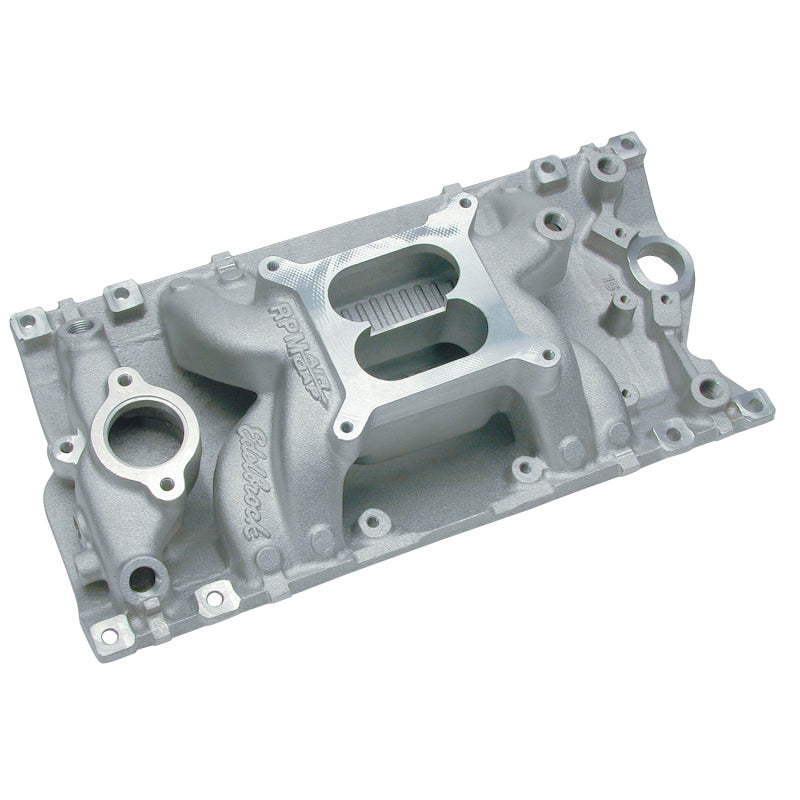

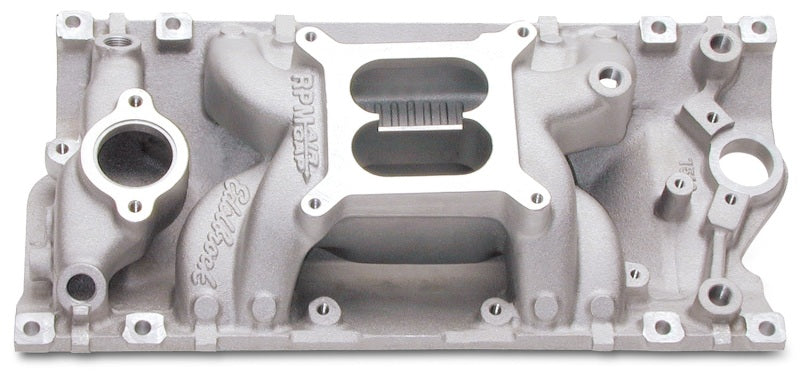

Edelbrock part #7516 RPM Air-Gap intake manifold is based on the powerful Performer RPM Vortec #7116. This single four-barrel intake is designed for 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. An external water bypass boss is machined into the front of the water crossover for use on 1996 and later Vortec production engines. Includes rear water outlets, nitrous bosses, a temp sensor boss that clears all waternecks, two distributor clamp locations and a heater outlet boss that's angled for proper fit over the valve cover. Accepts 1976 and later alternator and air-conditioning brackets for street installations. For square-bore carbs. No provision for exhaust-heated chokes and no exhaust crossover. Will not fit under stock Corvette hood.
