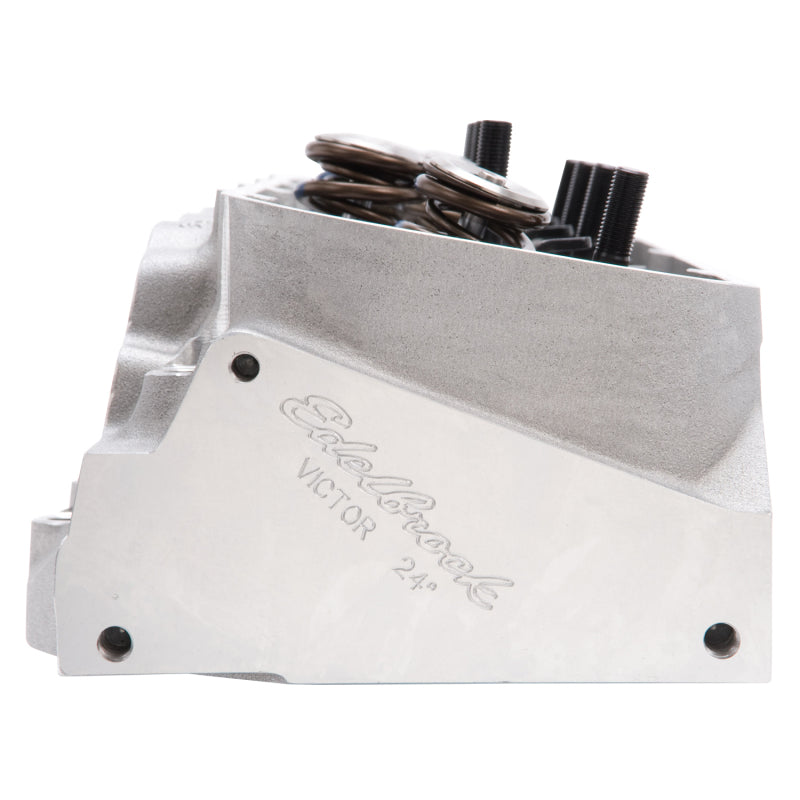

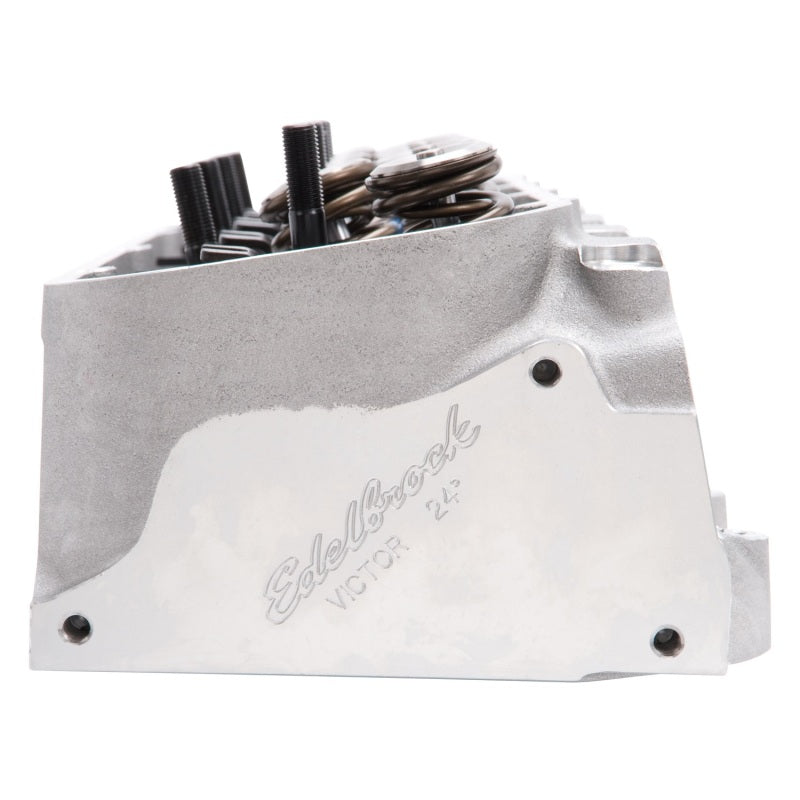

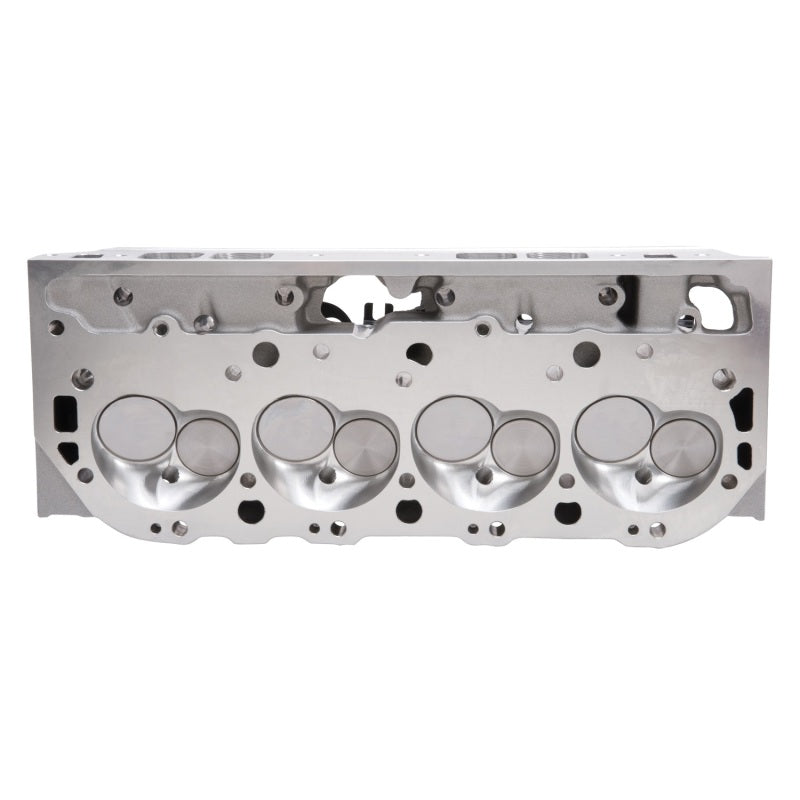

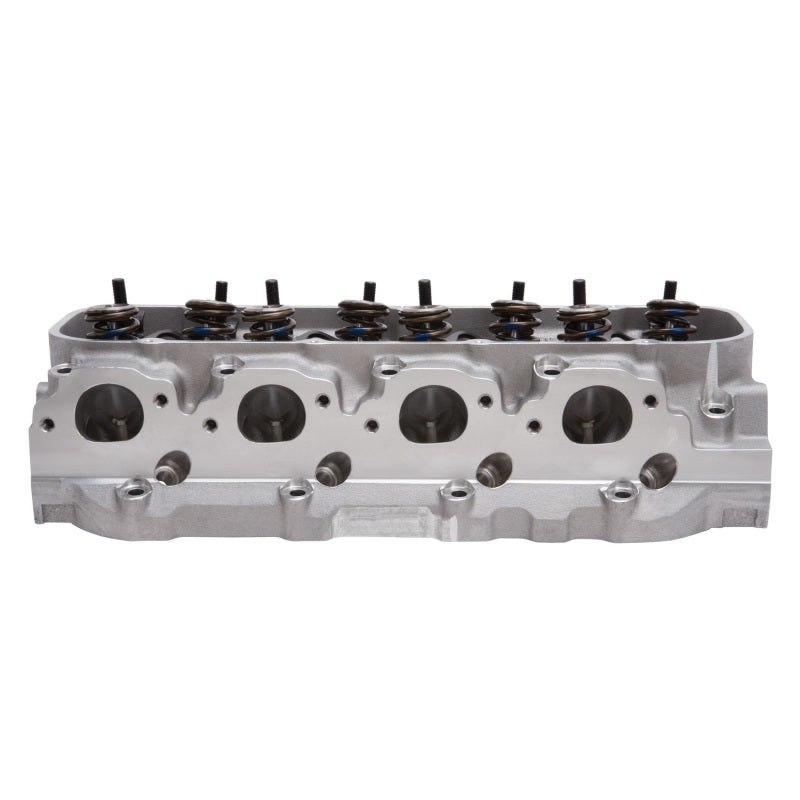

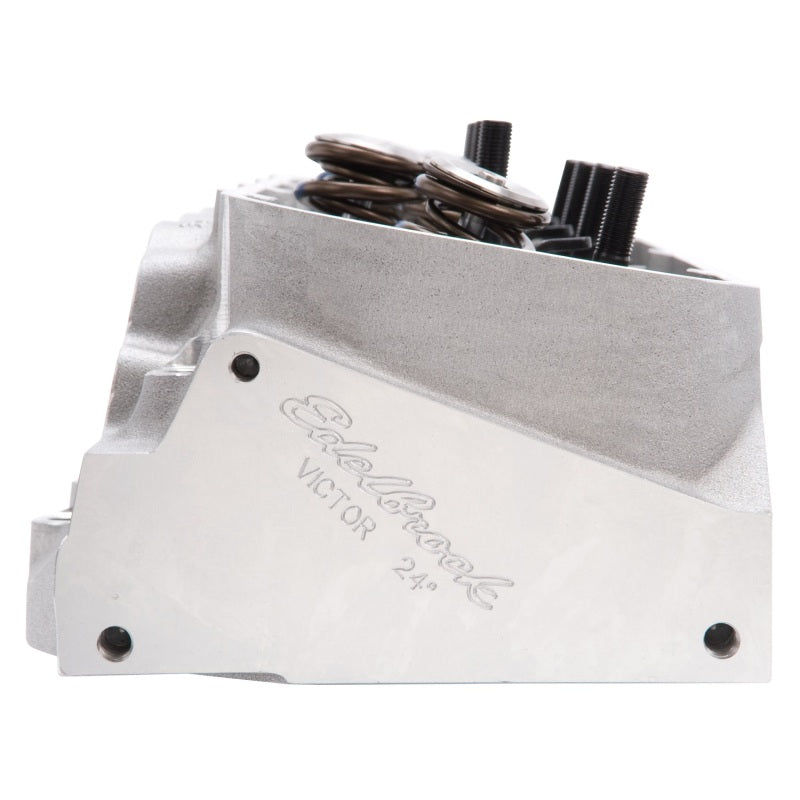

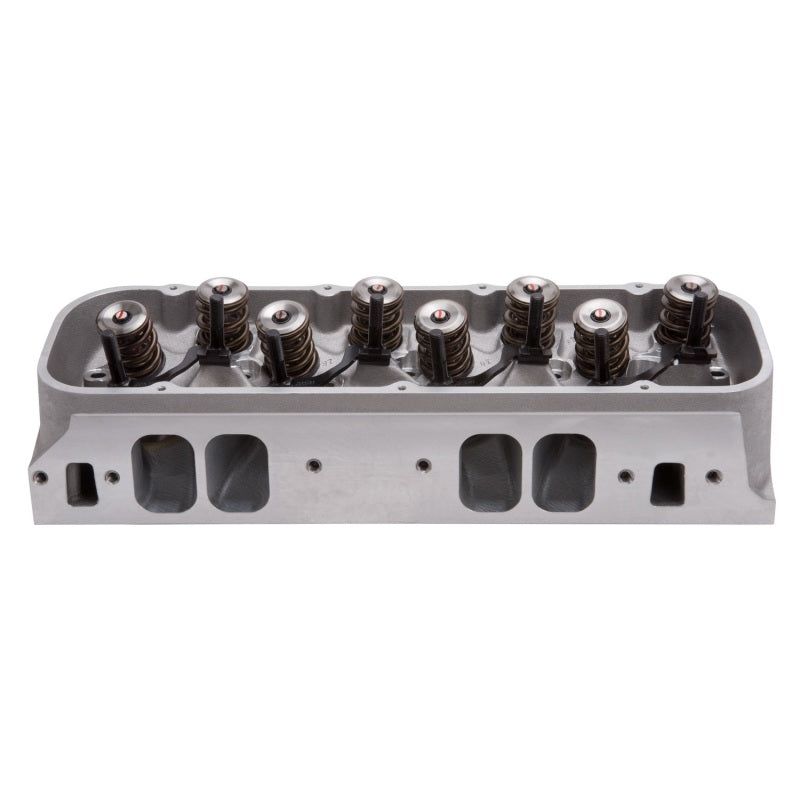

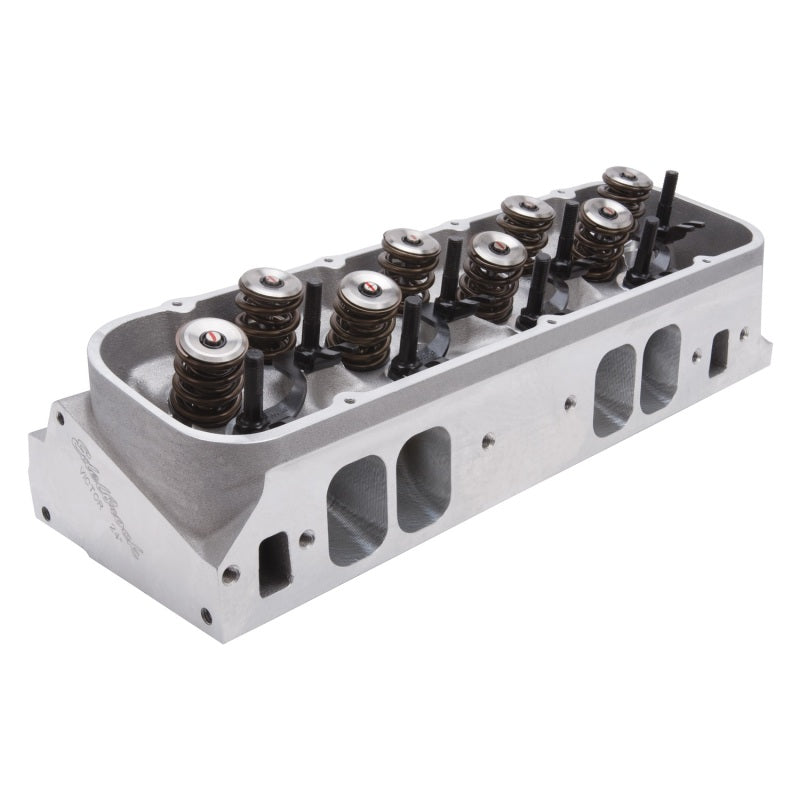

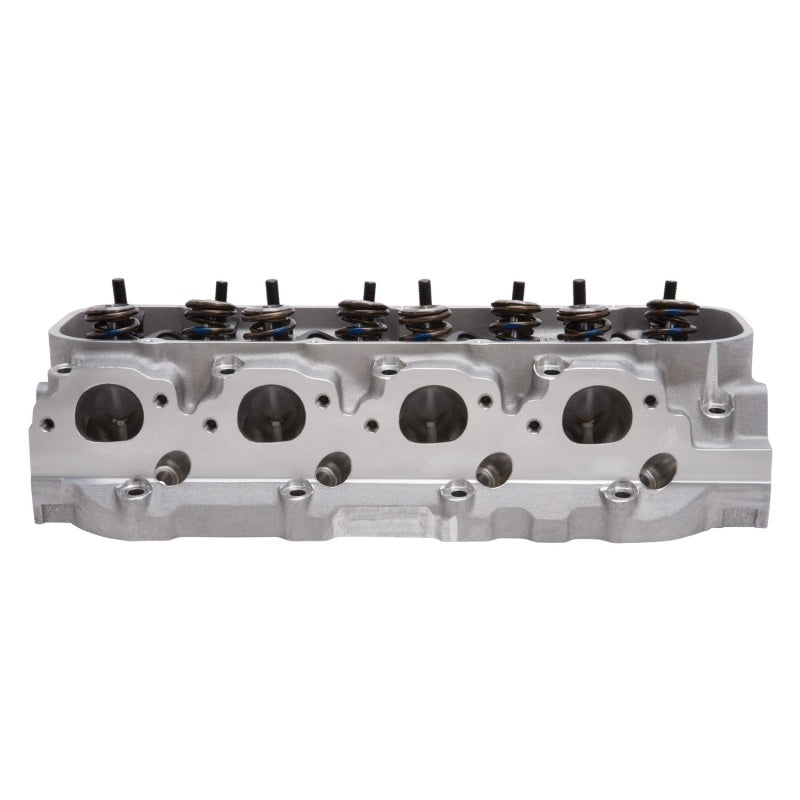

Edelbrock 61409 Race Cyl Head Musi CNC BBC Victor 24Deg Complete

Edelbrock 61409 Race Cyl Head Musi CNC BBC Victor 24Deg Complete

Brand : Edelbrock

MPN : 61409

AlternatePartNumber : ede61409

UPC : 85347614097

Product Department : Engine Components

Product Category : Heads

BoxQuantity : 1

Length : 24.75 inches

Width : 10.44 inches

Height : 8.25 inches

Weight : 10.55 lbs

Prop65 : Yes

Not CARB Legal

Edelbrock and Pat Musi Performance have combined efforts to produce the finest standard intake port location big-block Chevy head available. The Edelbrock #61409 Victor 24deg CNC cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete cylinder head with Manley dual-spring valve springs and titanium retainers good for up to .880" lift. The port designs are large oval (367 lh / 377 rh) that produce impressive flow - out-of-the-box. The exhaust port exits are raised .750" to greatly improve exhaust flow and power. Off the shelf large oval-port intakes are available through Edelbrock.
