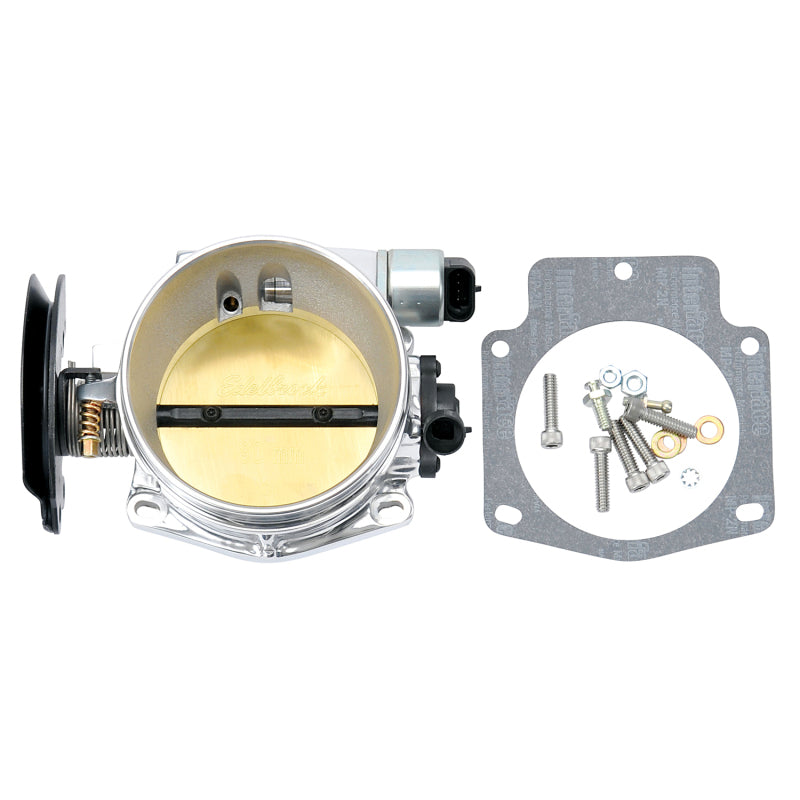

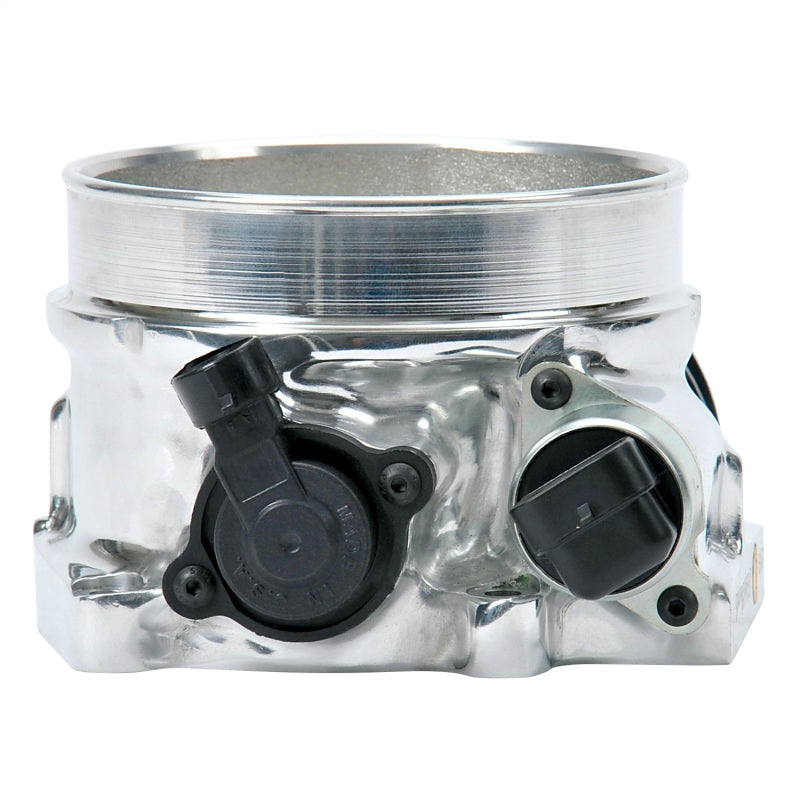

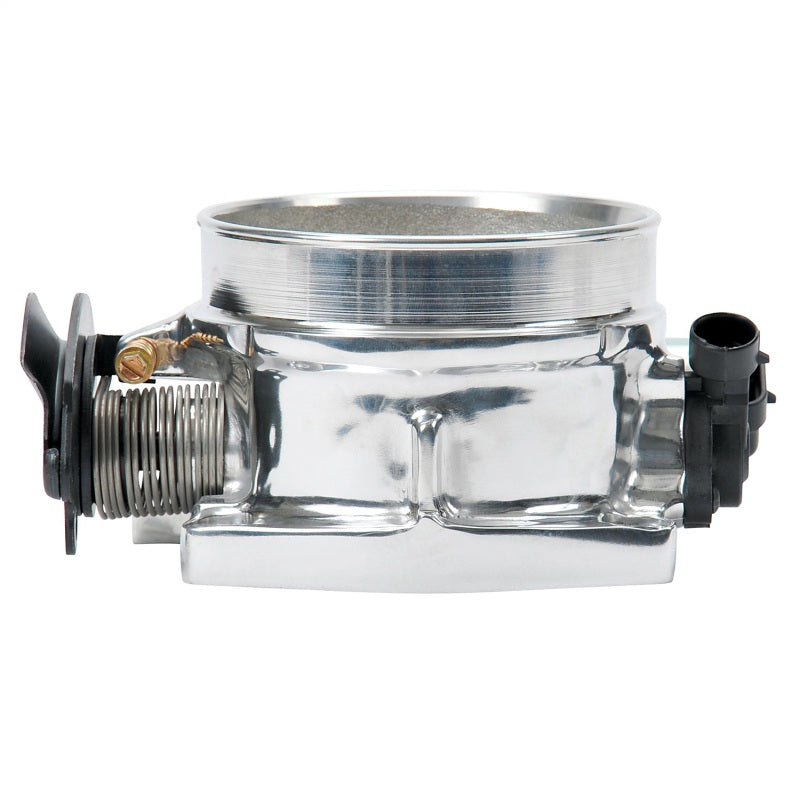

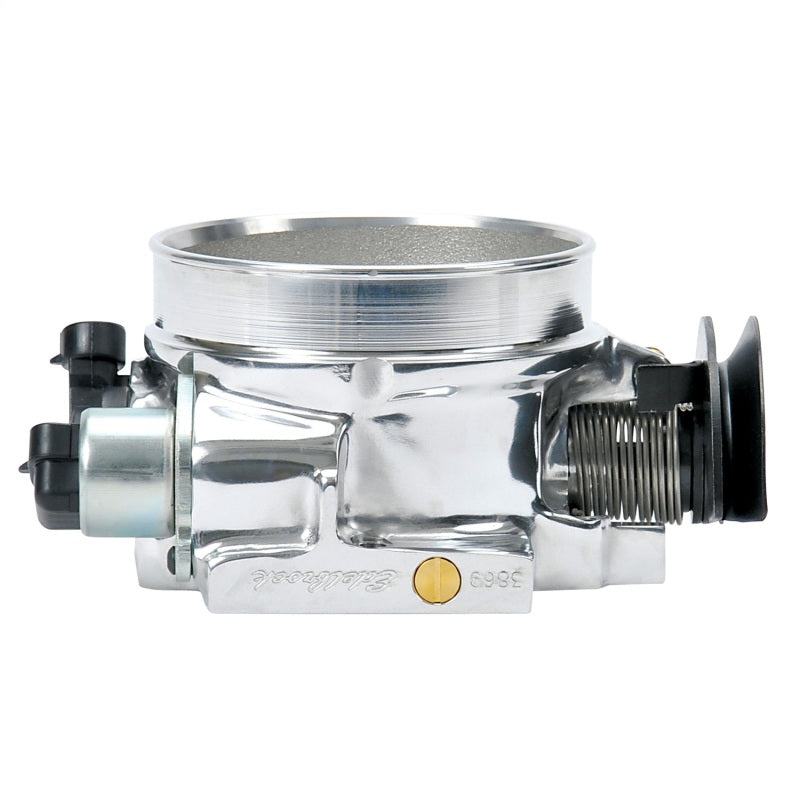

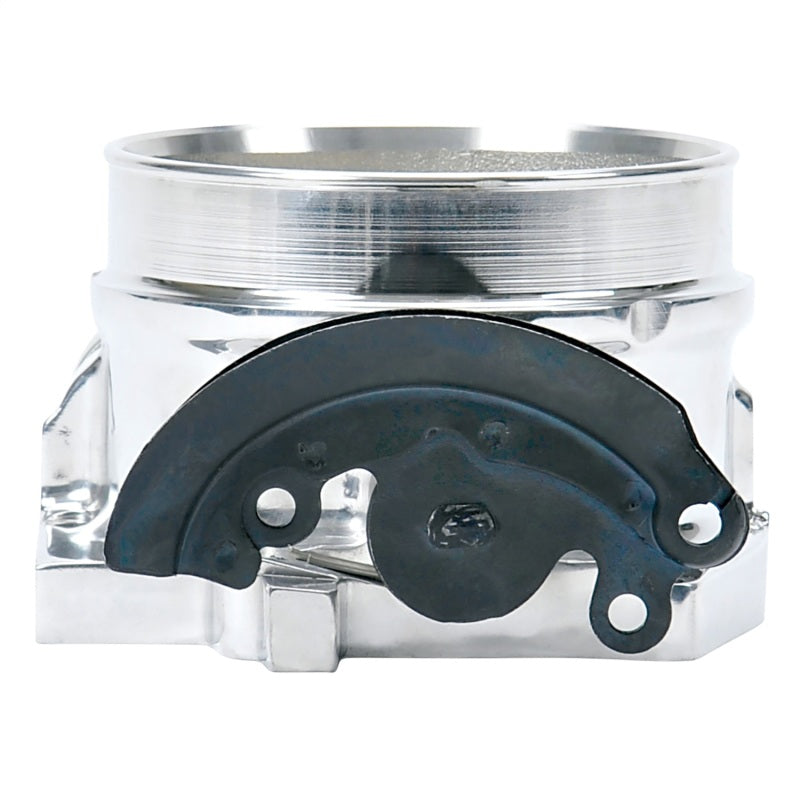

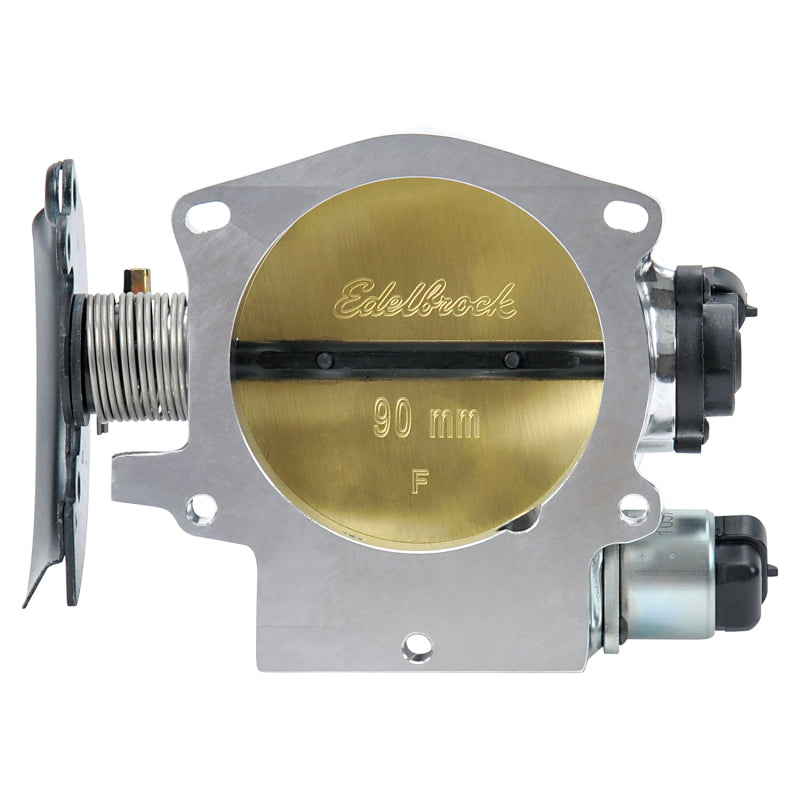

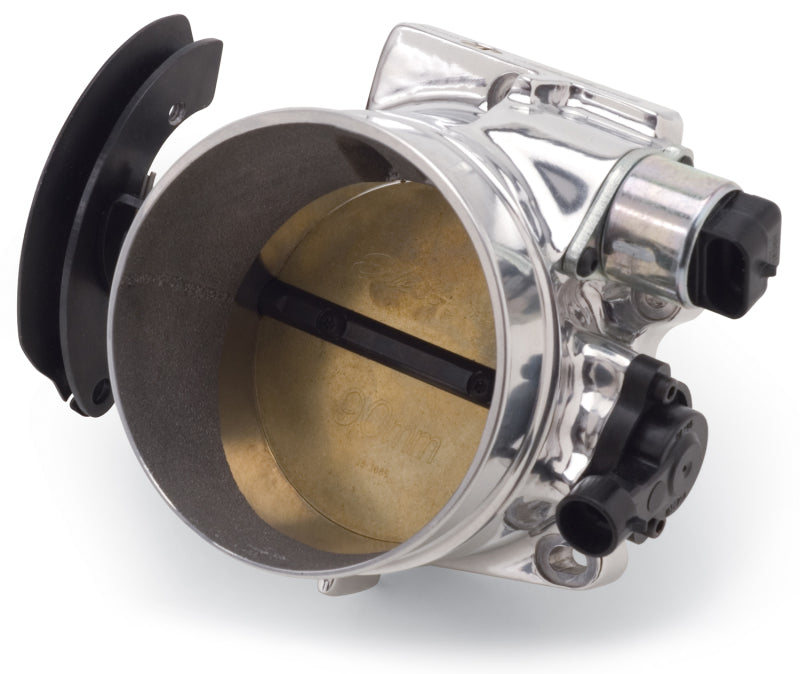

Edelbrock 38691 EFI Throttle Body Pro-Flo XT 90mm Polished

Edelbrock 38691 EFI Throttle Body Pro-Flo XT 90mm Polished

Brand : Edelbrock

MPN : 38691

AlternatePartNumber : ede38691

UPC : 85347386918

Product Department : Engine Components

Product Category : Throttle Bodies

BoxQuantity : 1

Length : 9.0 inches

Width : 5.75 inches

Height : 3.75 inches

Weight : 3.0 lbs

Prop65 : Yes

Not CARB Legal

The Edelbrock 90mm single bore throttle body is intended for Pro-Flo XT and EFI Victor Elbow applications. It has provisions for either LS1 or LS2 mounting bolt patterns. The throttle body uses LS1 style TPS and IAC. It offers better idle control than other 90mm throttle bodies, because of the addition of an idle bleed screw. By using the bleed screw to create a base amount of idle air flow instead of throttle tip-in, the TPS signal is unaffected. Polished Finish
