AutoMeter 1213 AutoMeter Gauge Quad 5in. 0 Ohm(e) to 90 Ohm(f)Elec Old Tyme White II

AutoMeter 1213 AutoMeter Gauge Quad 5in. 0 Ohm(e) to 90 Ohm(f)Elec Old Tyme White II

Brand : AutoMeter

MPN : 1213

AlternatePartNumber : atm1213

UPC : 46074012136

Product Department : Gauges & Pods

Product Category : Gauges

BoxQuantity : 1

Length : 6.0 inches

Width : 6.0 inches

Height : 5.0 inches

Weight : 1.7 lbs

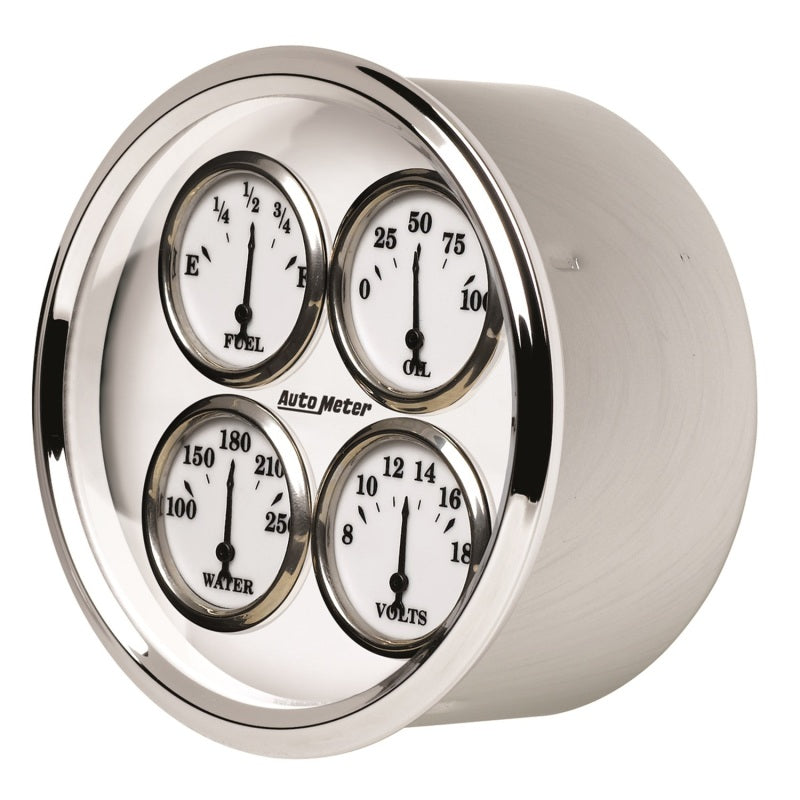

Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 0 Ohms Empty To 90 Ohms Full (Compatible With Amid 60S Through Mid 90S Gm Fuel Level Senders).
Installation Instructions
