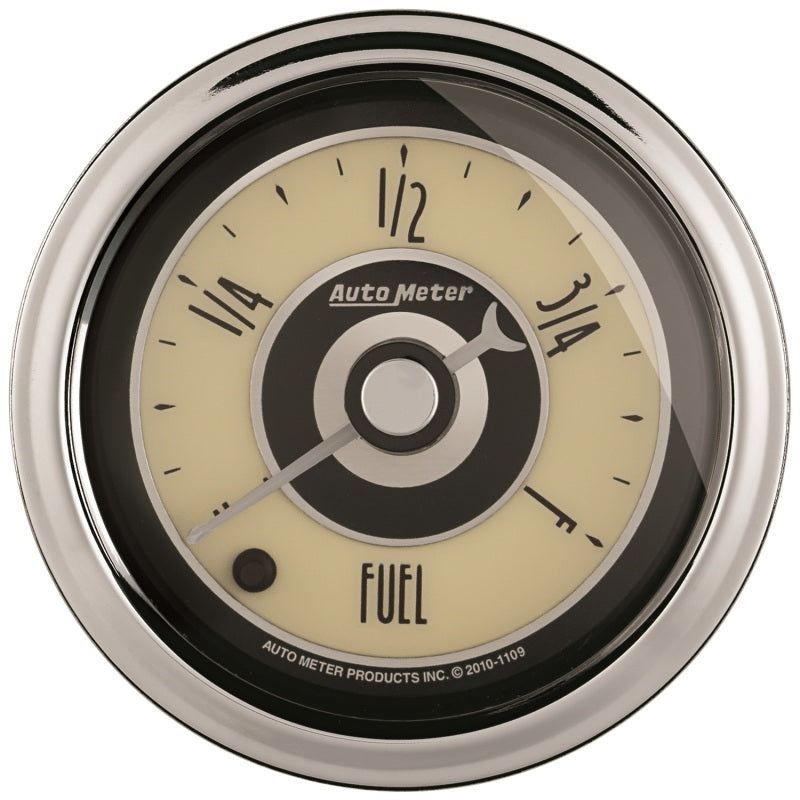

AutoMeter 1108 AutoMeter Gauge Fuel Level 2-1/16in. Programmable Cruiser Ad

AutoMeter 1108 AutoMeter Gauge Fuel Level 2-1/16in. Programmable Cruiser Ad

Brand : AutoMeter

MPN : 1108

AlternatePartNumber : atm1108

UPC : 46074011085

Product Department : Gauges & Pods

Product Category : Gauges

BoxQuantity : 1

Length : 4.8 inches

Width : 4.5 inches

Height : 4.5 inches

Weight : 0.5 lbs

Traditionally, Paring The Proper Fuel Level Level Gauge To The Application Could Be A More Difficult Task Than It Needed To Be. The Autometer Digital Stepper Motor Fuel Level Gauge Drastically Simplifies The Process With Its Easily Configurable Resistance Range. With 7 Common Configurations Stored In Memory From The Factory, The Vast Majority Of All Applications Are Covered. In The Instance Your Fuel Level Sender Is Not Included In These Preconfigured Ranges, An Innovative Custom Calibration Mode Allows Any Sending Unit That Operates Between 0 And 280 Ohms, Empty Or Full, To Be Easily Paired. Our Snapshot" Programming Method Will Allow You To Capture The Empty And Full Readings And The Gauge Does The Rest. No Matter Your Application, There Simply Isnt An Easier Solution For Fuel Level Monitoring Available On The Market. A Direct Plug In Wiring Harness Is Included For Ease Of Installation.
Installation Instructions
