Aeromotive 13136 Adjustable Regulator Billet EFI Bypass - (2) -6 Inlets/(1) -

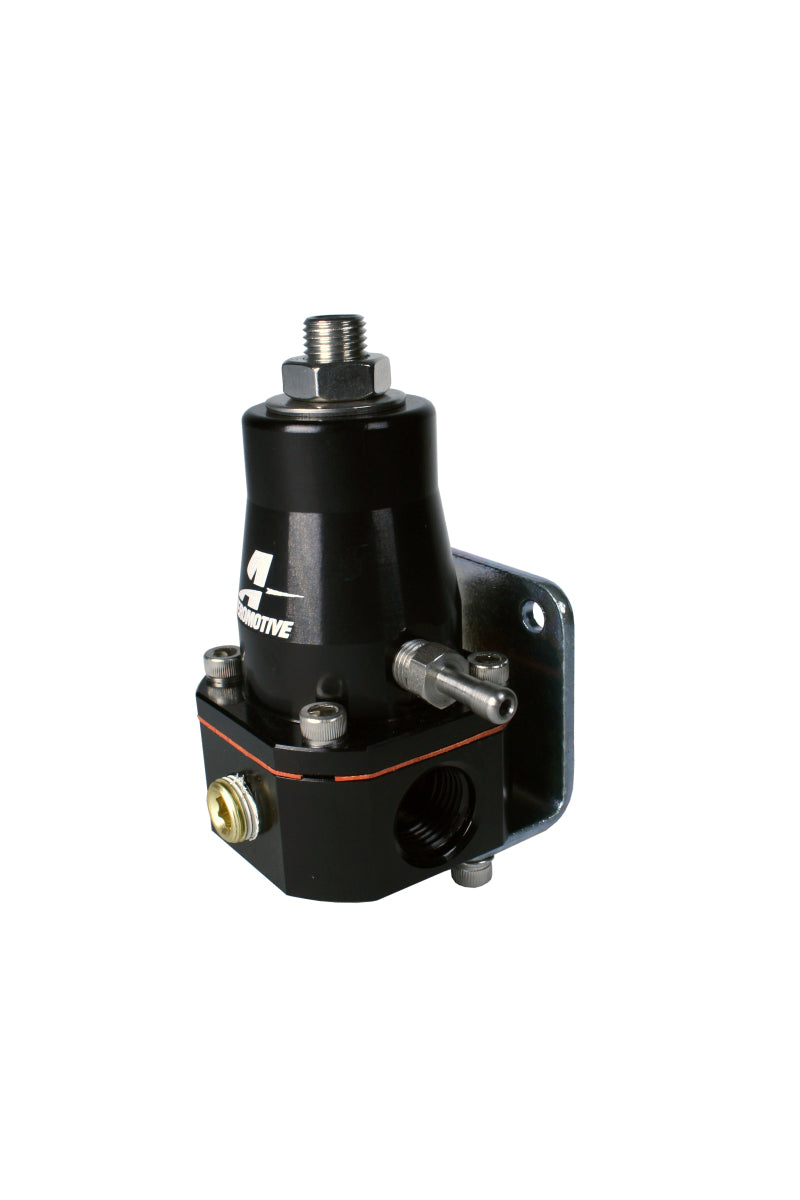

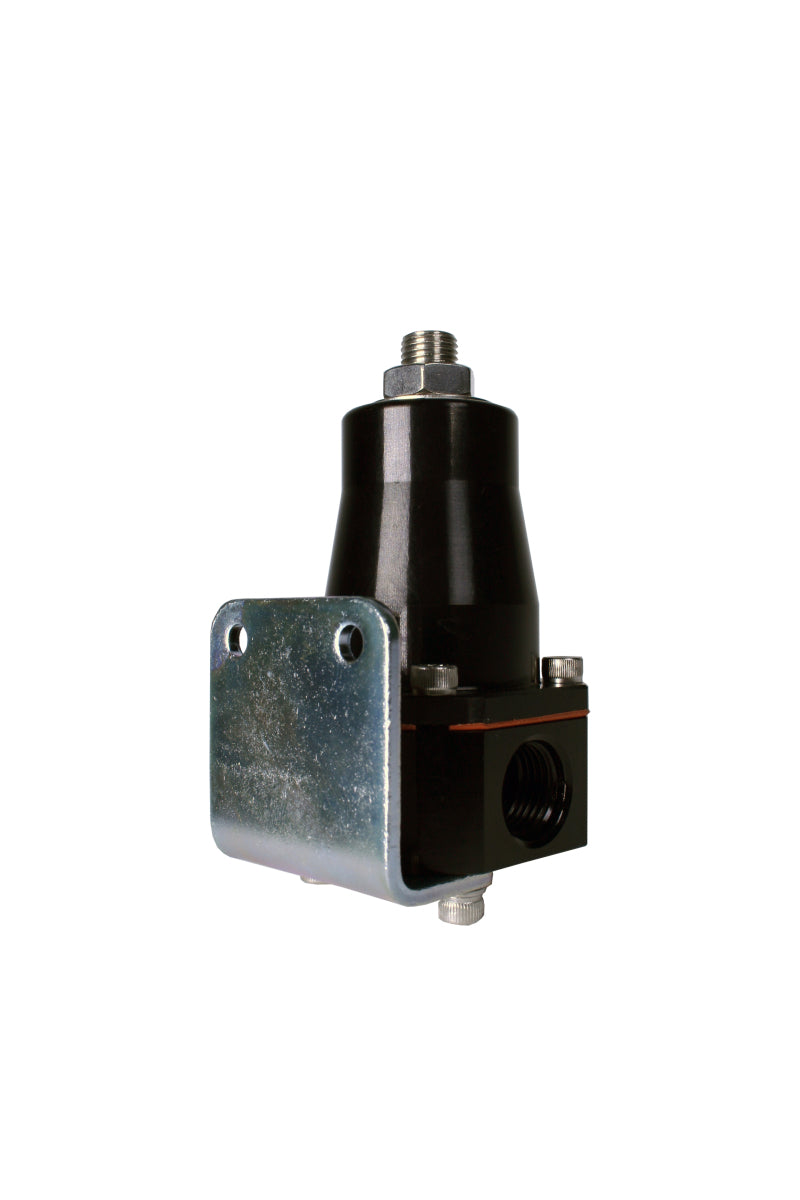

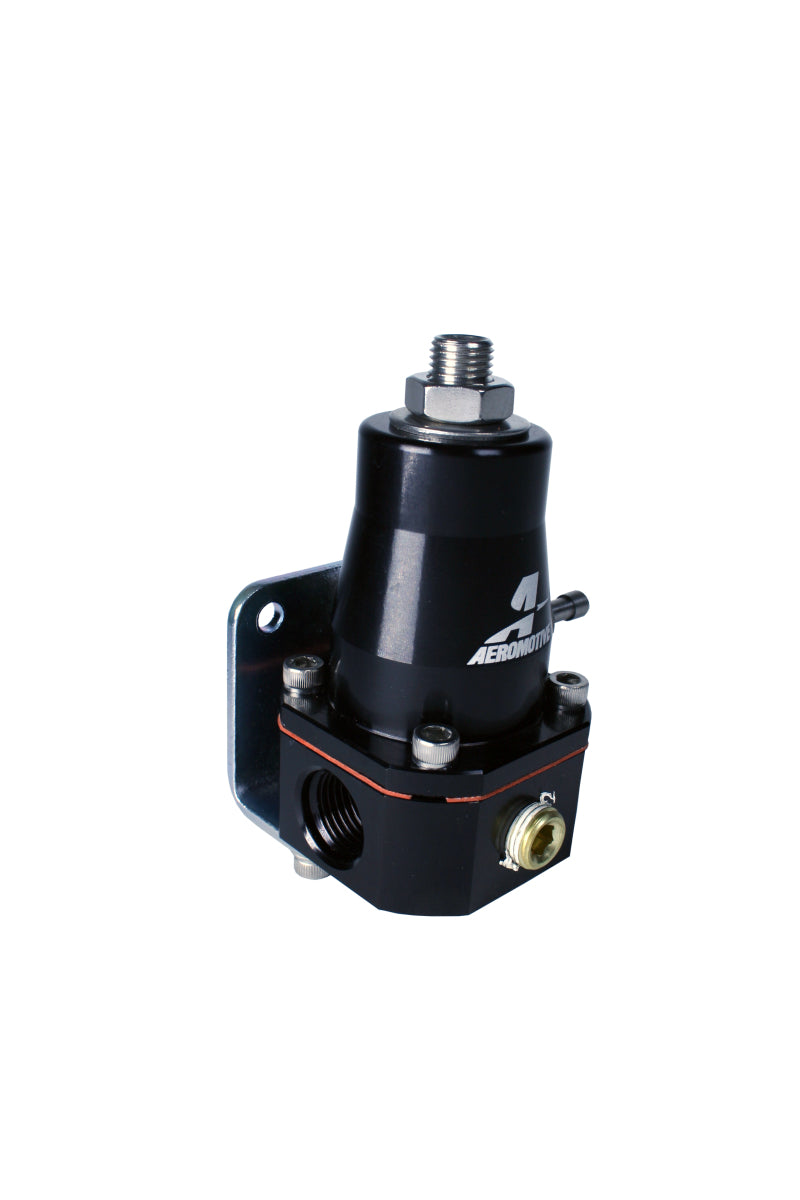

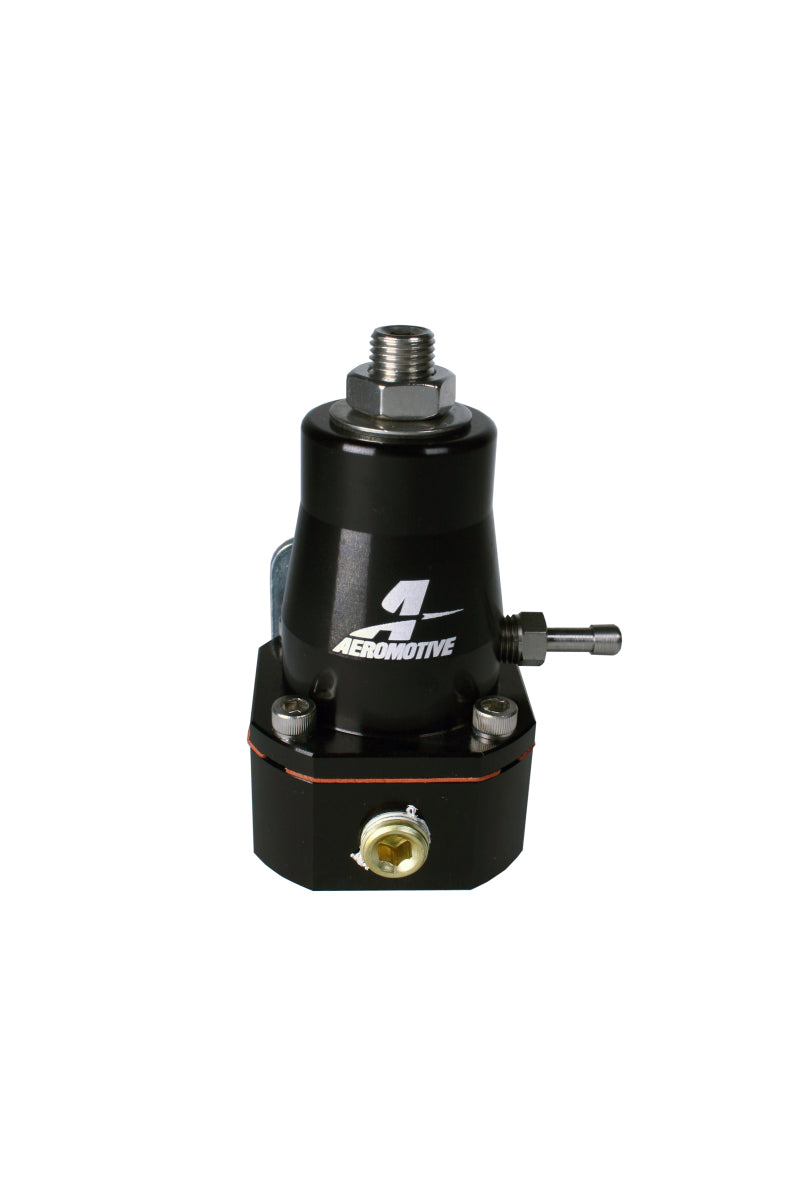

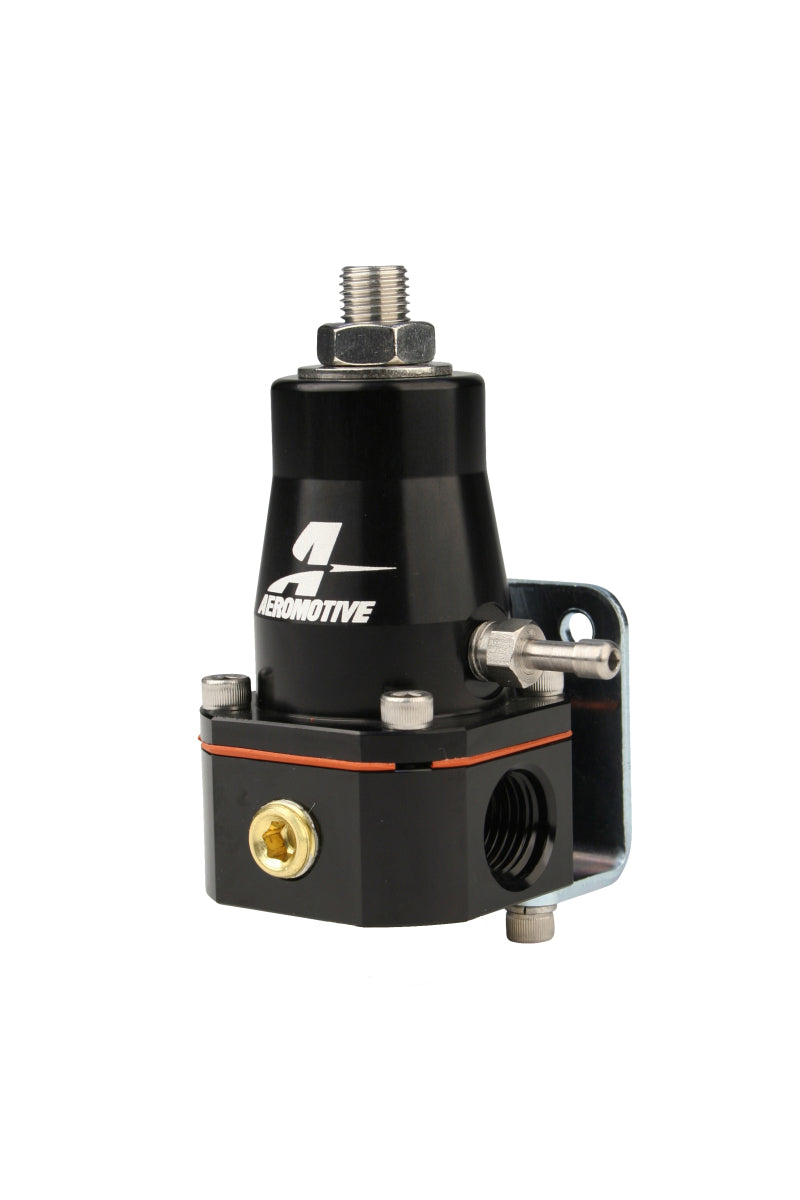

Aeromotive 13136 Aeromotive Adjustable Regulator Billet EFI Bypass - (2) -6 Inlets/(1) -6 Return - Black

Brand : Aeromotive

MPN : 13136

AlternatePartNumber : aer13136

UPC : 684980008494

Product Department : Fuel Delivery

Product Category : Fuel Pressure Regulators

BoxQuantity : 1

Length : 7.1 inches

Width : 5.1 inches

Height : 2.5 inches

Weight : 0.7 lbs

Prop65 : Yes

Not CARB Legal

This EFI Bypass Regulator encompasses features and benefits only found on Aeromotive regulators and in a new smaller and lighter package. Capable of supporting applications up to 1000 HP, the 13136 EFI Bypass Regulator can handle high-flow EFI fuel pumps and the most aggressive street machines; especially those looking for a cleaner, lighter solution where performance is critical or where space is a premium. Base pressure adjustable from 40-75 psi. Fuel pressure rises on a 1:1 ratio with boost. Provides (2) ORB-06 inlet/outlet ports and (1) ORB-06 return port. 1/8? NPT gauge port. Bright Dip Black Anodized Finish. Vacuum boost port. CNC-Machined 6061 T6 billet aluminum construction.
