Description

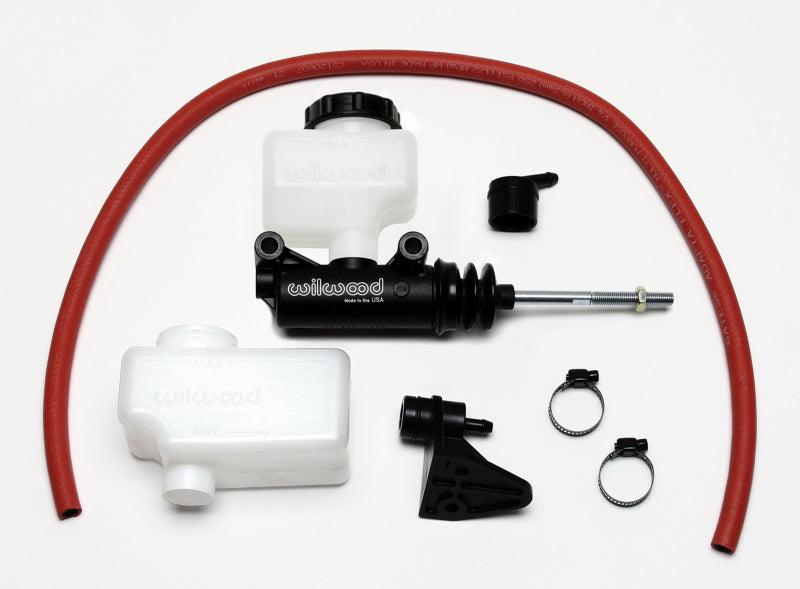

Wilwood 260-12388 Wilwood Short Remote Side Mount M/C Kit 1in Bore
Brand : Wilwood
MPN : 260-12388
AlternatePartNumber : wil260-12388
UPC : 889545067026
Product Department : Brakes, Rotors & Pads
Product Category : Brake Master Cylinder
BoxQuantity : 1
Length : 13.0 inches
Width : 10.56 inches
Height : 3.0 inches
Weight : 2.1 lbs
Wilwood’s Compact Combination (Side Mount) Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3.00” center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
Wilwood 260-12388 Short Remote Side Mount M/C Kit 1in Bore
Manufacturing Part Number (MPN)
260-12388
Price:
Sale price$115.17
