Wilwood 260-13618 Short Remote M/C Kit 5/8in Bore 3/8in-24 Banjo Outlet

Wilwood 260-13618 Wilwood Short Remote M/C Kit 5/8in Bore 3/8in-24 Banjo Outlet

Brand : Wilwood

MPN : 260-13618

AlternatePartNumber : wil260-13618

UPC : 889545067309

Product Department : Brakes, Rotors & Pads

Product Category : Brake Master Cylinder

BoxQuantity : 1

Length : 13.2 inches

Width : 10.4 inches

Height : 2.9 inches

Weight : 1.8 lbs

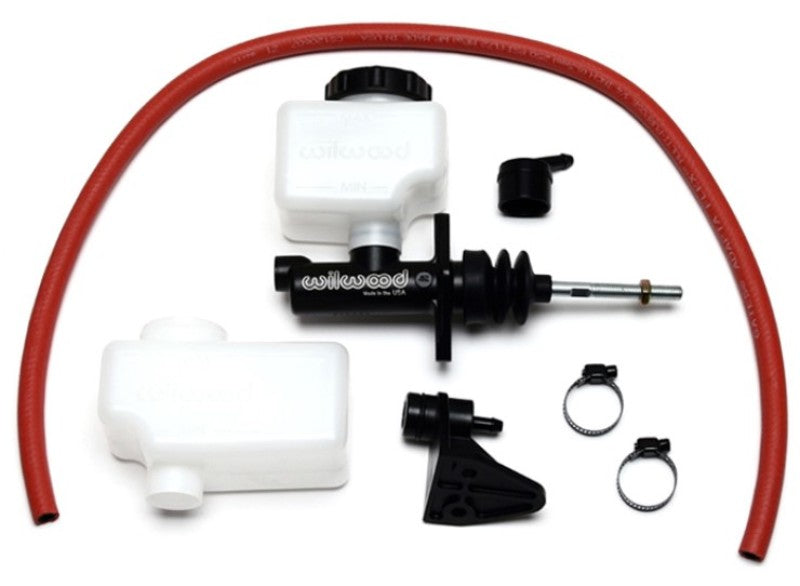

‘This new version of Wilwood's Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
