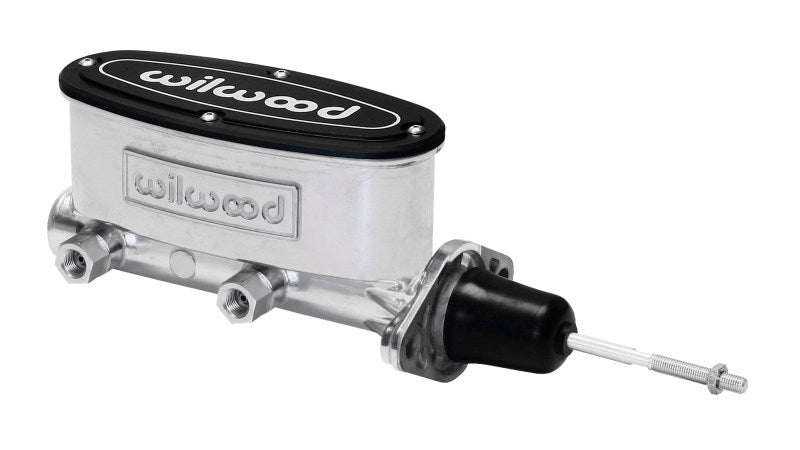

Wilwood 260-9439-P Wilwood High Volume Tandem Master Cylinder - 7/8in Bore Ball Burnished-W/Pushrod
Brand : Wilwood
MPN : 260-9439-P
AlternatePartNumber : wil260-9439-P
UPC : 889545068054
Product Department : Brakes, Rotors & Pads
Product Category : Brake Master Cylinder
BoxQuantity : 1
Length : 13.5 inches
Width : 5.44 inches
Height : 5.13 inches
Weight : 3.0 lbs
Wilwood’s 7/8" or 15/16" bore Tandem Aluminum Master Cylinders available in 3 finishes, plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include a pushrod. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit.
Wilwood 260-9439-P fits High Volume Tandem Master Cylinder - 7/8in Bore Ball Bu
Manufacturing Part Number (MPN)
260-9439-P
Price:
Sale price$329.24
