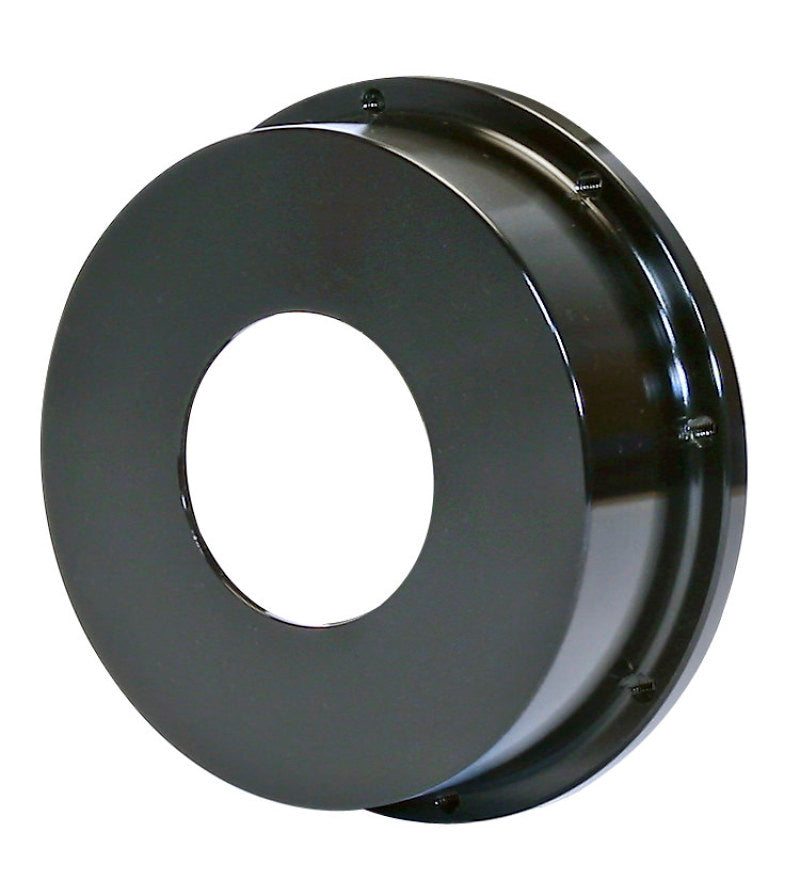

Wilwood 171-3753 Hat-Drag Rear 1.96in Offset Undrilled - 8 on 7.00in

Wilwood 171-3753 Wilwood Hat-Drag Rear 1.96in Offset Undrilled - 8 on 7.00in

Brand : Wilwood

MPN : 171-3753

AlternatePartNumber : wil171-3753

UPC : 889545042955

Product Department : Brakes, Rotors & Pads

Product Category : Brake Rotors - 2 Piece

BoxQuantity : 1

Length : 9.1 inches

Width : 8.8 inches

Height : 2.9 inches

Weight : 1.5 lbs

Wilwood's HD Series Fixed Mount Rotor Hats have a long standing reputation for fit, performance, and durability. HD Series hats are manufactured from premium grade aluminum alloys offering high strength, low weight, and show quality appeal. HD hats have not only been a mainstay in many of Wilwood's racing disc brake conversion kits, but they can cover a range of applications from an OE four lug axle shaft to a Grand-National stock car racing hub. HD hats feature a straight bell construction with a flanged rotor mount ring, Threaded-hole mounts for use with through hole rotors. When used with matching Wilwood rotor hardware, these hats provide solid mounting for a wide range of custom and competition disc brake applications.These features combine to provide maximum radial clearance between the caliper body and the hat. This can be a critical factor when trying to squeeze a large caliper inside a small wheel. Many hats offer multi-lug wheel patterns for added versatility. Some hats can be ordered blank for custom axle building and other unique applications.
