Description
Wilwood 140-12518 Wilwood Forged Superlite 4R ST BB Front Kit Road Race 82-92 fits Camaro//fits Firebird
Brand : Wilwood
MPN : 140-12518
AlternatePartNumber : wil140-12518
UPC : 889545016703
Product Department : Brakes, Rotors & Pads
Product Category : Big Brake Kits
BoxQuantity : 1
Length : 14.9 inches
Width : 13.1 inches
Height : 13.1 inches
Weight : 48.0 lbs

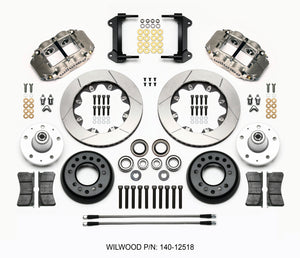

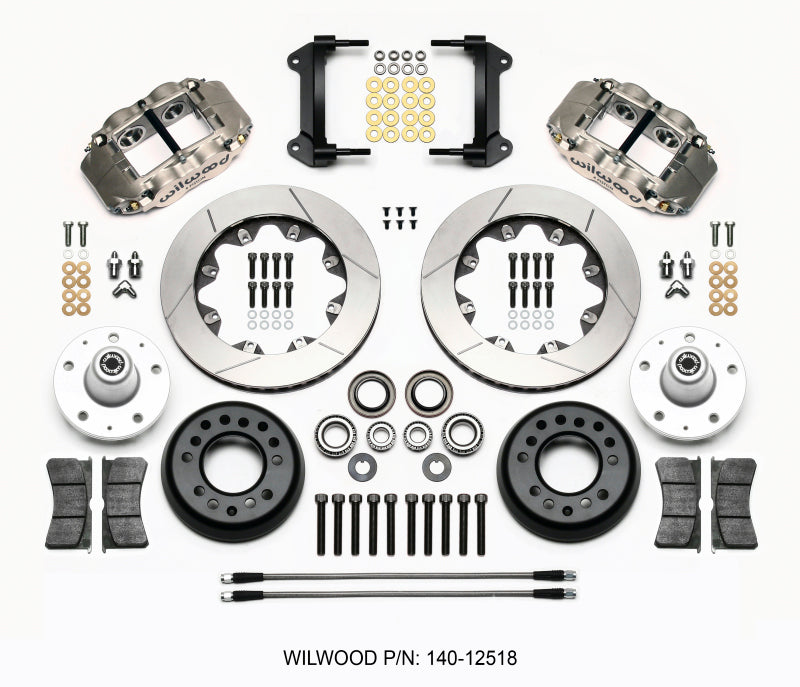

This kit is configured for dedicated road racing on all 1982-92 Camaros and Firebirds using the OE factory single piston caliper spindles that have been modified to accept the Wilwood caliper brackets. Four piston, nickel finish Quick-Silver FSL4R/ST calipers, with Thermlock® pistons and internal knock-back damping springs, are volume matched for system compatibility with either a factory power brake booster and master cylinder, or a manual balance bar style pedal with appropriately sized master cylinders. The kit includes two-piece 12.19” diameter Spec 37 alloy GT series directional vane rotors to comply with SCCA American Sedan rules, cross-overs into the NASA pony car categories, or any other sanction racing with racing with 16” or 17” wheels. Unsprung and rotating weight are minimized by using forged aluminum hats to mount the rotors to the forged aluminum hubs supplied with the kit. The kit also includes high-temp Wilwood race compound pads, machined billet radial mount caliper brackets, stainless steel braided flexlines, extra length wheel studs, hub bearings, grease seals, and all premium grade hardware. Detailed instructions illustrating the required spindle modifications can be found on page 2 of the assembly instructions.This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1988 | Chevrolet | Camaro | Base |
| 1982-1986 | Chevrolet | Camaro | Berlinetta |
| 1985-1990 | Chevrolet | Camaro | Iroc-Z |
| 1987 | Chevrolet | Camaro | LT |
| 1989-1992 | Chevrolet | Camaro | RS |
| 1992 | Chevrolet | Camaro | RS Heritage Edition |
| 1982-1987 | Chevrolet | Camaro | Sport |
| 1982-1987,1991-1992 | Chevrolet | Camaro | Z28 |
| 1992 | Chevrolet | Camaro | Z28 Heritage Edition |
| 1982 | Chevrolet | Camaro | Z28 Indianapolis 500 Pace Car |
| 1982-1992 | Pontiac | Firebird | Base |
| 1989-1992 | Pontiac | Firebird | Formula |
| 1982-1986 | Pontiac | Firebird | S/E |
| 1982-1992 | Pontiac | Firebird | Trans Am |
| 1989-1992 | Pontiac | Firebird | Trans Am GTA |
| 1989 | Pontiac | Firebird | Trans Am GTA SE |
Wilwood 140-12518 fits Forged Superlite 4R ST BB Front Kit Road Race 82-92 fits
Manufacturing Part Number (MPN)
140-12518
Price:
Sale price$2,979.72
