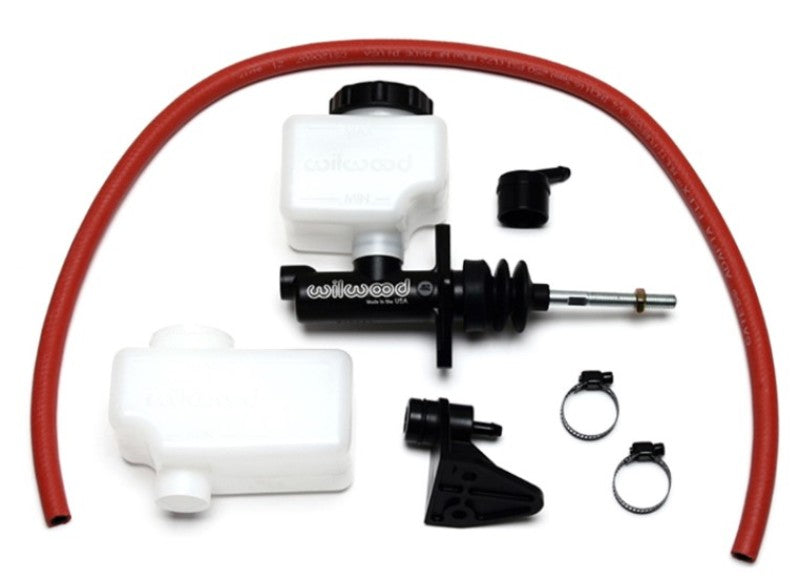

Wilwood 260-14787 Compact Remote M/C Kit 15/16in Bore Banjo Outlet w/Reservoir

Wilwood 260-14787 Wilwood Compact Remote M/C Kit 15/16in Bore Banjo Outlet w/Reservoir

Brand : Wilwood

MPN : 260-14787

AlternatePartNumber : wil260-14787

UPC : 889545082814

Product Department : Brakes, Rotors & Pads

Product Category : Brake Master Cylinder

BoxQuantity : 1

Length : 13.0 inches

Width : 10.0 inches

Height : 3.0 inches

Weight : 1.8 lbs

‘This new version of Wilwood's Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
