Wilwood 340-15072 fits Adjustable-Trubar Dual Pedal - Brake / Clutch - Fwd. Swi

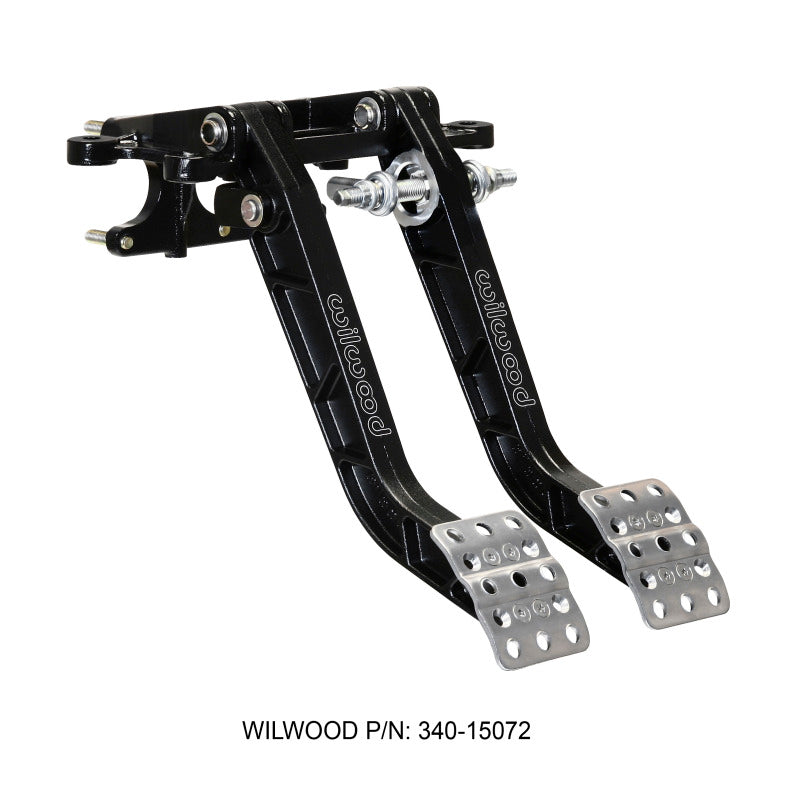

Wilwood 340-15072 Wilwood Adjustable-Trubar Dual Pedal - Brake / Clutch - Fwd. Swing Mount - 6.25:1

Brand : Wilwood

MPN : 340-15072

AlternatePartNumber : wil340-15072

UPC : 889545074093

Product Department : Interior Accessories

Product Category : Pedals

BoxQuantity : 1

Length : 15.5 inches

Width : 9.2 inches

Height : 6.1 inches

Weight : 4.8 lbs

Wilwood’s Tru-Bar balance bar system is now available in a Forward Swing mount pedal with a 6.25:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.
