Description

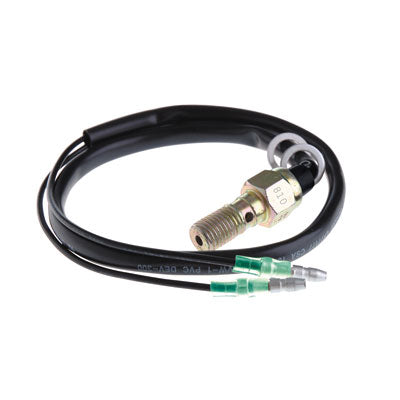

Vortex RS100 Brake Light Inline Pressure Switch 10mm X 1.25 Thread Pitch
Brand: Vortex
MPN: RS100
Depth: 6
Height: 1.5
Width: 5
Weight: 0.23
Size: 10mm X 1.25 Thread Pitch
Notes: *WARNING: Use caution when installing inline pressure switches on motorcycle models where the brake line fittings are on the inside of the master cylinder. The added length of the switch and wire assembly may result in a clearance issue with the swingarm. Always check for clearance over the entire range of suspension movement to ensure that no contact will occur. NEVER modify the rearset or brake system and NEVER use spacers to increase clearance. *Starting Pressure 3-8kgs, Max Pressure 250/kgs/cm3, Max Current 7A@12V *Since Vortex Racing rearsets are designed primarily for racing use we cannot guarantee that inline pressure switches can be installed on all models or applications.
