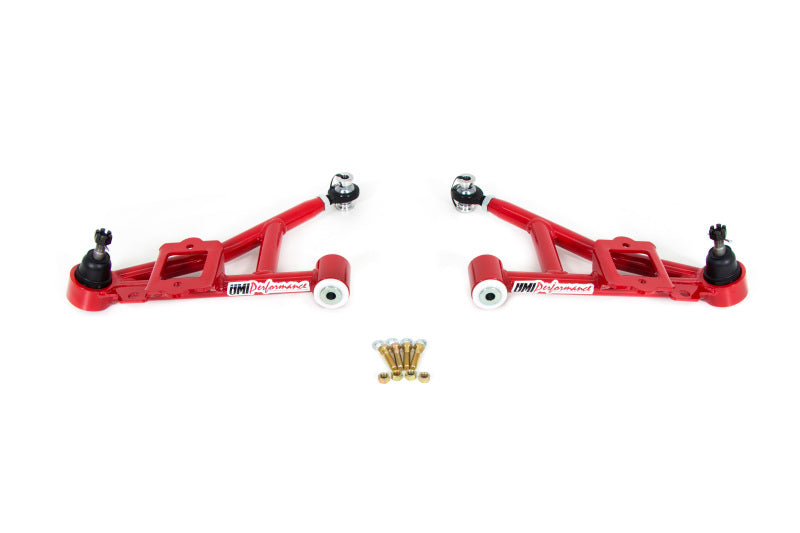

UMI Performance 2307-R 93-02 fits GM F-Body Tubular Front Lower A-Arms- Delrin S

UMI Performance 2307-R UMI Performance 93-02 fits GM F-Body Tubular Front Lower A-Arms- Delrin Street

Brand : UMI Performance

MPN : 2307-R

AlternatePartNumber : umi2307-R

UPC : 2307-R

Product Department : Suspension

Product Category : Control Arms

BoxQuantity : 1

Length : 18.0 inches

Width : 16.0 inches

Height : 8.0 inches

Weight : 23.0 lbs

Prop65 : Yes

UMI’s fabricated tubular a-arms provide a rock solid foundation for your 4th Gen’s front suspension. Our P/N 2307 a-arms are built to offer smooth travel, a precise steering feel, and an 8lb weight savings over stock. The DOM 1-1/4” diameter tubular sections are precision bent, CNC notched and TIG welded to the ball joint cup featuring our double strength configuration. UMI built 4130 CrMo tube adapters provide a durable attachment point for the high misalignment rod-end while the other side features an ultra smooth, bind free Delrin bushing. The combination of Delrin and rod end make for a performance oriented a-arm with street tendencies. The spring and shock attach to the arm via a tough 1/4” thick steel shock mount. The CNC machined ball joint cup is attached and a premium ball joint is installed. UMI’s tubular lower a-arms can be installed on the factory k-member or any aftermarket k-member as well as the factory spindle - making this a true bolt-on product. Manufactured with pride in Philipsburg, PA – USA.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1993-2002	Chevrolet	Camaro	Base
1993	Chevrolet	Camaro	Indianapolis 500 Pace Car
1996-1997	Chevrolet	Camaro	RS
1993-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
1993-2002	Pontiac	Firebird	Base
1993-2002	Pontiac	Firebird	Formula
1993-2002	Pontiac	Firebird	Trans Am
1994	Pontiac	Firebird	Trans Am GT
