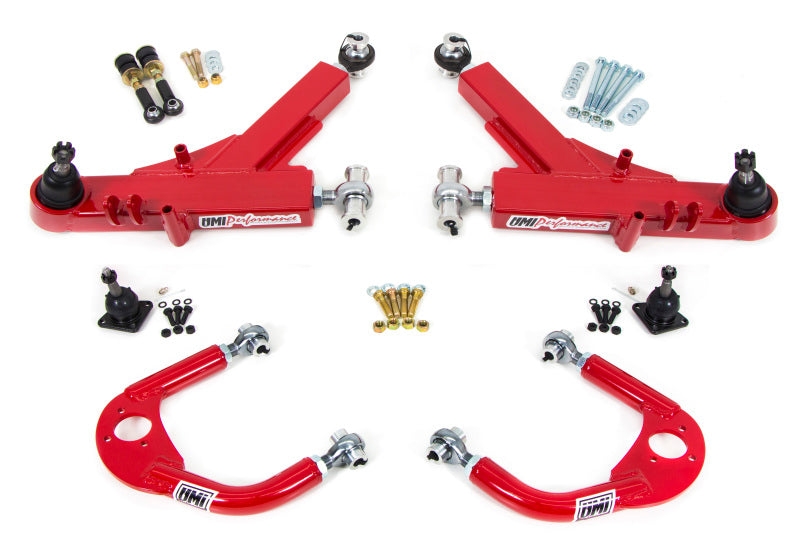

UMI Performance 230910-R 93-02 fits GM F-Body A-Arm Kit Road Race Boxed Lower +

UMI Performance 230910-R UMI Performance 93-02 fits GM F-Body A-Arm Kit Road Race Boxed Lower + Adj Upper

Brand : UMI Performance

MPN : 230910-R

AlternatePartNumber : umi230910-R

UPC : 230910-R

Product Department : Suspension

Product Category : Control Arms

BoxQuantity : 1

Length : 18.0 inches

Width : 16.0 inches

Height : 8.0 inches

Weight : 36.0 lbs

Prop65 : Yes

UMI’s heavy duty boxed arm kit with adjustable rod ends provides a rock-solid foundation for your autocross, road race or corner carving 4th Gen. The lower a-arms fully gusseted box tubing construction, while appearing heavy-duty, affords a five pound weight savings per set over factory lower a-arms. These arms have double shear sway bar mount tabs with endlink set included as well as factory GM pedestal location. Lower arms are compatible with factory, Koni, and other t-bar, stock mount shocks. Upper arms feature caster and camber adjustment with premium rod ends. Laser cut ball joint pads feature improved ball joint angle and increased caster (up to additional 2 degrees - varies by chassis) for lowered cars and come assembled with premium ball joints. UMI’s newest design features the most travel and clearance of any a-arm on the market and is a must for lowered vehicles. This A-arm kit is designed to work with the factory K-member, UMI k-members, and virtually all stock mounting point aftermarket K-members. Crafted with pride in Philipsburg, PA- USA.
Installation Instructions
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1993-2002	Chevrolet	Camaro	Base
1993	Chevrolet	Camaro	Indianapolis 500 Pace Car
1996-1997	Chevrolet	Camaro	RS
1993-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
1993-2002	Pontiac	Firebird	Base
1993-2002	Pontiac	Firebird	Formula
1993-2002	Pontiac	Firebird	Trans Am
1994	Pontiac	Firebird	Trans Am GT
