UMI Performance 231410-B 93-02 fits GM F-Body A-Arm Kit Double Shear Mount Boxed

UMI Performance 231410-B UMI Performance 93-02 fits GM F-Body A-Arm Kit Double Shear Mount Boxed Lower + Adj Upper

Brand : UMI Performance

MPN : 231410-B

AlternatePartNumber : umi231410-B

UPC : 231410-B

Product Department : Suspension

Product Category : Control Arms

BoxQuantity : 1

Length : 18.0 inches

Width : 16.0 inches

Height : 8.0 inches

Weight : 36.0 lbs

Prop65 : Yes

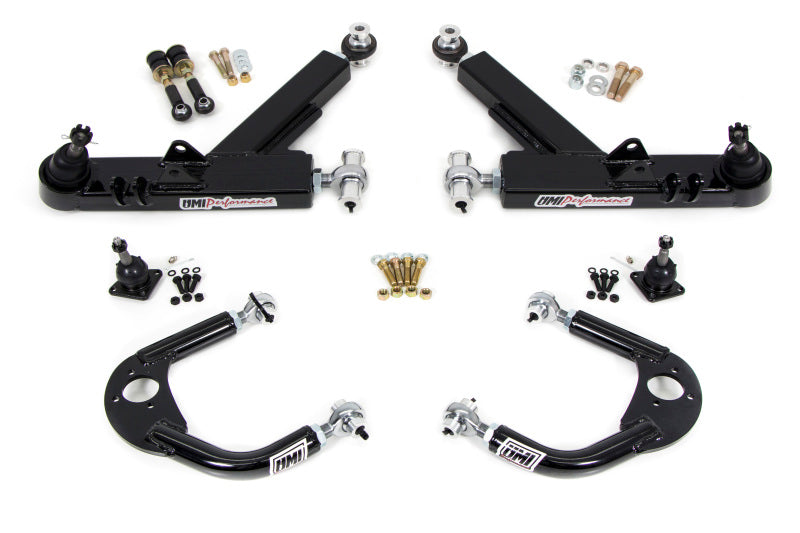

UMI’s heavy duty boxed arm kit with adjustable rod ends provides a rock-solid foundation for your autocross, road race or corner carving 4th Gen. The lower a-arms fully gusseted box tubing construction, while appearing heavy-duty, affords a five pound weight savings per set over factory lower a-arms. These arms have double shear sway bar mount tabs with endlink set included as well as a double shear shock mount to fit most 1/2" bolt race shocks. Lower arms are compatible with UMI/Strano, Viking, Penske, JRi, and most other race shocks. Upper arms feature caster and camber adjustment with premium rod ends. Laser cut ball joint pads feature improved ball joint angle and increased caster (up to additional 2 degrees - depending on chassis tolerances) for lowered cars and come assembled with premium ball joints. UMI’s newest design features the most travel and clearance of any a-arm on the market and is a must for lowered vehicles. This A-arm kit designed to work with the factory K-member, UMI k-members, and virtually all stock mounting point aftermarket K-members. Crafted with pride in Philipsburg, PA- USA.
Installation Instructions
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1993-2002	Chevrolet	Camaro	Base
1993	Chevrolet	Camaro	Indianapolis 500 Pace Car
1996-1997	Chevrolet	Camaro	RS
1993-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
1993-2002	Pontiac	Firebird	Base
1993-2002	Pontiac	Firebird	Formula
1993-2002	Pontiac	Firebird	Trans Am
1994	Pontiac	Firebird	Trans Am GT
