UMI Performance 2030-R 83-92 fits GM F-Body Tubular Front Steering Brace inWonde

UMI Performance 2030-R UMI Performance 83-92 fits GM F-Body Tubular Front Steering Brace inWonder Barin

Brand : UMI Performance

MPN : 2030-R

AlternatePartNumber : umi2030-R

UPC : 2030-R

Product Department : Fabrication

Product Category : Brackets

BoxQuantity : 1

Length : 36.3 inches

Width : 4.3 inches

Height : 4.3 inches

Weight : 5.3 lbs

Prop65 : Yes

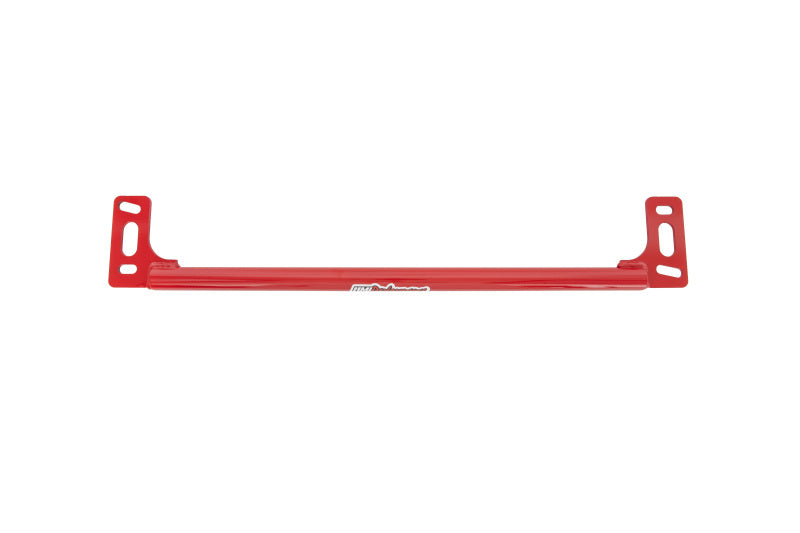

The 1983-1992 third generation steering brace, also known as the Wonder Bar, is designed to tie the front right and left subframe together. This tubular set-up bolts directly under the front sway bar, stiffening the front frame, resulting in improved handling, cornering and overall performance. The steering brace strengthens the chassis, taking stress from the steering box area which is well known as a weak area on any third generation F-Body. Steering brace is constructed of 0.250" 1018 mild steel CNC machined mounting points, 1.250" DOM steel tubing with a 0.120" wall fully MIG welded for extreme strength and lasting performance.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1988	Chevrolet	Camaro	Base
1983-1986	Chevrolet	Camaro	Berlinetta
1985-1990	Chevrolet	Camaro	Iroc-Z
1987	Chevrolet	Camaro	LT
1989-1992	Chevrolet	Camaro	RS
1992	Chevrolet	Camaro	RS Heritage Edition
1983-1987	Chevrolet	Camaro	Sport
1983-1987,1991-1992	Chevrolet	Camaro	Z28
1992	Chevrolet	Camaro	Z28 Heritage Edition
1983-1992	Pontiac	Firebird	Base
1989-1992	Pontiac	Firebird	Formula
1983-1986	Pontiac	Firebird	S/E
1983-1992	Pontiac	Firebird	Trans Am
1989-1992	Pontiac	Firebird	Trans Am GTA
1989	Pontiac	Firebird	Trans Am GTA SE
