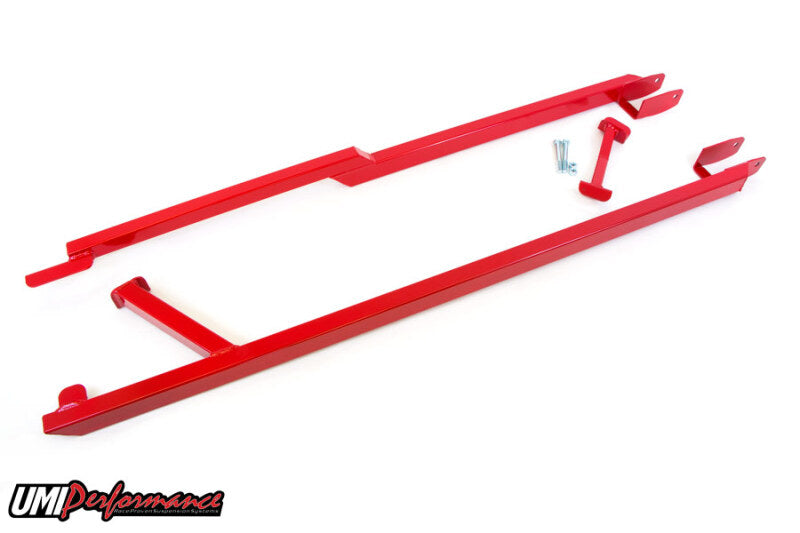

UMI Performance 2400-R 82-92 fits GM F-Body Boxed Style Weld-In Subframe Connect

UMI Performance 2400-R UMI Performance 82-92 fits GM F-Body Boxed Style Weld-In Subframe Connectors

Brand : UMI Performance

MPN : 2400-R

AlternatePartNumber : umi2400-R

UPC : 2400-R

Product Department : Suspension

Product Category : Subframes

BoxQuantity : 1

Length : 66.6 inches

Width : 13.6 inches

Height : 4.5 inches

Weight : 40.3 lbs

Prop65 : Yes

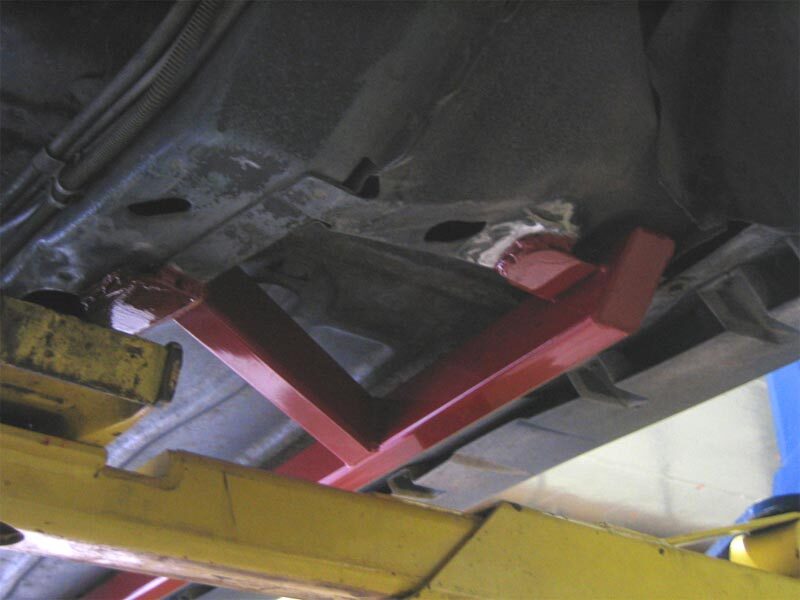

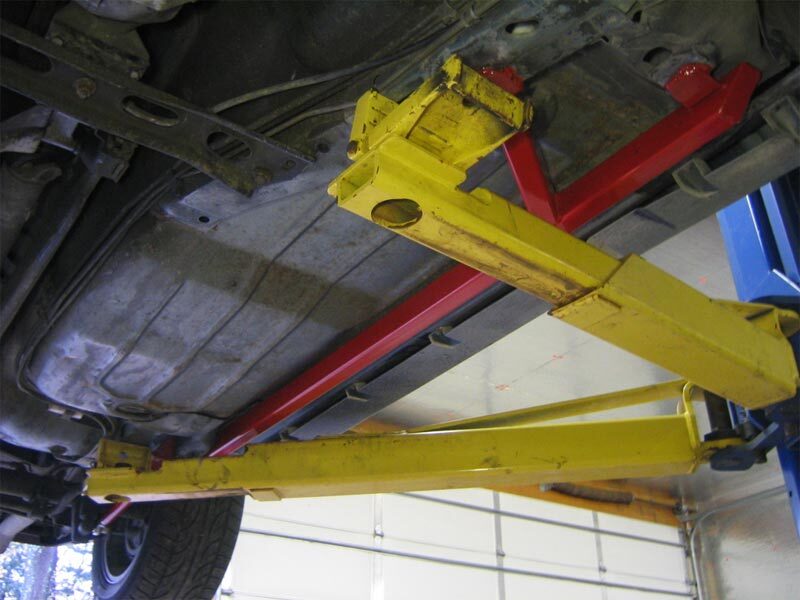

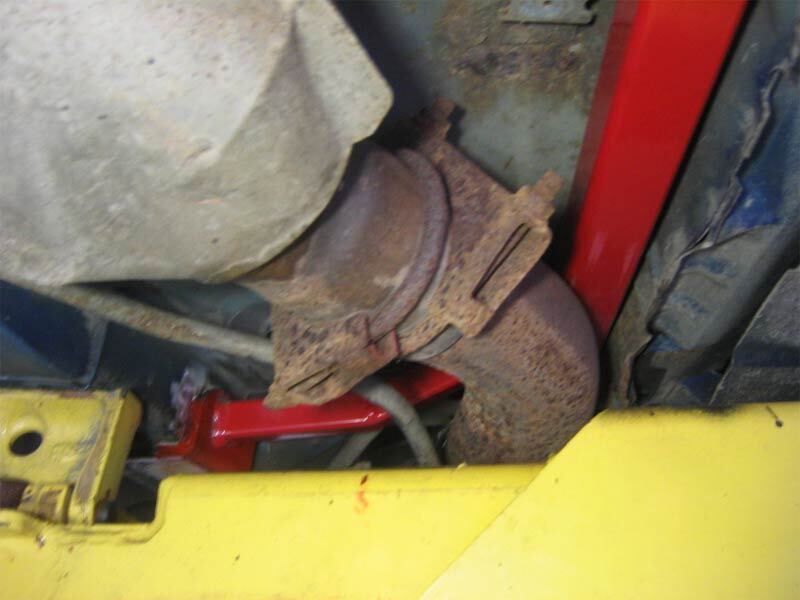

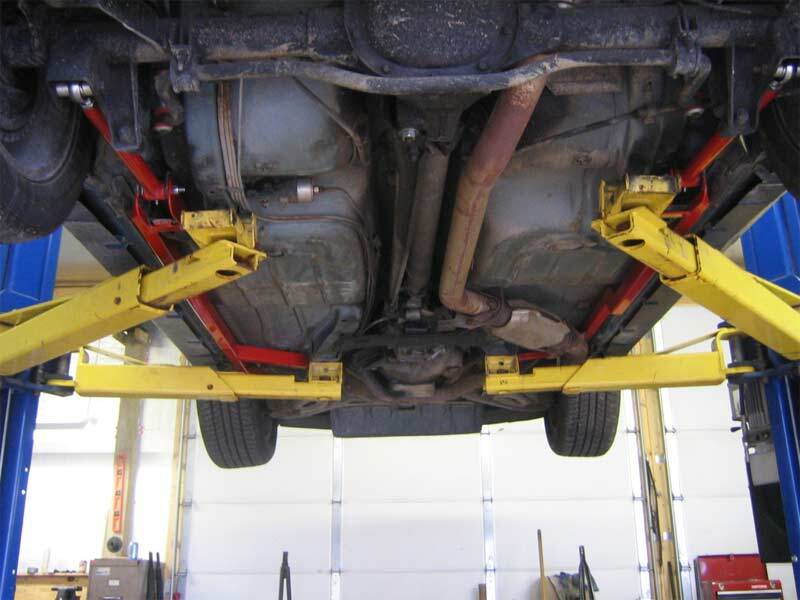

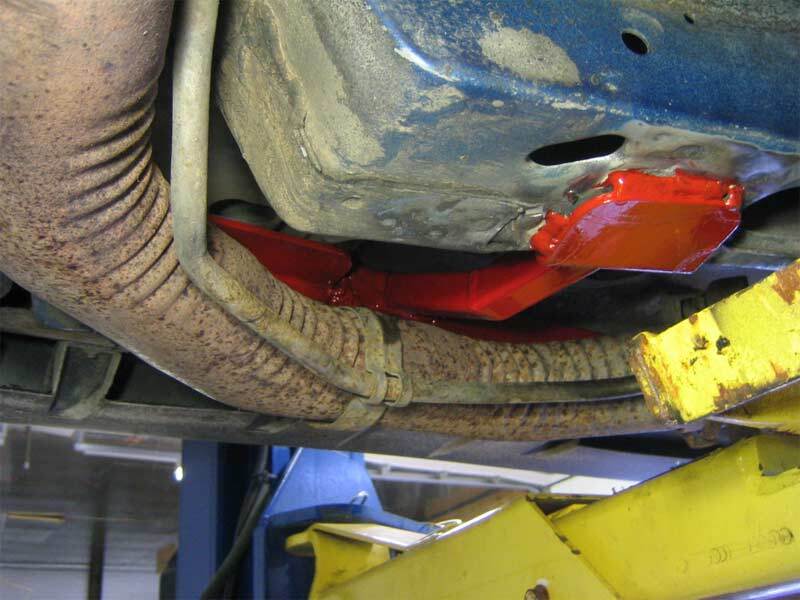

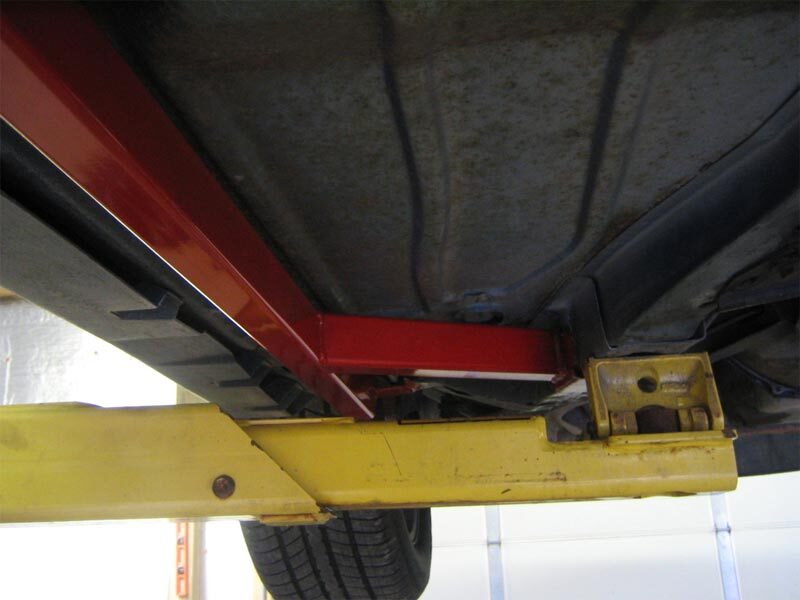

Minimize chassis flex and increase performance capabilities on your 1982-1992 GM F-Body with boxed style weld-in subframe connectors from UMI Performance. Subframe connectors are a must chassis upgrade when racing and hard driving habits are present. They greatly improve your car's handling ability while reducing t-top squeaks, dash rattles and quarter panel flexing. Subframe connectors essentially tie the front and rear steel subframes together, resulting in a stiffened and strengthened chassis; allowing better weight transfer and improved traction when launching. When strength is a concern, square tubing has greater torsion resistance over tubular designs. Subframes do not effect ground clearance and weld-in style requires no bolts to tighten ever and less chance of flex compared to bolt-in types. Our subframe connectors for the third generation F-Body are one of the strongest set-ups on the market. This unique design utilizes a 3 piece design, allowing (6) major weld points through out the chassis of the vehicle. Subframe connectors fit hard top, T-Top and convertible models. Features: - Built using 2.000" x 1.250" x 0.120" Mild Steel Rectangular Tubing - CNC Machined 0.188" Thick Mild Steel Mounting Points - Uses Control Arm Mounting Point for Increased Strength - Precision MIG Welded Construction - Brilliant Durable Powder Coat Finish Installation: Weld-in only, installs in approximately 2 hours, all necessary hardware and detailed installation instructions included.

This Part Fits:

Year	Make	Model	Submodel
1988	Chevrolet	Camaro	Base
1982-1986	Chevrolet	Camaro	Berlinetta
1985-1990	Chevrolet	Camaro	Iroc-Z
1987	Chevrolet	Camaro	LT
1989-1992	Chevrolet	Camaro	RS
1992	Chevrolet	Camaro	RS Heritage Edition
1982-1987	Chevrolet	Camaro	Sport
1982-1987,1991-1992	Chevrolet	Camaro	Z28
1992	Chevrolet	Camaro	Z28 Heritage Edition
1982	Chevrolet	Camaro	Z28 Indianapolis 500 Pace Car
1982-1992	Pontiac	Firebird	Base
1989-1992	Pontiac	Firebird	Formula
1982-1986	Pontiac	Firebird	S/E
1982-1992	Pontiac	Firebird	Trans Am
1989-1992	Pontiac	Firebird	Trans Am GTA
1989	Pontiac	Firebird	Trans Am GTA SE
