UMI Performance 4045-325-R 64-72 fits GM A-Body 1-3/8in Tubular Rear Drag Sway B

UMI Performance 4045-325-R UMI Performance 64-72 fits GM A-Body 1-3/8in Tubular Rear Drag Sway Bar-Bolt-on

Brand : UMI Performance

MPN : 4045-325-R

AlternatePartNumber : umi4045-325-R

UPC : 4045-325-R

Product Department : Suspension

Product Category : Sway Bars

BoxQuantity : 1

Length : 39.0 inches

Width : 20.0 inches

Height : 5.0 inches

Weight : 18.0 lbs

Prop65 : Yes

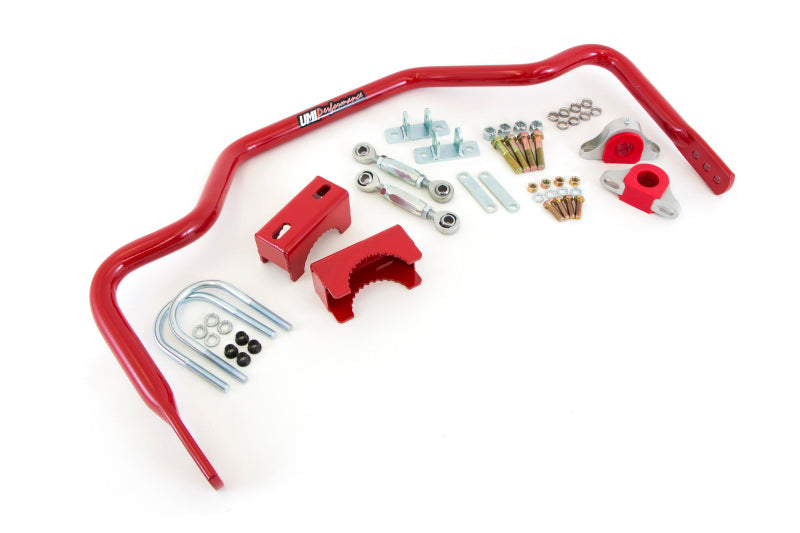

UMI's A-body Anti-Roll bar is designed to help your hot rod leave the line flat and straight. The bars are manufactured from light weight 1-3/8” diameter tubular steel and feature three different rates (street/strip, strip with drag radials and full slick settings). UMI's tried and true CNC machined clamping system allows differential housing mounting on 3" and 3.25" diameter housings. These can be bolted on, or welded for additional security. Since your car will be launching hard, we recommend welding. The double shear chassis mounts are held in place by four 3/8" fasteners and feature our exclusive reinforcement plate up top to help distribute the load. Drilling through the crossmember is required and a template /instructions are included. The house made hex adjuster allows pre-loading of the bar when used for drag applications so your car leaves straight no matter how much power you throw at it. This A-body drag bar is available in beautiful red or black powder coat. Manufactured with pride in Philipsburg, PA - USA.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1965-1967	Buick	Gran Sport	Base
1970-1972	Buick	GS	Base
1968-1969	Buick	GS 350	Base
1968-1969	Buick	GS 400	Base
1970-1972	Buick	GS 455	Base
1970	Buick	GS 455	GSX
1970,1972	Buick	Skylark	350
1964-1972	Buick	Skylark	Base
1968-1972	Buick	Skylark	Custom
1964-1969	Buick	Special	Base
1964-1967	Buick	Special	Deluxe
1964-1972	Buick	Sportwagon	Base
1966,1968-1969	Buick	Sportwagon	Custom
1967-1968	Chevrolet	Chevelle	300
1967-1969	Chevrolet	Chevelle	300 Deluxe
1964-1968,1970-1972	Chevrolet	Chevelle	Base
1967-1972	Chevrolet	Chevelle	Concours
1969-1972	Chevrolet	Chevelle	Concours Estate
1965-1967	Chevrolet	Chevelle	Deluxe
1969-1972	Chevrolet	Chevelle	Greenbrier
1968-1972	Chevrolet	Chevelle	Malibu
1968-1972	Chevrolet	Chevelle	Nomad
1964-1972	Chevrolet	Chevelle	SS
1964-1972	Chevrolet	El Camino	Base
1968-1972	Chevrolet	El Camino	Custom
1968-1972	Chevrolet	El Camino	SS
1964-1967	Chevrolet	Malibu	Base
1970-1972	Chevrolet	Monte Carlo	Base
1971-1972	GMC	Sprint	Base
1972	GMC	Sprint	Custom
1964-1971	Oldsmobile	442	Base
1964-1972	Oldsmobile	Cutlass	Base
1972	Oldsmobile	Cutlass	Cruiser
1964-1967	Oldsmobile	Cutlass	Holiday
1968,1971-1972	Oldsmobile	Cutlass	S
1967	Oldsmobile	Cutlass	Turnpike Cruiser
1964-1972	Oldsmobile	Vista Cruiser	Base
1964-1967	Oldsmobile	Vista Cruiser	Custom
1969-1972	Pontiac	Grand Prix	Base
1964-1972	Pontiac	GTO	Base
1970-1971	Pontiac	GTO	The Judge
1964-1972	Pontiac	LeMans	Base
1972	Pontiac	LeMans	Luxury
1969-1970	Pontiac	LeMans	Safari
1970-1972	Pontiac	LeMans	Sport
1971	Pontiac	LeMans	T37
1964-1970	Pontiac	Tempest	Base
1964-1969	Pontiac	Tempest	Custom
1970	Pontiac	Tempest	GT
1964-1969	Pontiac	Tempest	Safari
