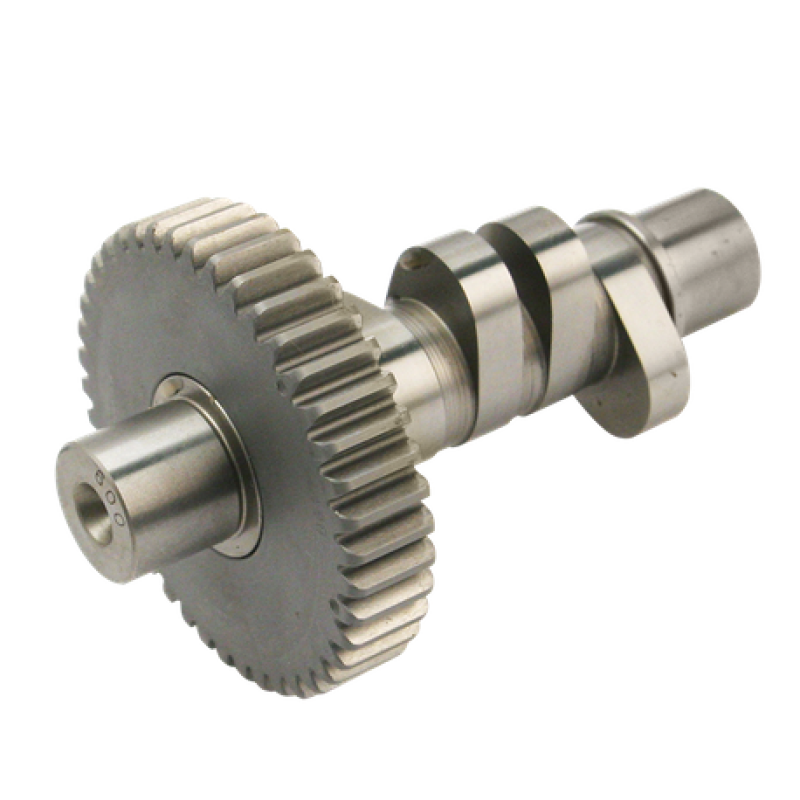

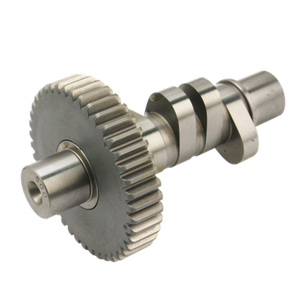

S&S 106-6028 Cycle 48-69 BT 513G Camshaft

S&S 106-6028 Cycle 48-69 BT 513G Camshaft

Brand: S&S Cycle

MPN: 106-6028

Product Department: Engine Components

Product Category: Camshafts

Box Quantity: 1

Weight: 1.8 lbs

Height: 3.25 Inches

Width: 3.25 Inches

Length: 6.13 Inches

CARB Status: Yes

This BT 513G Camshaft is for 1954-'84 big twins with either the Hydraulic Conversion kit or the Cylinder Head Replacement kit for panhead engines. It is also replacement parts for P-Series and SH-Series engines. Since this kit includes 1984-'99 style hydraulic lifters,the larger late style roller diameter requires that cams designed for 1984-'99 models must be used to achieve correct valve timing. When choosing a late style cam for this type of engine, be aware that, due to the approximate 1.5:1 rocker ratio of most aftermarket rocker arms for shovelheads, the total valve lift will be reduced by about 9 percent from the specified value.
