REDARC EPDK-001 Tow-Pro Encapsulated Protection Device

Roll over image to zoom in Click on image to zoom

REDARC EPDK-001 Tow-Pro Encapsulated Protection Device

Name: REDARC EPDK-001 Tow-Pro Encapsulated Protection Device
Brand: REDARC
SKU: RDCEPDK-001
Price: 49.5 USD
Availability: InStock

REDARC

Price:

$49.50

Stock:

Re-stocking soon

Quantity:

Economy delivery - on or before 7 business days - 17th

Standard delivery - on or before 5 business days

Expedited - on or before 3 day

Second Day - on or before 2 days

Next Day -on or before 1 day

REDARC EPDK-001 Tow-Pro Encapsulated Protection Device

Brand : REDARC

MPN : EPDK-001

AlternatePartNumber : rdcEPDK-001

UPC : 9338628005581

Product Department : Winches & Hitches

Product Category : Trailer Brakes

BoxQuantity : 1

Length : 8.5 inches

Width : 6.4 inches

Height : 1.0 inch

Weight : 0.17 lbs

Prop65 : Yes

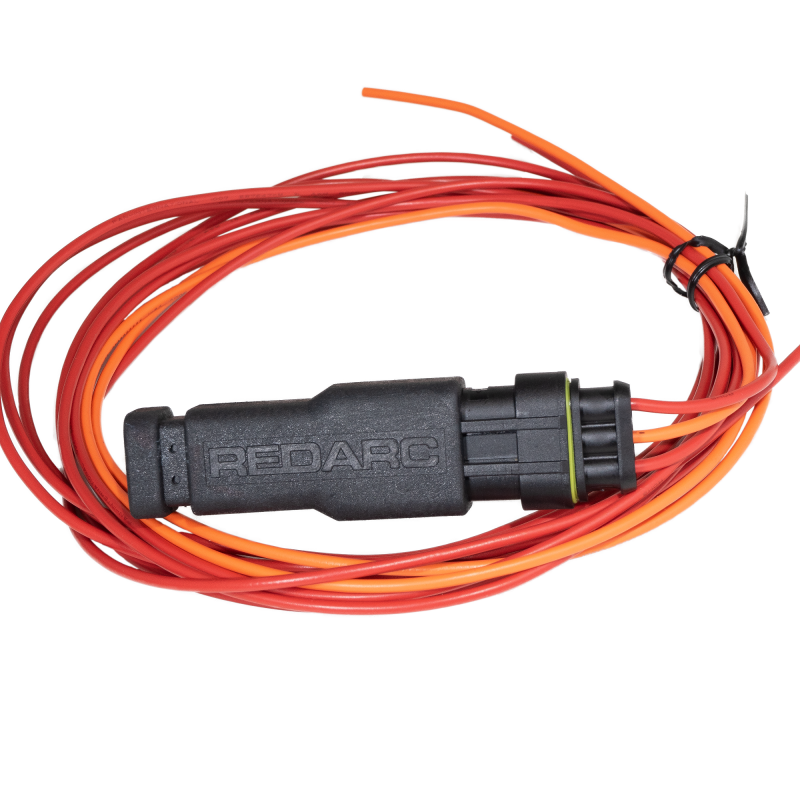

REDARC has released an Encapsulated Protection Device (EPDK-001). It is rated at 7 Amps for both 12 and 24V applications. It is totally encapsulated with sealed connections. The EPDK-001 has been designed to fit in the Trailer Stop Lamp feed to support the installation of Tow-Pro Electric Brake Controllers on vehicles where ?back-feed' of 12V (during Tow-Pro Manual Override) may interfere with the vehicle systems. When installed correctly, the EPDK-001 ensures correct Trailer braking and Stop Lamp operation when the vehicle brakes or the Tow-Pro Manual Override is used. It supports 12V and 24V applications capable of supporting a maximum continuous current of 7 Amps at a maximum ambient temperature of 850 deg C.
