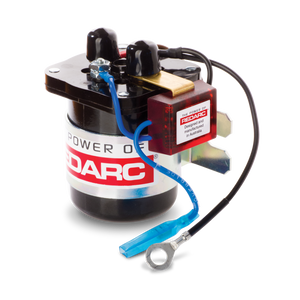

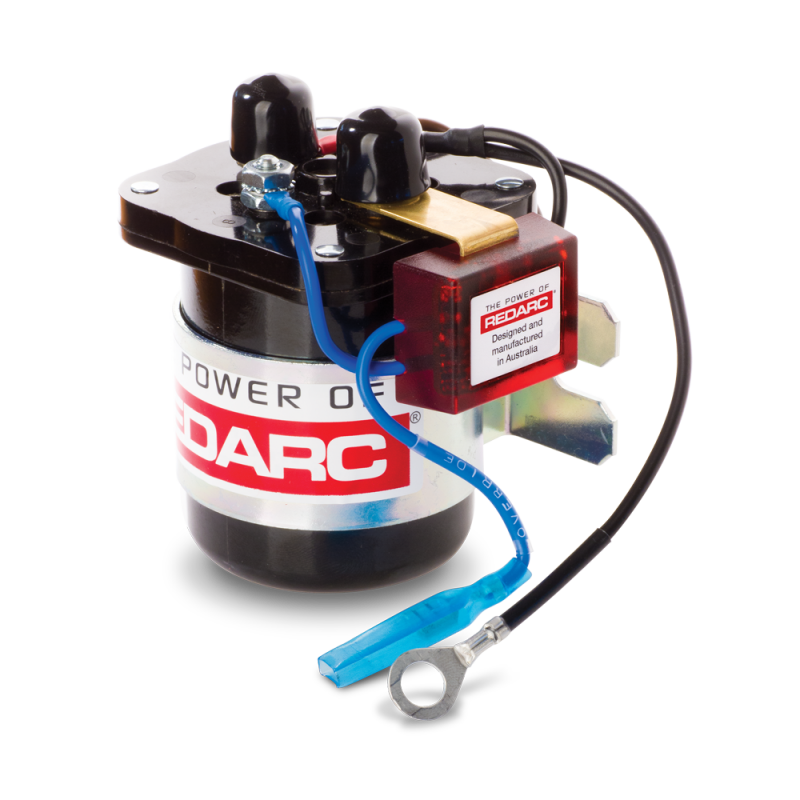

REDARC SBI224D Dual Sensing Smart Start Battery Isolator - 24V 200A

REDARC SBI224D Dual Sensing Smart Start Battery Isolator - 24V 200A

Brand : REDARC

MPN : SBI224D

AlternatePartNumber : rdcSBI224D

UPC : 9338628004492

Product Department : Batteries, Starting & Charging

Product Category : Battery Accessories

BoxQuantity : 1

Length : 3.7 inches

Width : 3.7 inches

Height : 3.7 inches

Weight : 1.7 lbs

Prop65 : Yes

?The REDARC Smart Start SBI224D is primarily used in commercial vehicles to protect the start battery from excessive discharge and provides 24V DC, while incorporating 200A of continuous ratings. This dual sensing model allows charging of batteries in instances when the auxiliary battery may also be charged by an external source, such as an external AC battery charger or solar panels. When the auxiliary battery reaches 26.4V from its external source, the SBI224D will then charge the start battery as well. Additionally, the microprocessor-controlled battery isolator has power saving technology that prevents the solenoid from generating high voltage transients. It is used rather than a diode battery isolator due to the voltage drop associated with diode type isolation. Advanced fault detection warns the user of over-voltage, voltage drop, and excessive current draw conditions.
Brochure - A general brochure describing a brand, company, product line. If brochure in question is for a specific product, use code PDB.
Installation Instructions
