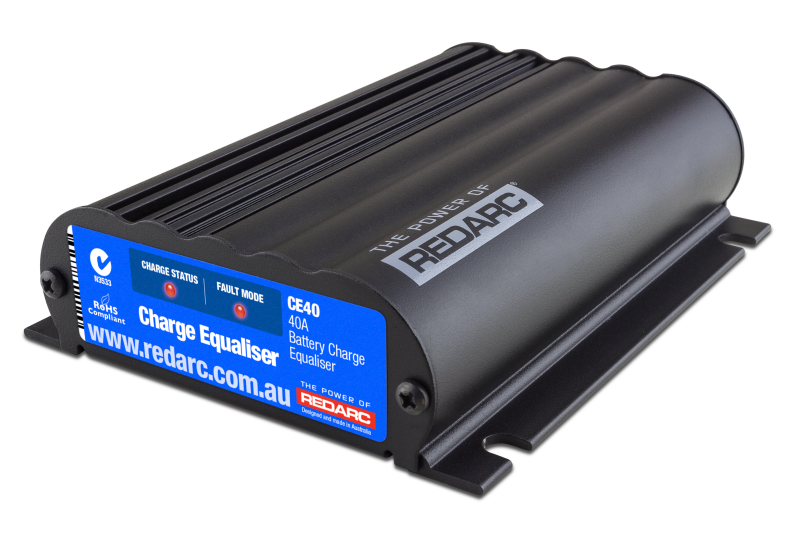

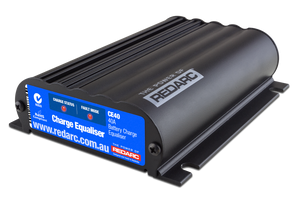

REDARC CE40S2 Charge Equalizer - 12V 40A

REDARC CE40S2 Charge Equalizer - 12V 40A

Brand : REDARC

MPN : CE40S2

AlternatePartNumber : rdcCE40S2

UPC : 9338628003303

Product Department : Batteries, Starting & Charging

Product Category : Battery Chargers

BoxQuantity : 1

Length : 9.1 inches

Width : 4.7 inches

Height : 2.8 inches

Weight : 1.2 lbs

Prop65 : Yes

The REDARC 40A Charge Equalizer (CE40S2) is designed to manage a high current, 12 volt supply in a 24-volt vehicle. It allows 12 volts to be tapped from the center of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries. REDARC Charge Equalizers draw their power from a battery, rather than from a current limited device. This allows for a much larger peak current draw. Because of their high peak current capability and fast transient response, REDARC Charge Equalizers are ideally suited to loads that require a safe, clean and stable 12 volt supply. In addition, the CE40S2 features input isolation which removes the need for an input relay or isolator, making it incredibly easy to install. REDARC Charge Equalizers have proven their reliability in commercial applications under the harshest conditions.
Brochure - A general brochure describing a brand, company, product line. If brochure in question is for a specific product, use code PDB.
Installation Instructions
