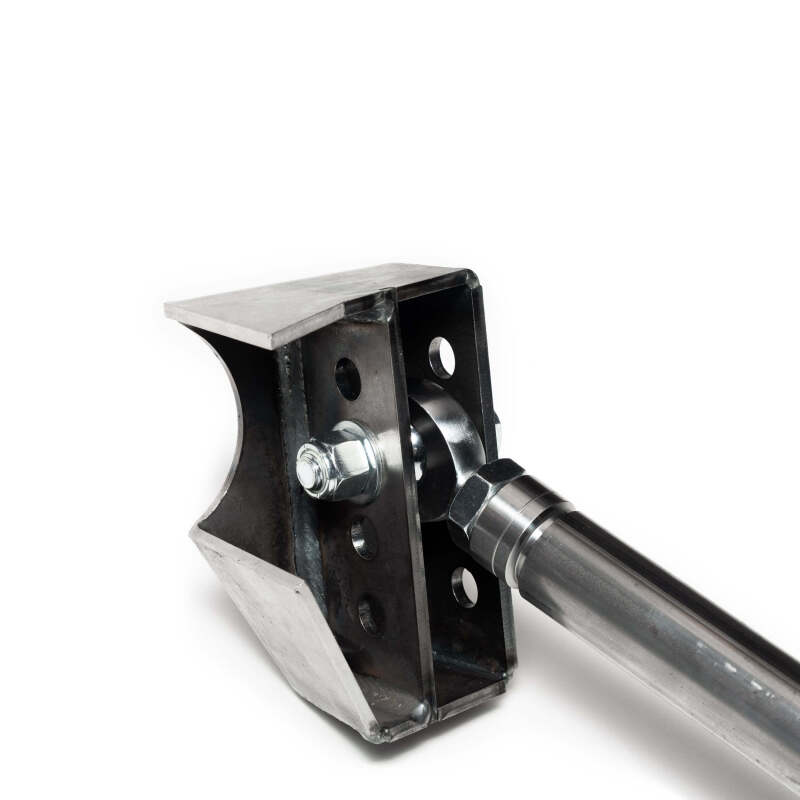

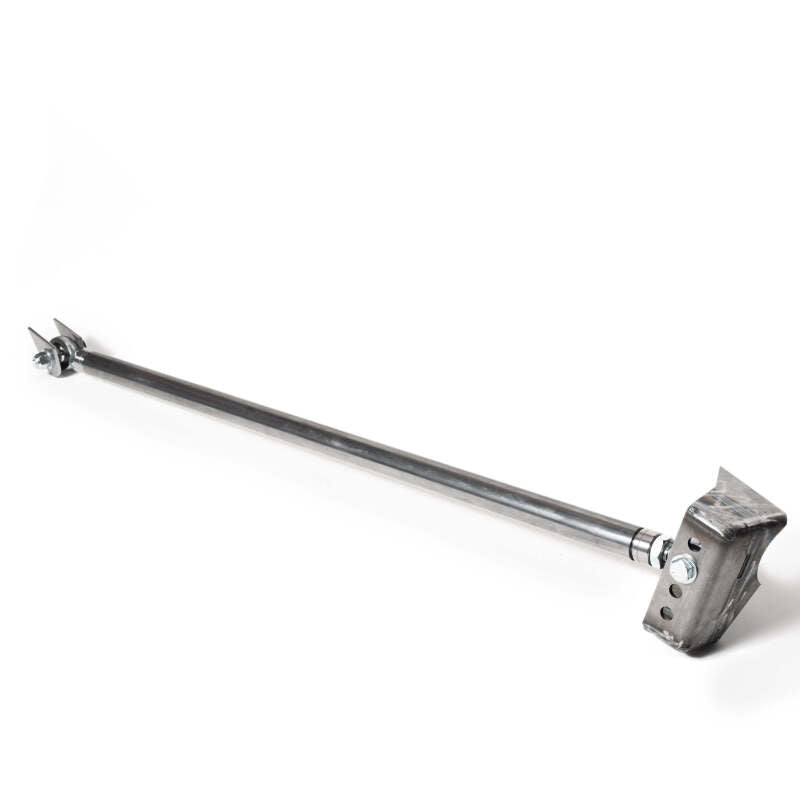

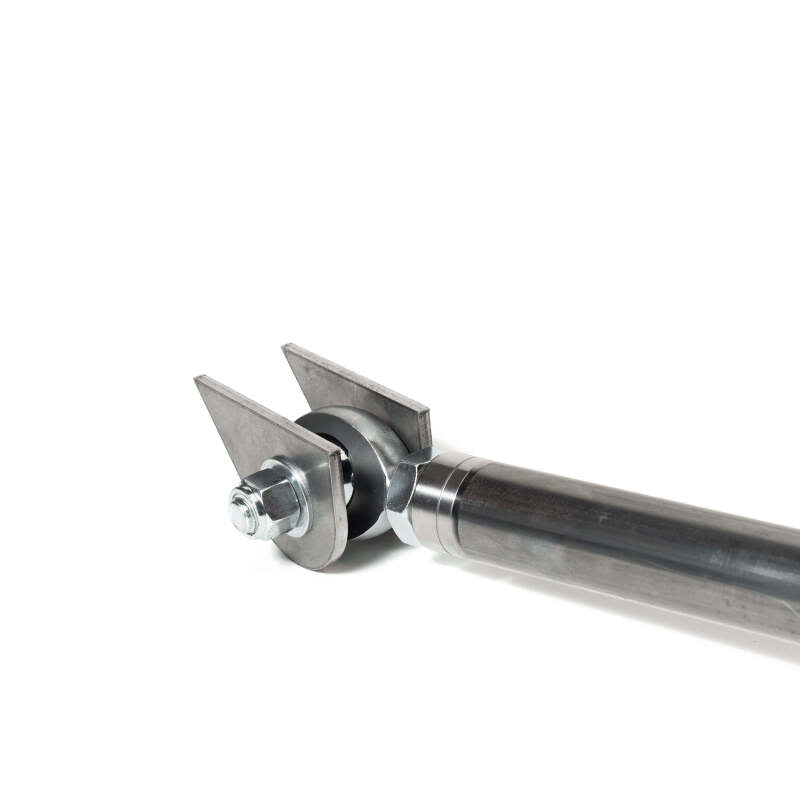

QA1 7838-1135 Universal Panhard Bar Kit

QA1 7838-1135 QA1 Universal Panhard Bar Kit

Brand : QA1

MPN : 7838-1135

AlternatePartNumber : qap7838-1135

UPC : 806990232922

Product Department : Suspension

Product Category : Panhard Bars

BoxQuantity : 1

Length : 40.0 inches

Width : 4.0 inches

Height : 4.0 inches

Weight : 10.5 lbs

Prop65 : Yes

PRODUCT OVERVIEW:QA1’s Universal Panhard Bar Kit offers a great solution for laterally locating your rear axle. This kit pairs perfectly with QA1 DIY 4-Link systems, and can also be adapted into any vehicle requiring a panhard bar.ADAPTABLE AND TUNABLEThis kit includes all a length of 1-1/4” diameter tubing that can be cut to length to work with most frame rail widths. An adjustable axle mount is included to be able to fine tune mounting height and roll center, and weldable tabs are included to locate the other end to the frame rail. Tube adapters, hardware, and QA1 rod ends complete the kit and offer on-car adjustability for easy tuning. FITMENT NOTESWelding requiredWorks with 3 in. axle tubes37” maximum installed length
Installation Instructions
